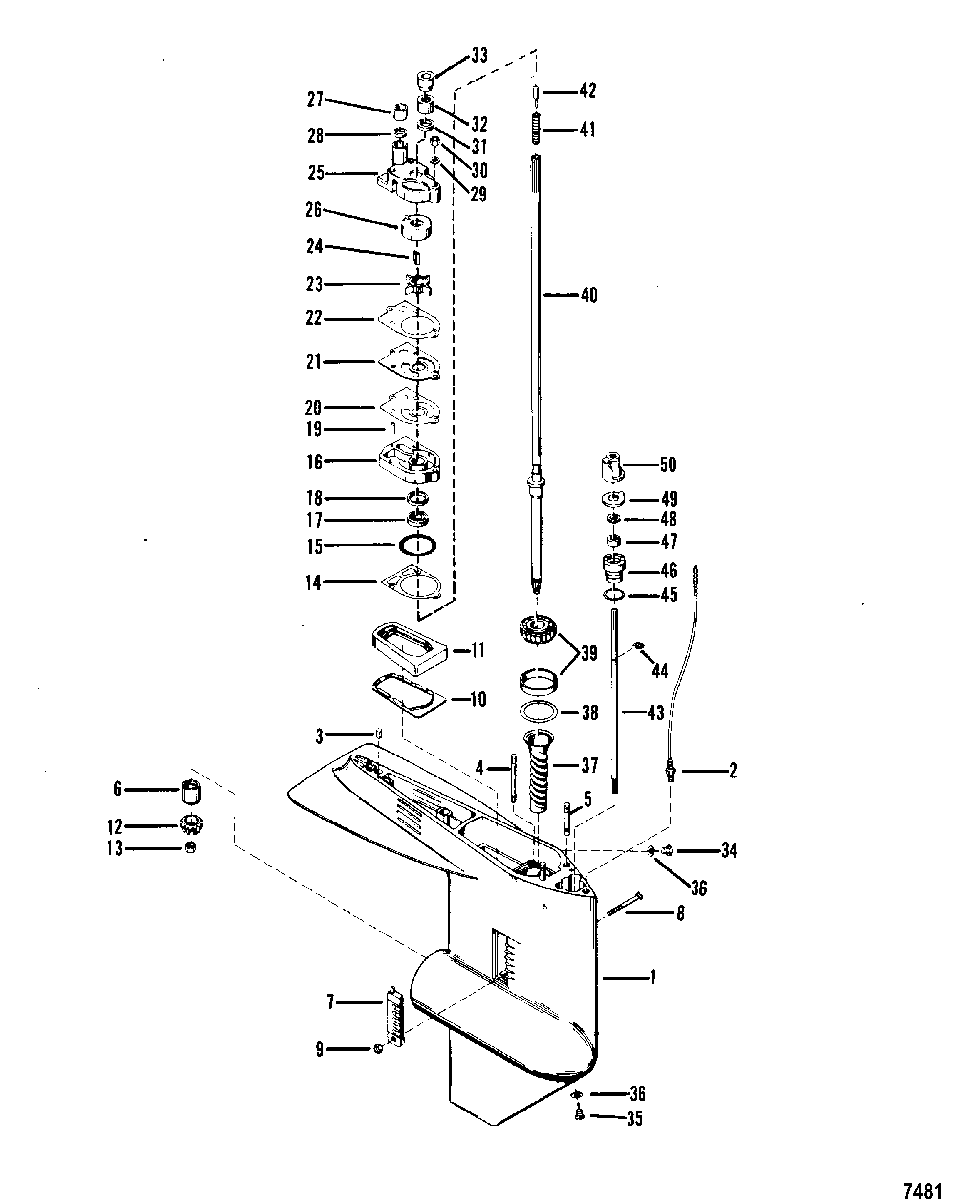

Gear Housing(Driveshaft) для Mariner - 45 (4 CYL.) 0A719281 & Up

  • №
    Артикул
    Название
  • -
    1643-9539A4 GEAR HOUSING ASSEMBLY, Short Shaft - Black
    GEAR HOUSING ASSEMBLY, Short Shaft - Black
  • -
    1643-9539A5 GEAR HOUSING ASSEMBLY, Long Shaft - Black
    GEAR HOUSING ASSEMBLY, Long Shaft - Black
  • -
    1643-9539A6 GEAR HUSING ASSEMBLY, Short Shaft - Gray
    GEAR HUSING ASSEMBLY, Short Shaft - Gray
  • -
    1643-9539A7 GEAR HOUSING ASSEMBLY, Long Shaft - Gray
    GEAR HOUSING ASSEMBLY, Long Shaft - Gray
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (Black)
    GEAR HOUSING ASSEMBLY
    (Black)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (Gray)
    GEAR HOUSING ASSEMBLY
    (Gray)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, Speedometer
    CONNECTOR ASSEMBLY, Speedometer
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530), Gear Housing
    PIN, Dowel (.187 x .530), Gear Housing
  • 4
    16-33778 STUD, Water Pump/Base (2.625 Inch)
    STUD, Water Pump/Base (2.625 Inch)
  • 5
    16-8M0034453 STUD, (.437-14/.437-20 x 2.190), Gear Housing
    STUD, (.437-14/.437-20 x 2.190), Gear Housing
  • 6
    31-62091T BEARING, Roller, Driveshaft
    BEARING, Roller, Driveshaft
  • 7
    72849A1 SCREEN ASSEMBLY, Water Intake
    SCREEN ASSEMBLY, Water Intake
  • 8
    10-36070 SCREW, (#10-32 x 1.250), Water Intake Screen to Gear Housing
    SCREW, (#10-32 x 1.250), Water Intake Screen to Gear Housing
  • 9
    11-859124 NUT, (#10-32) Stainless Steel, Water Intake Screen Screw
    NUT, (#10-32) Stainless Steel, Water Intake Screen Screw
  • 10
    92815 PLATE, Support - Exhaust Tube
    PLATE, Support - Exhaust Tube
  • 11
    37721001 SEAL, Exhaust Tube
    SEAL, Exhaust Tube
  • 12
    43-98097T GEAR, Pinion, Driveshaft
    GEAR, Pinion, Driveshaft
  • 13
    11-55910 NUT, (.437-20), Pinion Gear to Driveshaft
    NUT, (.437-20), Pinion Gear to Driveshaft
  • 14
    27-19552 GASKET, Water Pump Base
    GASKET, Water Pump Base
  • 15
    25-26722 O-RING
    O-RING
  • 16
    46-77177A1 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 17
    26-79831 SEAL, Oil
    SEAL, Oil
  • 18
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 19
    17-8M0084627 PIN, Dowel
    PIN, Dowel
  • 20
    27-19553 GASKET, Lower
    GASKET, Lower
  • 21
    32768 FACE PLATE
    FACE PLATE
  • 22
    27-19551 GASKET, Upper
    GASKET, Upper
  • 23
    47-89983T IMPELLER
    IMPELLER
  • 24
    28-8M0032837 KEY, Impeller Drive
    KEY, Impeller Drive
  • 25
    46-77822A1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 26
    48753 INSERT
    INSERT
  • 27
    26-38452 SEAL, Rubber
    SEAL, Rubber
  • 28
    12-38453 WASHER, Nylon
    WASHER, Nylon
  • 29
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Water Pump Body and Base Studs
    WASHER, (.281 x .500 x .060) Stainless Steel, Water Pump Body and Base Studs
  • 30
    11-8267119 NUT, (.250-28), Water Pump Body and Base Studs
    NUT, (.250-28), Water Pump Body and Base Studs
  • 31
    25-20273 O-RING, Rubber
    O-RING, Rubber
  • 32
    78654A1 SEAT ASSEMBLY, Driveshaft
    SEAT ASSEMBLY, Driveshaft
  • 33
    86304 SEAL, Splined - Driveshaft
    SEAL, Splined - Driveshaft
  • 34
    10-79953Q04 SCREW, (.375-16 x .250), Grease Filler
    SCREW, (.375-16 x .250), Grease Filler
  • 35
    22-8M0058389 SCREW, Magnetic, Drain
    SCREW, Magnetic, Drain
  • 36
    12-191833 WASHER, Fiber, Filler/Drain Screw
    WASHER, Fiber, Filler/Drain Screw
  • 37
    88181 SLEEVE, Lubrication - Driveshaft
    SLEEVE, Lubrication - Driveshaft
  • 38
    15-92881A1 SHIM SET, Bearing to Gear Housing(.002-3-5-10-20)
    SHIM SET, Bearing to Gear Housing(.002-3-5-10-20)
  • 39
    31-77420A1 BEARING ASSEMBLY, Roller, Tapered - Driveshaft
    BEARING ASSEMBLY, Roller, Tapered - Driveshaft
  • 40
    45-98179 DRIVESHAFT ASSEMLBY
    (Short Shaft)
    DRIVESHAFT ASSEMLBY
    (Short Shaft)
  • 40
    45-98180 DRIVESHAFT ASSEMBLY
    (Long Shaft)
    DRIVESHAFT ASSEMBLY
    (Long Shaft)
  • 41
    24-20254 SPRING, Compression - Driveshaft
    SPRING, Compression - Driveshaft
  • 42
    17-30545 PIN, Driveshaft
    PIN, Driveshaft
  • 43
    76063A1 SHAFT ASSEMBLY, Shift
    SHAFT ASSEMBLY, Shift
  • 44
    53-29641 E RING, Shift Shaft
    E RING, Shift Shaft
  • 45
    25-25439 O-RING, (.862 x .103), Shift Shaft Bushing
    O-RING, (.862 x .103), Shift Shaft Bushing
  • 46
    23-77631A2 BUSHING ASSEMBLY, Shift Shaft
    BUSHING ASSEMBLY, Shift Shaft
  • 47
    26-8164641 SEAL, Oil, Shift Shaft Bushing
    SEAL, Oil, Shift Shaft Bushing
  • 48
    12-77674 WASHER, Rubber - Shift Shaft Bushing
    WASHER, Rubber - Shift Shaft Bushing
  • 49
    78036 BASE, Reverse Locking
    (Non Power Trim)
    BASE, Reverse Locking
    (Non Power Trim)
  • 50
    43308T1 CAM, Reverse Locking
    (Non Power Trim)
    CAM, Reverse Locking
    (Non Power Trim)
  • -
    46-77177A3 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-85491A90 GASKET SET
    GASKET SET
