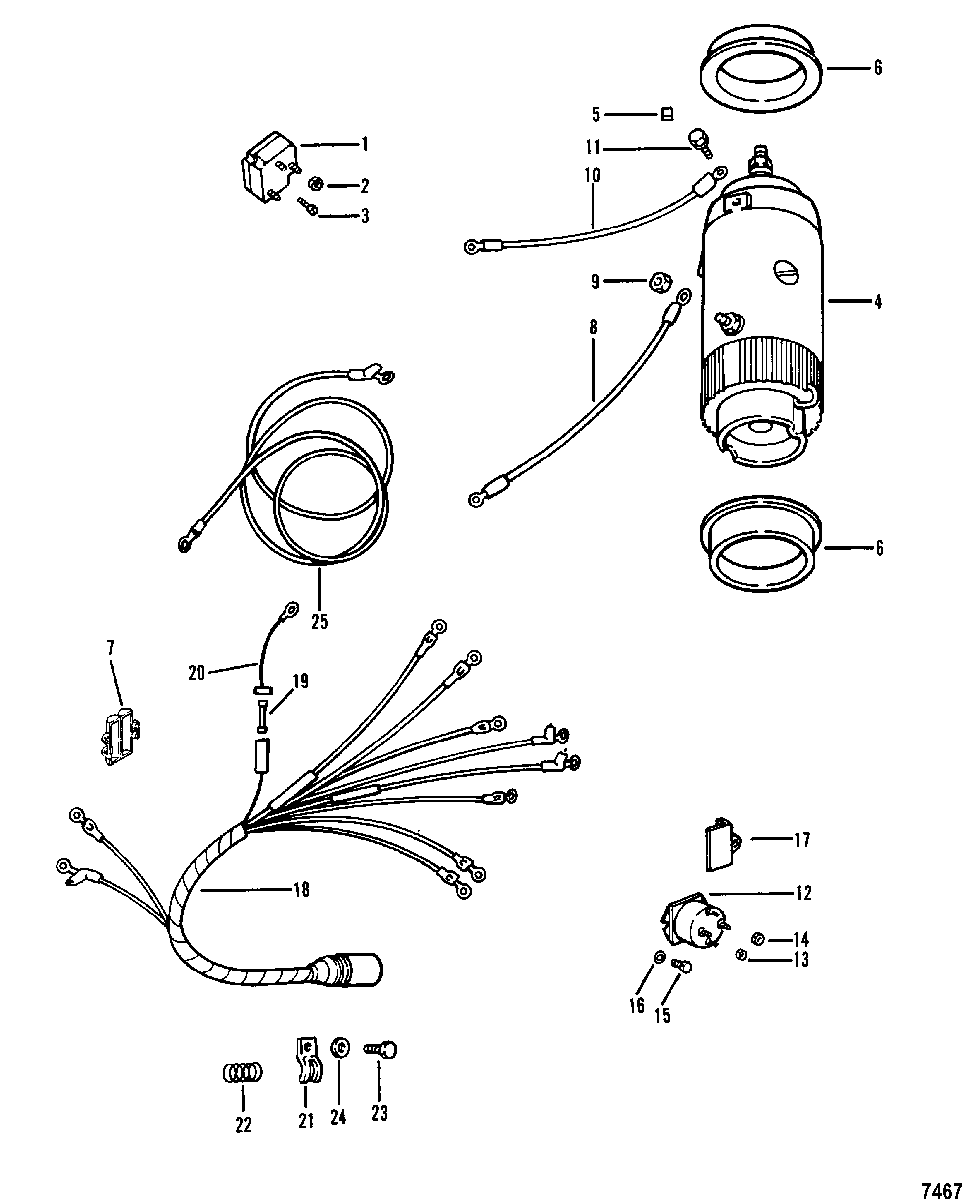

Electric Components для Mariner - 45 (4 CYL.) 0A719281 & Up
-
№АртикулНазвание
-
18M0058226 RECTIFIERRECTIFIER
-
211-45076 NUT, (#10-32) Brass, Rectifier TerminalNUT, (#10-32) Brass, Rectifier Terminal
-
310-20411 SCREW, (.190-24 x .62), Rectifier to Switch Box PlateSCREW, (.190-24 x .62), Rectifier to Switch Box Plate
-
450-898265005 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
58M0043376 STOP, Rubber - Starter MotorSTOP, Rubber - Starter Motor
-
623-8M0034918 COLLAR, Rubber - Starter Motor MountCOLLAR, Rubber - Starter Motor Mount
-
7134731 HOLDER, FuseHOLDER, Fuse
-
884-93389A1 WIRE, Starter Motor/Soleniod (Yellow)WIRE, Starter Motor/Soleniod (Yellow)
-
911-64015 NUT, (.250-20), Wire to Starter MotorNUT, (.250-20), Wire to Starter Motor
-
1084-93388A14 CABLE ASSEMBLY, Black, Starter Motor/Bracket (Black)CABLE ASSEMBLY, Black, Starter Motor/Bracket (Black)
-
1110-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Wire to Starter MotorSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Wire to Starter Motor
-
1289-96158T SOLENOID, StarterSOLENOID, Starter
-
1311-26419 NUT, (#8-32) Brass, Soleniod TerminalNUT, (#8-32) Brass, Soleniod Terminal
-
1411-94330 NUT, (.250-20) Brass, Solenoid TerminalNUT, (.250-20) Brass, Solenoid Terminal
-
1510-41508 SCREW, (.250-20 x .500) Stainless Steel, Soleniod to Support BracketSCREW, (.250-20 x .500) Stainless Steel, Soleniod to Support Bracket
-
1613-26992 LOCKWASHER, (.250) Stainless Steel, Starter Solenoid ScrewLOCKWASHER, (.250) Stainless Steel, Starter Solenoid Screw
-
1785-97861 INSULATOR, Starter SolenoidINSULATOR, Starter Solenoid
-
1884-96277A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1988-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2084-95084A2 CABLE ASSEMBLY, FuseCABLE ASSEMBLY, Fuse
-
2188751 CLAMP, Wiring HarnessCLAMP, Wiring Harness
-
2224-28357 SPRING, Wiring HarnessSPRING, Wiring Harness
-
2310-23702 SCREW, (.190-32 x 1.12), Wiring Harness ClampSCREW, (.190-32 x 1.12), Wiring Harness Clamp
-
2412-72761 WASHER, (.203 x .562 x .060) Stainless Steel, Wiring Harness Clamp ScrewWASHER, (.203 x .562 x .060) Stainless Steel, Wiring Harness Clamp Screw
-
2584-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2584-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
