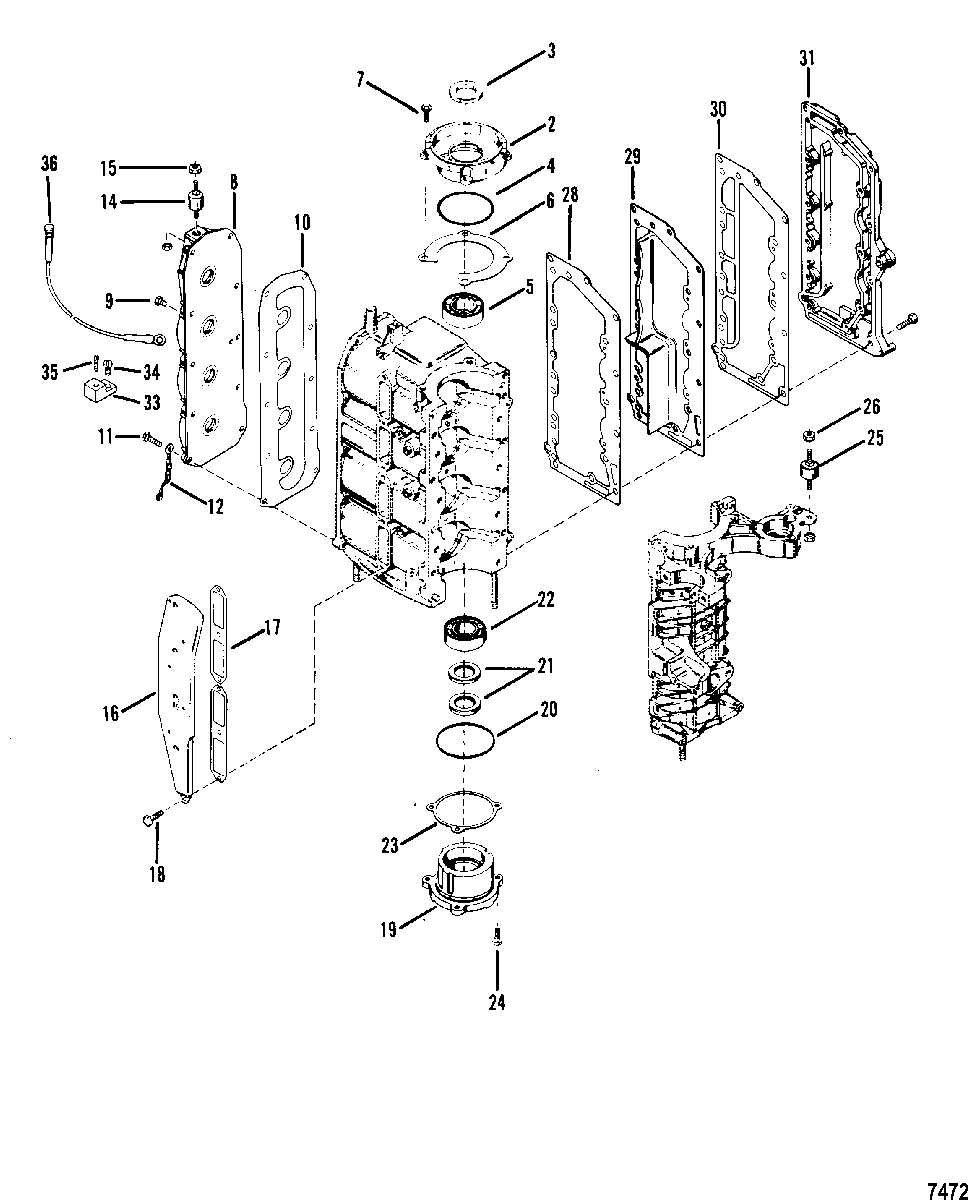

End Caps and Exhaust Cover для Mariner - 45 (4 CYL.) 0A719281 & Up

  • №
    Артикул
    Название
  • 2
    1160-5826A2 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 3
    26-41953 SEAL, Upper End Cap
    SEAL, Upper End Cap
  • 4
    25-20081 O-RING, Upper End Cap
    O-RING, Upper End Cap
  • 5
    30-63742T BEARING, Ball, Upper End Cap
    BEARING, Ball, Upper End Cap
  • 6
    15-72538A1 SHIM, Upper End Cap (.005-10)
    SHIM, Upper End Cap (.005-10)
  • 7
    10-824941 SCREW, Upper End Cap (0.75 Inch)
    SCREW, Upper End Cap (0.75 Inch)
  • 8
    1017-8360A1 COVER ASSEMBLY, Cylinder Block
    COVER ASSEMBLY, Cylinder Block
  • 9
    22-328022 PLUG, Pipe (.125-27), Cylinder Block Cover
    (Manual Only)
    PLUG, Pipe (.125-27), Cylinder Block Cover
    (Manual Only)
  • 10
    27-437772 GASHET, Cylinder Block Cover
    GASHET, Cylinder Block Cover
  • 11
    10-76630 SCREW, Cylinder Block Cover (1 Inch)
    SCREW, Cylinder Block Cover (1 Inch)
  • 12
    46933A7 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 14
    90435 MOUNT, Rubber - Cylinder Block Cover
    MOUNT, Rubber - Cylinder Block Cover
  • 15
    11-20184 NUT, (1/4-28X7/32), Rubber Mount
    NUT, (1/4-28X7/32), Rubber Mount
  • 16
    18827A1 COVER ASSEMBLY, Transfer Port
    COVER ASSEMBLY, Transfer Port
  • 17
    27-279361 GASKET, Transfer Port Cover
    GASKET, Transfer Port Cover
  • 18
    10-20540 SCREW, Transfer Port Cover (0.625 Inch)
    SCREW, Transfer Port Cover (0.625 Inch)
  • 19
    1158-6635T1 END CAP ASSEMBLY, Lower
    END CAP ASSEMBLY, Lower
  • 20
    25-20081 O-RING, Lower End Cap
    O-RING, Lower End Cap
  • 21
    26-41953 SEAL, Lower End Cap
    SEAL, Lower End Cap
  • 22
    30-63742T BEARING, Ball, Lower End Cap
    BEARING, Ball, Lower End Cap
  • 23
    15-20085A1 SHIM SET, Lower End Cap (.005-10)
    SHIM SET, Lower End Cap (.005-10)
  • 24
    10-29256 SCREW, (.312-18 x .875), Lower End Cap
    SCREW, (.312-18 x .875), Lower End Cap
  • 25
    90435 MOUNT, Rubber - Crankcase
    MOUNT, Rubber - Crankcase
  • 26
    11-20184 NUT, (1/4-28X7/32), Rubber Mount
    NUT, (1/4-28X7/32), Rubber Mount
  • 28
    27-854913 GASKET, Cylinder Block to Baffle Plate
    GASKET, Cylinder Block to Baffle Plate
  • 29
    90421T01 PLATE, Baffle - Exhaust Manifold
    PLATE, Baffle - Exhaust Manifold
  • 30
    27-854924 GASKET, Baffle Plate to Exhaust Cover
    GASKET, Baffle Plate to Exhaust Cover
  • 31
    77381 COVER, Exhaust Manifold
    COVER, Exhaust Manifold
  • 32
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, Manifold Cover to Cylinder Block
    SCREW, (.312-18 x 1.00) Stainless Steel, Manifold Cover to Cylinder Block
  • 32
    10-38837 SCREW, (.312-18 x 1.12), Manifold Cover to Cylinder Block
    SCREW, (.312-18 x 1.12), Manifold Cover to Cylinder Block
  • 33
    86-45915 TERMINAL BLOCK
    (Electric Only)
    TERMINAL BLOCK
    (Electric Only)
  • 34
    10-62568 SCREW, (#10-16 x .375), Terminal Block
    (Electric Only)
    SCREW, (#10-16 x .375), Terminal Block
    (Electric Only)
  • 35
    10-72169 SCREW, (#10-24 x .50), Terminal Block
    (Electric Only)
    SCREW, (#10-24 x .50), Terminal Block
    (Electric Only)
  • 36
    87-96829A1 SWITCH ASSEMBLY, Temperature, 260 Tan
    (Electric Only)
    SWITCH ASSEMBLY, Temperature, 260 Tan
    (Electric Only)
  • 36
    87-16775A1 TEMPERATURE SWITCH, 300 Tan and Green
    (Electric Only)
    TEMPERATURE SWITCH, 300 Tan and Green
    (Electric Only)
  • -
    27-85491A90 GASKET SET
    GASKET SET
