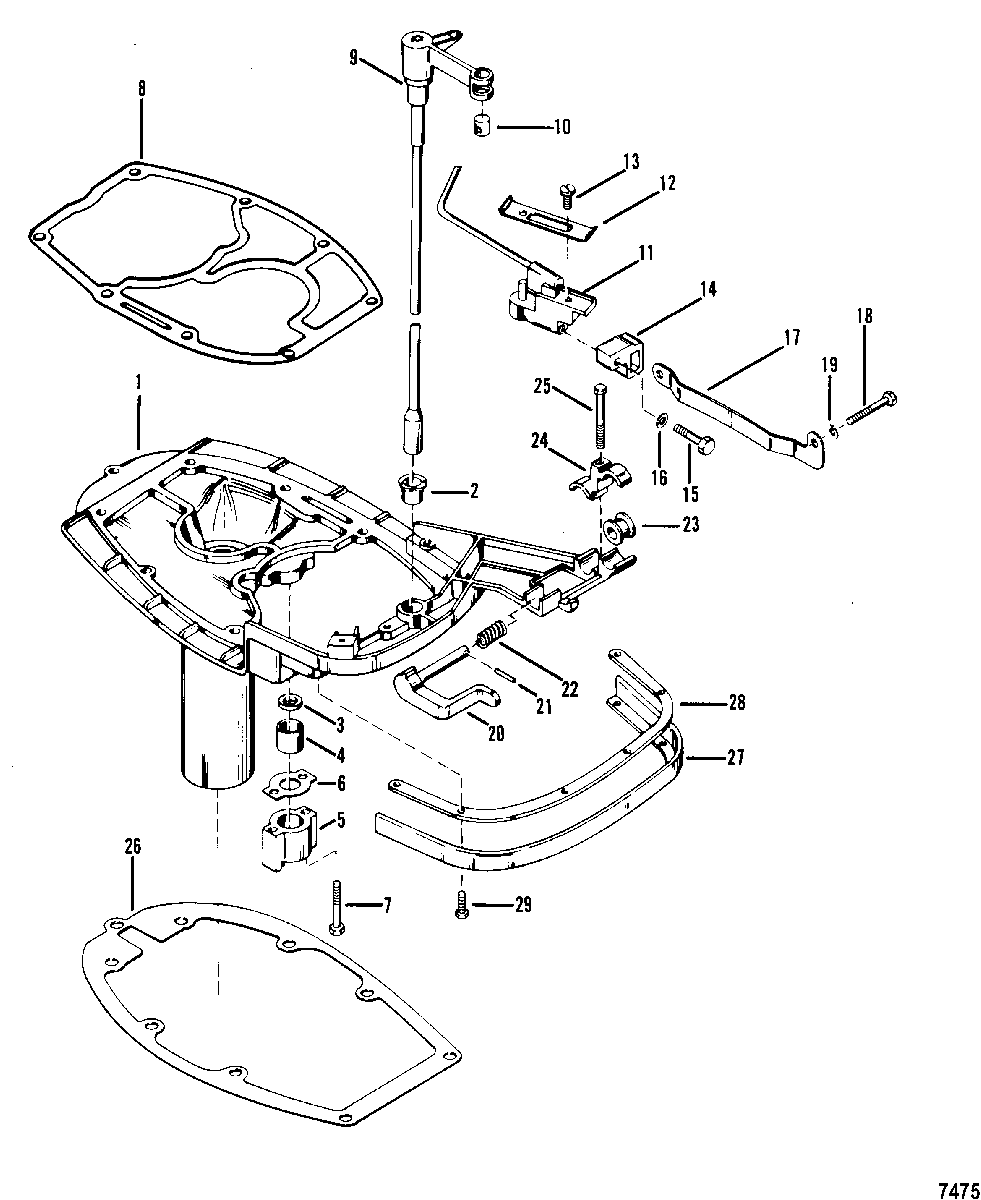

Exhaust Plate and Shift Linkage для Mariner - 45 (4 CYL.) 0A719281 & Up
-
№АртикулНазвание
-
142819A2 PLATE ASSEMLBY, Exhaust ExtensionPLATE ASSEMLBY, Exhaust Extension
-
223-27132 BUSHING, Exhaust Extension PlateBUSHING, Exhaust Extension Plate
-
312-38453 WASHER, Nylon - Water Inlet TubeWASHER, Nylon - Water Inlet Tube
-
426-38452 SEAL, Rubber - Water TubeSEAL, Rubber - Water Tube
-
579799 HOUSING, Water Inlet Tube SealHOUSING, Water Inlet Tube Seal
-
627-797971 GASKET, HousingGASKET, Housing
-
710-79798 SCREW, (#10-32 x 1.380), Housing to Exhaust Plate (1.375 Inch)SCREW, (#10-32 x 1.380), Housing to Exhaust Plate (1.375 Inch)
-
827-796501 GASKET, PowerheadGASKET, Powerhead
-
976632A3 SHIFT SHAFT ASSEMBLY, Upper Short ShaftSHIFT SHAFT ASSEMBLY, Upper Short Shaft
-
976632A4 SHIFT SHAFT ASSEMBLY, Upper Long ShaftSHIFT SHAFT ASSEMBLY, Upper Long Shaft
-
1060572 BARREL, Nylon - Upper Shift ShaftBARREL, Nylon - Upper Shift Shaft
-
1174739A3 ACTUATOR ASSEMBLY, Shift ControlACTUATOR ASSEMBLY, Shift Control
-
1224-37934 SPRING, Shift CableSPRING, Shift Cable
-
1310-38069 SCREW, Spring to ActuatorSCREW, Spring to Actuator
-
1437932 BEARING, Nylon - Shift Control ActuatorBEARING, Nylon - Shift Control Actuator
-
1510-36137 SCREW, (.250-28 x 1.00), Bearing to Shift Control ActuatorSCREW, (.250-28 x 1.00), Bearing to Shift Control Actuator
-
1613-21272 LOCKWASHER, (.250), Bearing ScrewLOCKWASHER, (.250), Bearing Screw
-
1737935 RAIL, Shift Control BearingRAIL, Shift Control Bearing
-
1810-69028 SCREW, (.250-28 x .750) Stainless Steel, Rail to Exhaust Manifold CoverSCREW, (.250-28 x .750) Stainless Steel, Rail to Exhaust Manifold Cover
-
1913-26992 LOCKWASHER, (.250) Stainless Steel, Rail ScrewLOCKWASHER, (.250) Stainless Steel, Rail Screw
-
2059037A2 LEVER, Throttle and Shift CablesLEVER, Throttle and Shift Cables
-
2117-239281 PIN, Roll - Quick Disconnect LeverPIN, Roll - Quick Disconnect Lever
-
2224-38005 SPRING, Quick Disconnect LeverSPRING, Quick Disconnect Lever
-
2323-37927 BUSHING, Nylon, Nylon - Quick Disconnect LeverBUSHING, Nylon, Nylon - Quick Disconnect Lever
-
2437926 RETAINER, Nylon BearingRETAINER, Nylon Bearing
-
2510-37923 SCREW, (.250-28 x 1.250), Bearing RetainerSCREW, (.250-28 x 1.250), Bearing Retainer
-
2627-385011 GASKET, Exhaust Extension PlateGASKET, Exhaust Extension Plate
-
2738156 SEAL, Rubber - Exhaust Extension PlateSEAL, Rubber - Exhaust Extension Plate
-
2899136 STRIP, Rubber SealSTRIP, Rubber Seal
-
2910-37571 SCREW, (.190-32 x .500), Retaining StripSCREW, (.190-32 x .500), Retaining Strip
-
-27-85491A90 GASKET SETGASKET SET
