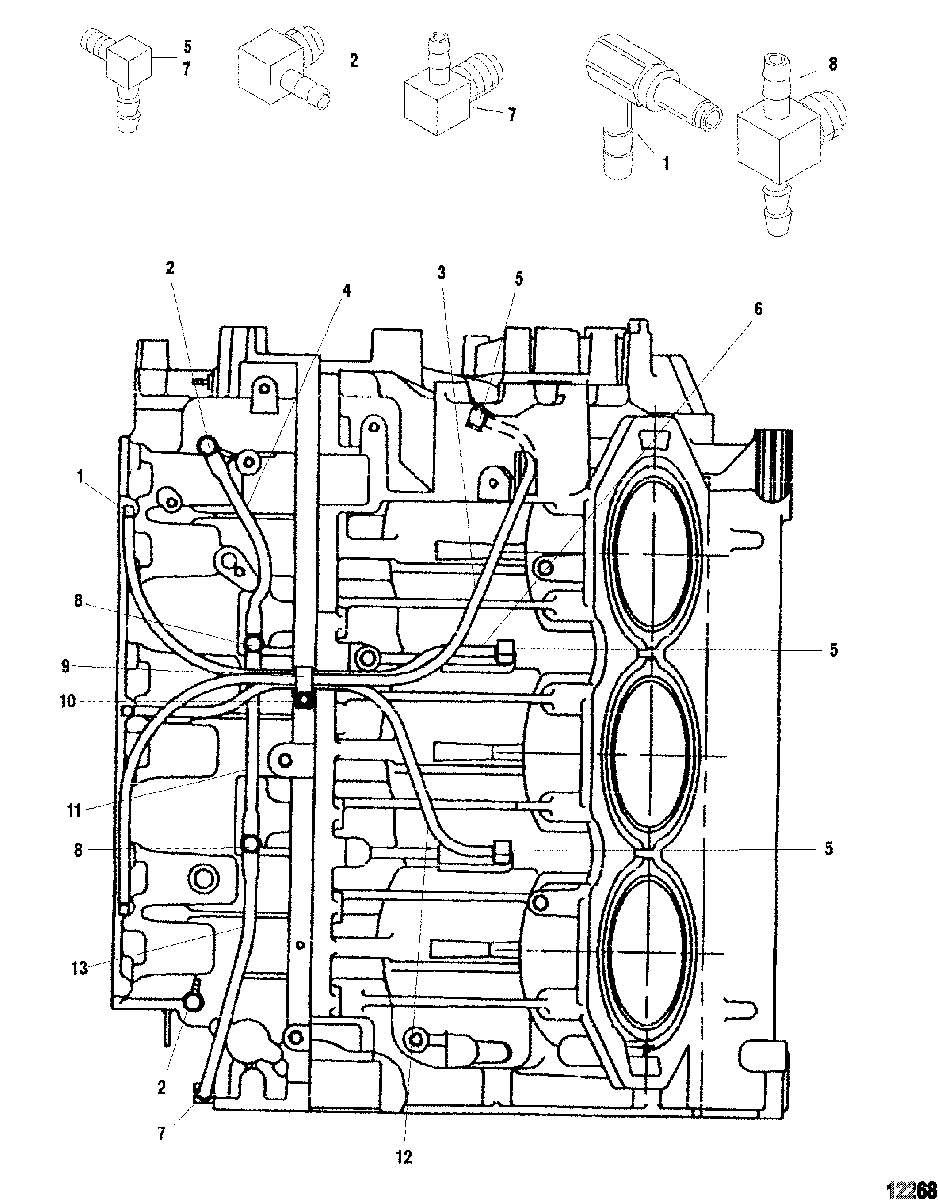

Port Center Main Oiling System для Mariner - 200 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    22-151333 ELBOW
    ELBOW
  • 2
    22-887801 FITTING, Elbow 90 Degree (.0625-27)
    FITTING, Elbow 90 Degree (.0625-27)
  • 3
    32-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 20.50 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 20.50 Inch Length)
  • 4
    32-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 5.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 5.00 Inch Length)
  • 5
    21-8592352 CHECK VALVE, 90 Degree (.0625-27)
    CHECK VALVE, 90 Degree (.0625-27)
  • 6
    32-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 13.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 13.00 Inch Length)
  • 7
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 8
    21-8582362 CHECK VALVE
    CHECK VALVE
  • 9
    54-23567 CLIP
    CLIP
  • 10
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 11
    32-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 4.75 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 4.75 Inch Length)
  • 12
    32-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 11.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 11.00 Inch Length)
  • 13
    32-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 9.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 9.00 Inch Length)
  • -
    854198R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
  • -
    877869R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
