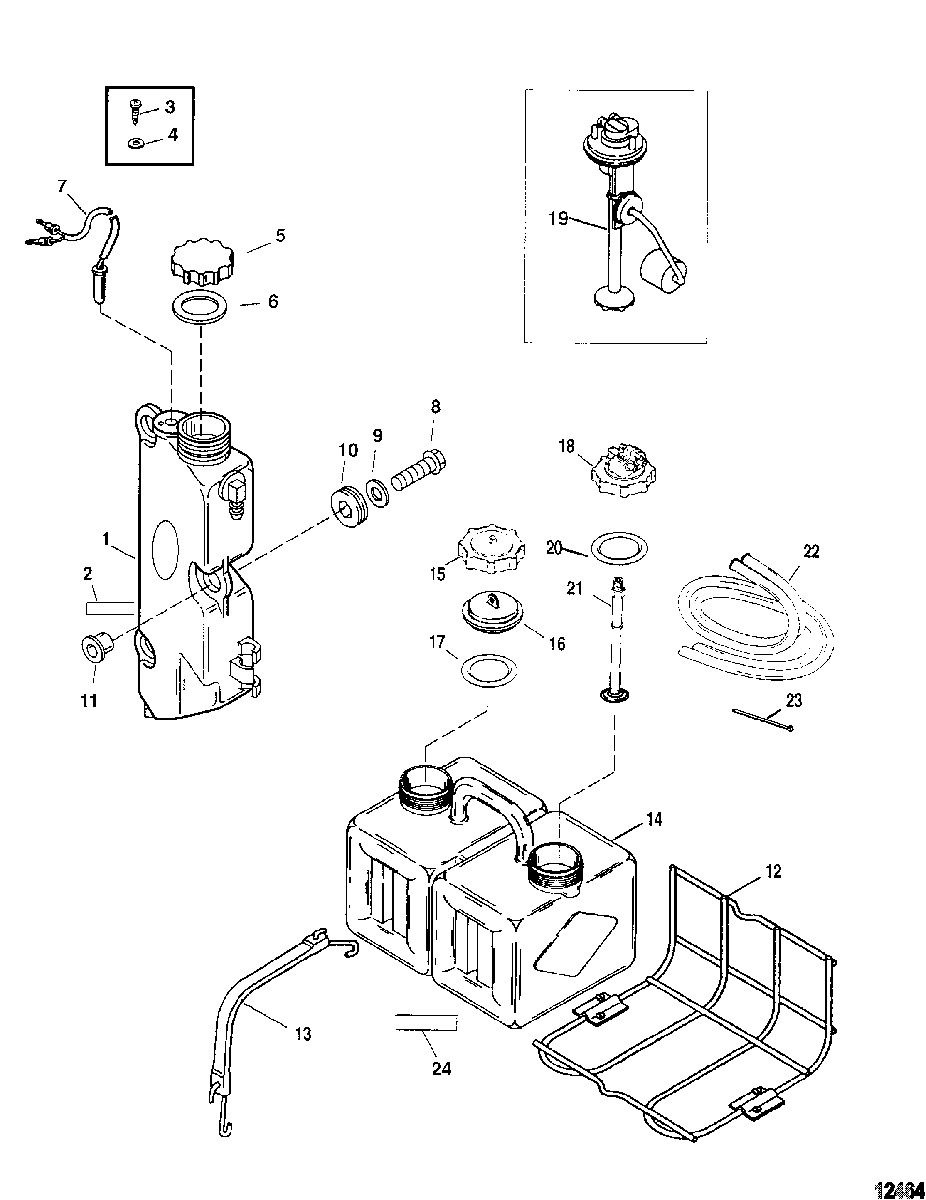

Oil Injection Components для Mariner - 200 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    1200-8M0119508 TANK ASSEMBLY
    TANK ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Decal - Reservoir
    NOT SOLD SEPARATE, Decal - Reservoir
  • 3
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 4
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 5
    36-814449A3 CAP ASSEMBLY
    CAP ASSEMBLY
  • 6
    27-42999T GASKET
    GASKET
  • 7
    87-856156T02 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 8
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 9
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 10
    25-855362001 GROMMET
    GROMMET
  • 11
    23-855364 BUSHING
    BUSHING
  • 12
    12335A1 BRACKET KIT
    BRACKET KIT
  • 13
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 14
    1257-87421 TANK
    TANK
  • 15
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 16
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 17
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 18
    816190A4 HOUSING ASSEMBLY, Adapter
    (Non-Digital)
    HOUSING ASSEMBLY, Adapter
    (Non-Digital)
  • 19
    816190A5 SENDER ASSEMBLY, Oil Level
    (Digital)
    SENDER ASSEMBLY, Oil Level
    (Digital)
  • 20
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 21
    32-99802 TUBE
    TUBE
  • 22
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 23
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 24
    NSS NOT SOLD SEPARATE, Decal
    (Caution Remove Tank)
    NOT SOLD SEPARATE, Decal
    (Caution Remove Tank)
