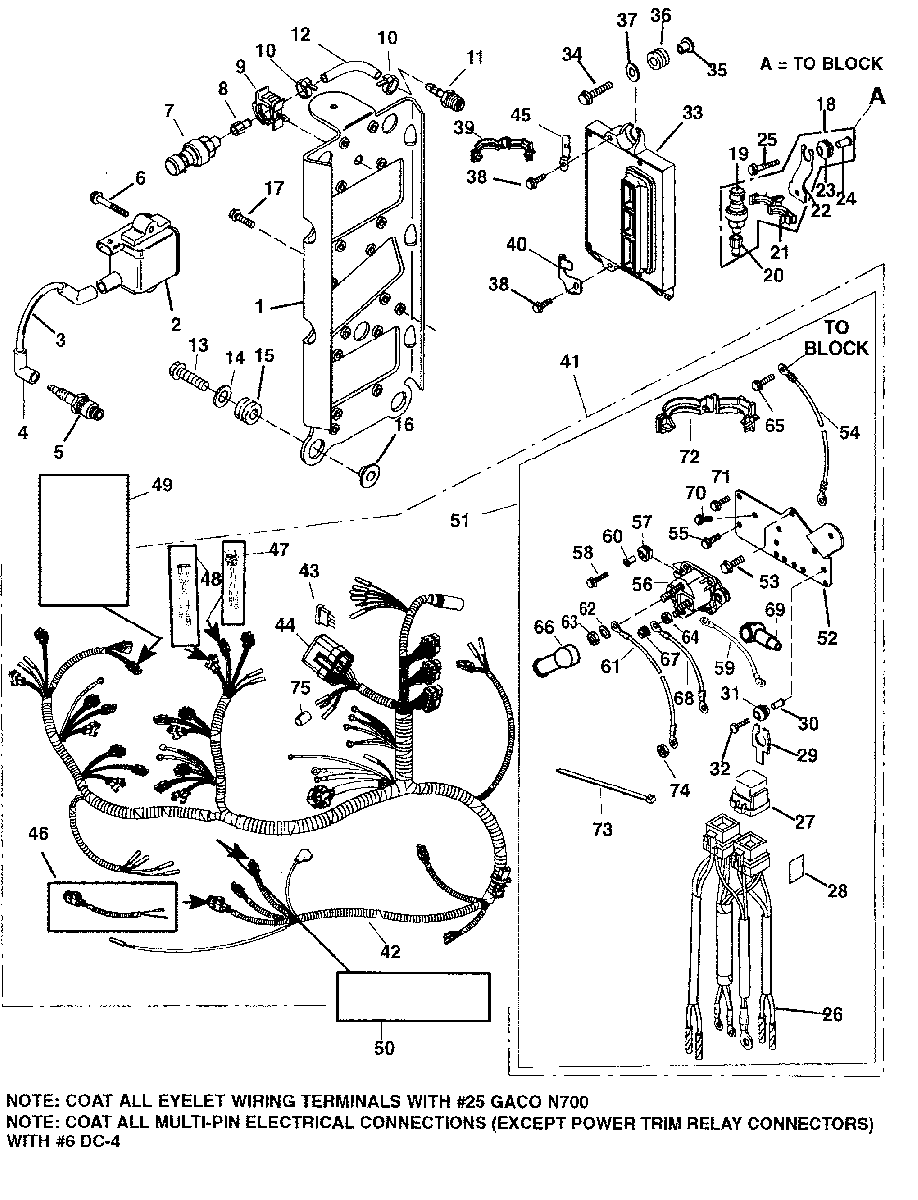

Electrical Components для Mariner - 200 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    850295T4 PLATE
    PLATE
  • 2
    339-856991A1 COIL KIT
    COIL KIT
  • 3
    84-881908T CABLE ASSEMBLY, Hi Tension
    CABLE ASSEMBLY, Hi Tension
  • 4
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 5
    33-889597Q SPARK PLUG
    SPARK PLUG
  • 6
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 7
    881879A7 SENSOR, (0-50 PSI)
    SENSOR, (0-50 PSI)
  • 8
    22-856594 FITTING, Barbed
    FITTING, Barbed
  • 9
    54-858954 CLIP, (.625)
    CLIP, (.625)
  • 10
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 11
    22-859092 FITTING
    FITTING
  • 12
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 15.00 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk) (Cut to 15.00 Inch Length)
  • 13
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 14
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 15
    25-833155 GROMMET
    GROMMET
  • 16
    23-8502341 BUSHING
    BUSHING
  • 17
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 18
    NSS NOT SOLD SEPARATE, Pitot Sensor Assembly
    (Digital)
    NOT SOLD SEPARATE, Pitot Sensor Assembly
    (Digital)
  • 19
    881879T11 SENSOR, Speed
    (Digital)
    SENSOR, Speed
    (Digital)
  • 20
    22-892403 FITTING, Straight
    (Digital)
    FITTING, Straight
    (Digital)
  • 21
    54-858954 CLIP, (.625), Conduit
    (Digital)
    CLIP, (.625), Conduit
    (Digital)
  • 22
    859313 BRACKET, Speedo Sensor
    (Digital)
    BRACKET, Speedo Sensor
    (Digital)
  • 23
    25-818967 GROMMET
    (Digital)
    GROMMET
    (Digital)
  • 24
    23-818968 BUSHING
    (Digital)
    BUSHING
    (Digital)
  • 25
    10-82130025 SCREW, (M6 x 25)
    (Digital)
    SCREW, (M6 x 25)
    (Digital)
  • 26
    84-819514A14 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 27
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 28
    NSS NOT SOLD SEPARATE, Decal - Trim Relay
    NOT SOLD SEPARATE, Decal - Trim Relay
  • 29
    828102 BRACKET
    BRACKET
  • 30
    23-818968 BUSHING
    BUSHING
  • 31
    25-818967 GROMMET
    GROMMET
  • 32
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • -
    854198R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
  • -
    877869R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Numbers 900-858485C1/C2 Or 900-858483C1/C2)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Numbers 900-858485C1/C2 Or 900-858483C1/C2)
