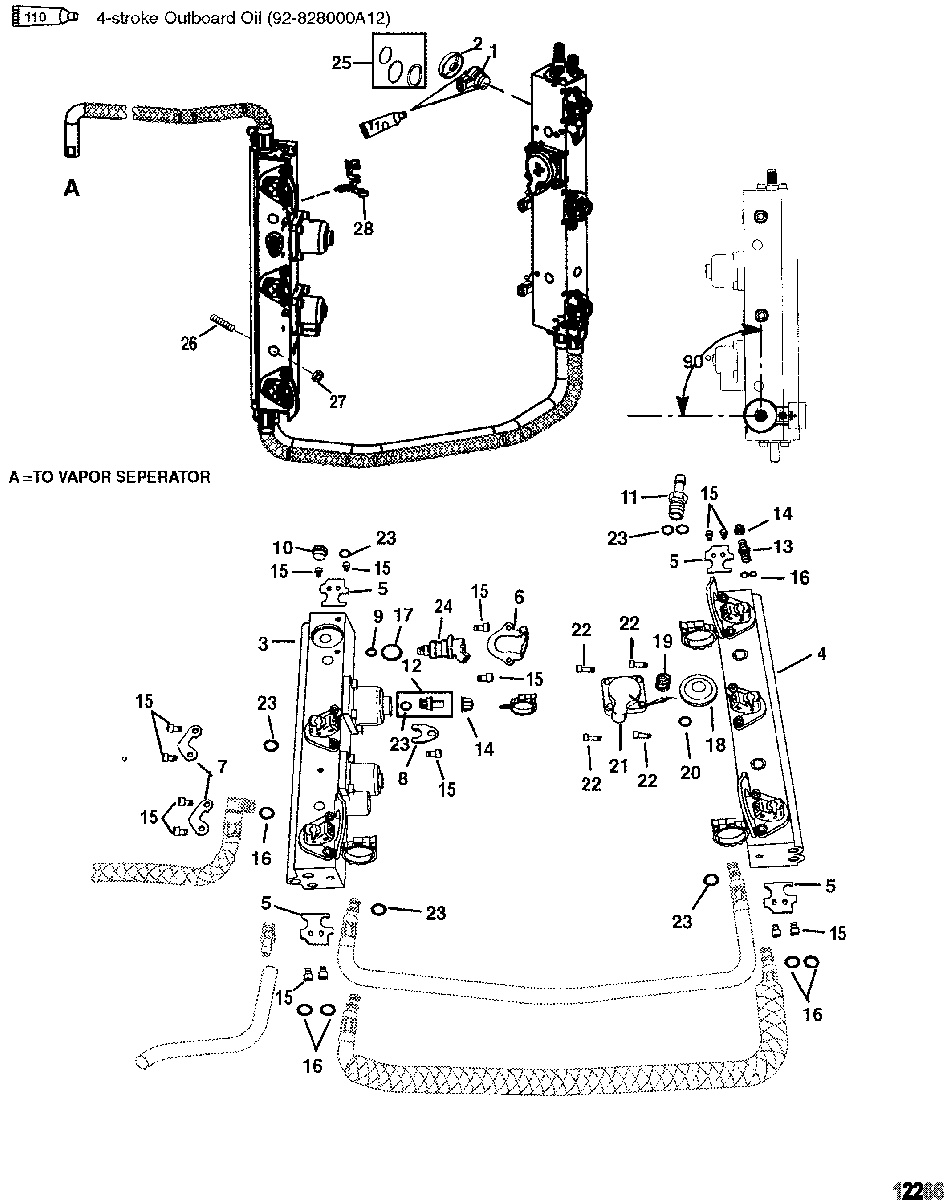

Fuel Rails для Mariner - 200 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Fuel Rail Assemlby
    NOT SOLD SEPARATE, Fuel Rail Assemlby
  • 1
    8M6001743 INJECTOR
    INJECTOR
  • 2
    12-828694A1 WASHER ASSEMBLY, Cupped
    WASHER ASSEMBLY, Cupped
  • 3
    858258A1 FUEL RAIL ASSEMBLY
    (Port)
    FUEL RAIL ASSEMBLY
    (Port)
  • 4
    884430T06 FUEL RAIL ASSEMBLY
    (Starboard)
    FUEL RAIL ASSEMBLY
    (Starboard)
  • 5
    54-804830 CLAMP
    CLAMP
  • 6
    54-8048311 CLAMP
    CLAMP
  • 7
    54-804832 CLAMP
    CLAMP
  • 8
    54-804833 CLAMP
    CLAMP
  • 9
    25-804529 O-RING KIT
    O-RING KIT
  • 10
    19-804835 PLUG
    PLUG
  • 11
    22-804836 FITTING
    FITTING
  • 12
    804837 VALVE ASSEMBLY, (.5 Inch Diameter)
    VALVE ASSEMBLY, (.5 Inch Diameter)
  • 13
    8M0047053 VALVE KIT, Fuel
    VALVE KIT, Fuel
  • 14
    19-8M0046566 CAP
    CAP
  • 15
    10-8M0041100 SCREW PACKAGE, (M5 x 8) (2 Per)
    SCREW PACKAGE, (M5 x 8) (2 Per)
  • 16
    25-804840 O-RING KIT
    O-RING KIT
  • 17
    25-804530 O-RING KIT
    O-RING KIT
  • 18
    804533 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 19
    24-804534 SPRING
    SPRING
  • 20
    25-804536 O-RING
    O-RING
  • 21
    804535001 COVER
    COVER
  • 22
    804526 SCREW PACKAGE, (M5 x 16) (2 Per)
    SCREW PACKAGE, (M5 x 16) (2 Per)
  • 23
    804532 O-RING KIT
    (16 Per Kit)
    O-RING KIT
    (16 Per Kit)
  • 24
    804528 INJECTOR
    INJECTOR
  • 25
    26-804875 SEAL KIT
    SEAL KIT
  • 26
    16-8M0063255 STUD, (M10 x 91)
    STUD, (M10 x 91)
  • 27
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 28
    54-859376 CLIP, Conduit
    CLIP, Conduit
  • -
    854198R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
  • -
    877869R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
