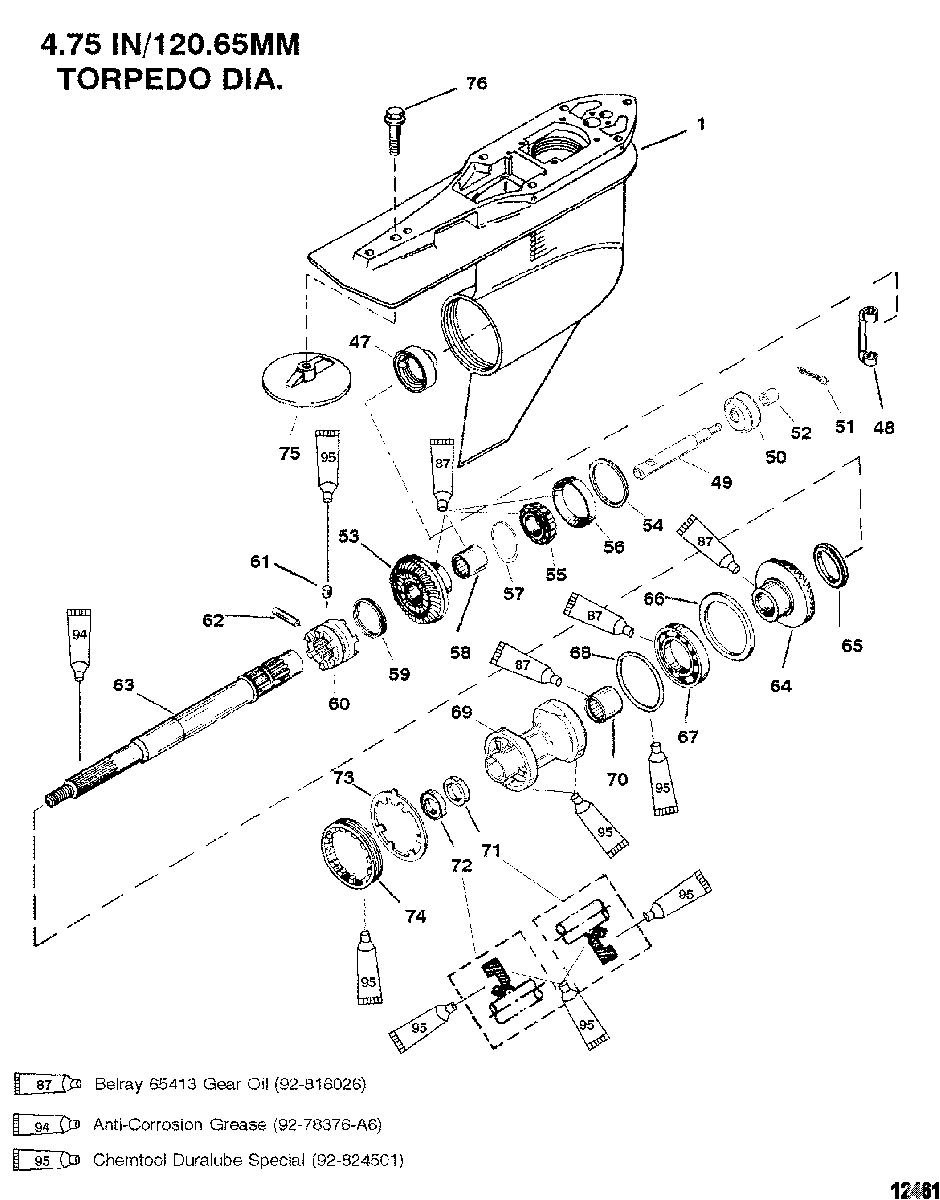

Gear Housing, Propeller Shaft - Standard Rotation для Mariner - 200 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    1623-859399T18 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 47
    22-859403 PLUG
    PLUG
  • 48
    823903 SHIFT CRANK
    SHIFT CRANK
  • 49
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 50
    NSS NOT SOLD SEPARATE, Shift Spool
    NOT SOLD SEPARATE, Shift Spool
  • 51
    18-469501 COTTER PIN
    COTTER PIN
  • 52
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 53
    43-859321A3 GEAR SET, Forward/Pinion (12/21)
    GEAR SET, Forward/Pinion (12/21)
  • 53
    43-878611A2 GEAR SET, Forward And Pinion
    (1.87:1 - 15/28)
    GEAR SET, Forward And Pinion
    (1.87:1 - 15/28)
  • 54
    15-8M0063266 SHIM SET
    SHIM SET
  • 55
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 56
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 57
    53-856823 RING, Retaining
    RING, Retaining
  • 58
    31-30895T BEARING, Needle
    BEARING, Needle
  • 59
    24-30893 SPRING
    SPRING
  • 60
    52-859340T CLUTCH
    CLUTCH
  • 61
    17-828356 PIN, Detent
    PIN, Detent
  • 62
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 63
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 64
    43-859322A1 GEAR, Reverse (12/21)
    (1.75:1)
    GEAR, Reverse (12/21)
    (1.75:1)
  • 64
    43-844147T01 GEAR, Reverse
    (1.87:1 - 15/28)
    GEAR, Reverse
    (1.87:1 - 15/28)
  • 65
    23-824108 SPACER
    SPACER
  • 66
    681001 RING, Thrust
    RING, Thrust
  • 67
    30-88957T BEARING, Ball
    BEARING, Ball
  • 68
    25-31534 O-RING
    O-RING
  • 69
    818763T11 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 70
    31-30956T BEARING, Needle
    BEARING, Needle
  • 71
    26-14077 SEAL, Oil, Inside
    SEAL, Oil, Inside
  • 72
    26-76868 SEAL, Outside
    SEAL, Outside
  • 73
    14-18323 TAB WASHER
    TAB WASHER
  • 74
    8M2000347 RETAINER
    RETAINER
  • 75
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 76
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
