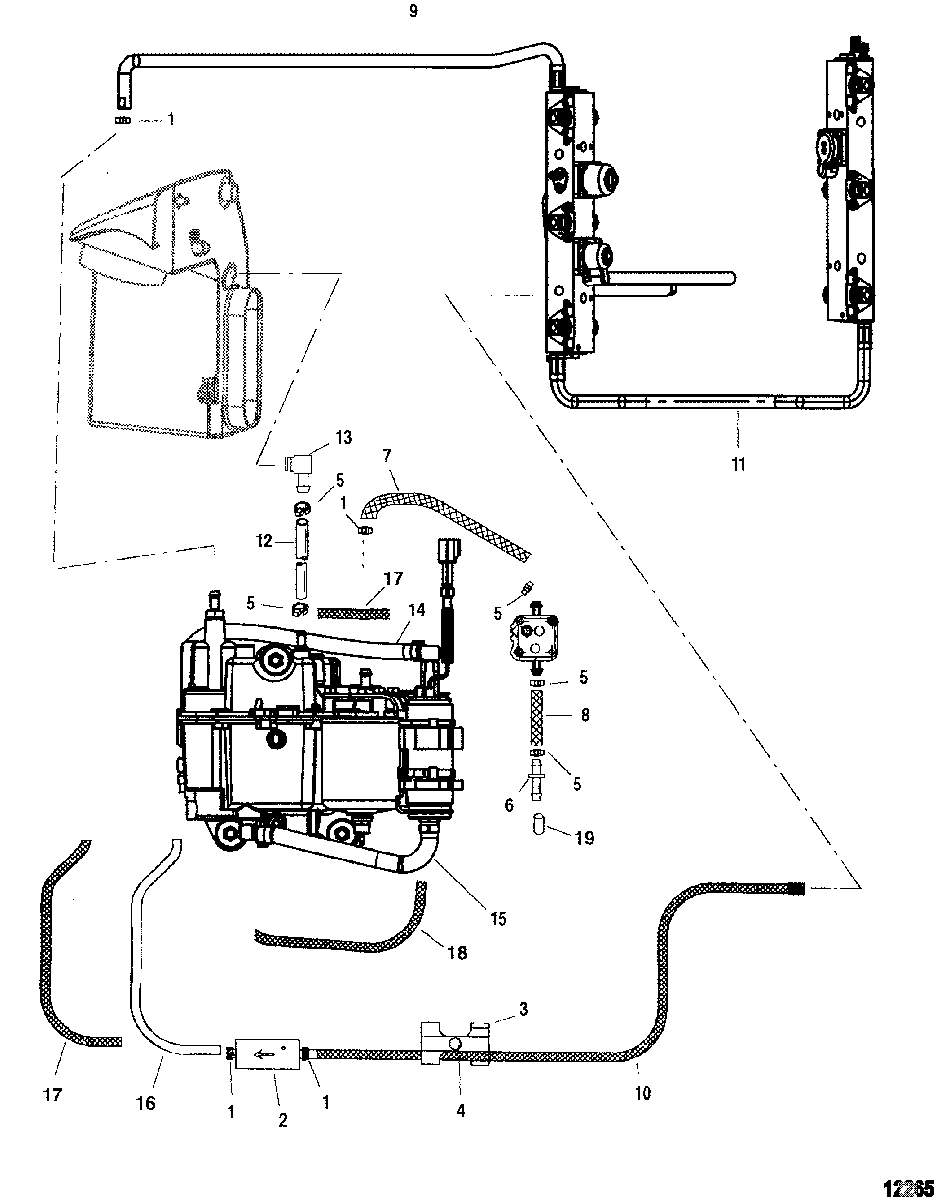

Fuel System для Mariner - 200 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    54-856880 CLAMP, Hose (15.3)
    CLAMP, Hose (15.3)
  • 2
    21-8557611 CHECK VALVE
    CHECK VALVE
  • 3
    54-8583253 CLAMP
    CLAMP
  • 4
    10-858939 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 5
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 6
    22-822769 CONNECTOR
    CONNECTOR
  • 7
    32-8M0064780 HOSE/SLEEVE
    HOSE/SLEEVE
  • 8
    32-8M0064778 HOSE
    HOSE
  • 9
    32-804825 HOSE, Fuel Supply
    HOSE, Fuel Supply
  • 10
    32-804826 HOSE, Fuel Bypass
    HOSE, Fuel Bypass
  • 11
    32-8M6005520 HOSE
    HOSE
  • 12
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 18.00 Inch Length)
    HOSE, (57.00 Inches Bulk) (Cut to 18.00 Inch Length)
  • 13
    22-8589052 ELBOW
    ELBOW
  • 14
    32-856825 HOSE
    HOSE
  • 15
    32-856778 HOSE
    HOSE
  • 16
    32-85682239 TUBING, (17.00 Inches Bulk)
    TUBING, (17.00 Inches Bulk)
  • 17
    23-85686953 SLEEVE, (27.00 Inches Bulk) (Cut to 14.00 Inch Length)
    SLEEVE, (27.00 Inches Bulk) (Cut to 14.00 Inch Length)
  • 18
    23-85686953 SLEEVE, (27.00 Inches Bulk) (Cut to 8.00 Inch Length)
    SLEEVE, (27.00 Inches Bulk) (Cut to 8.00 Inch Length)
  • 19
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
