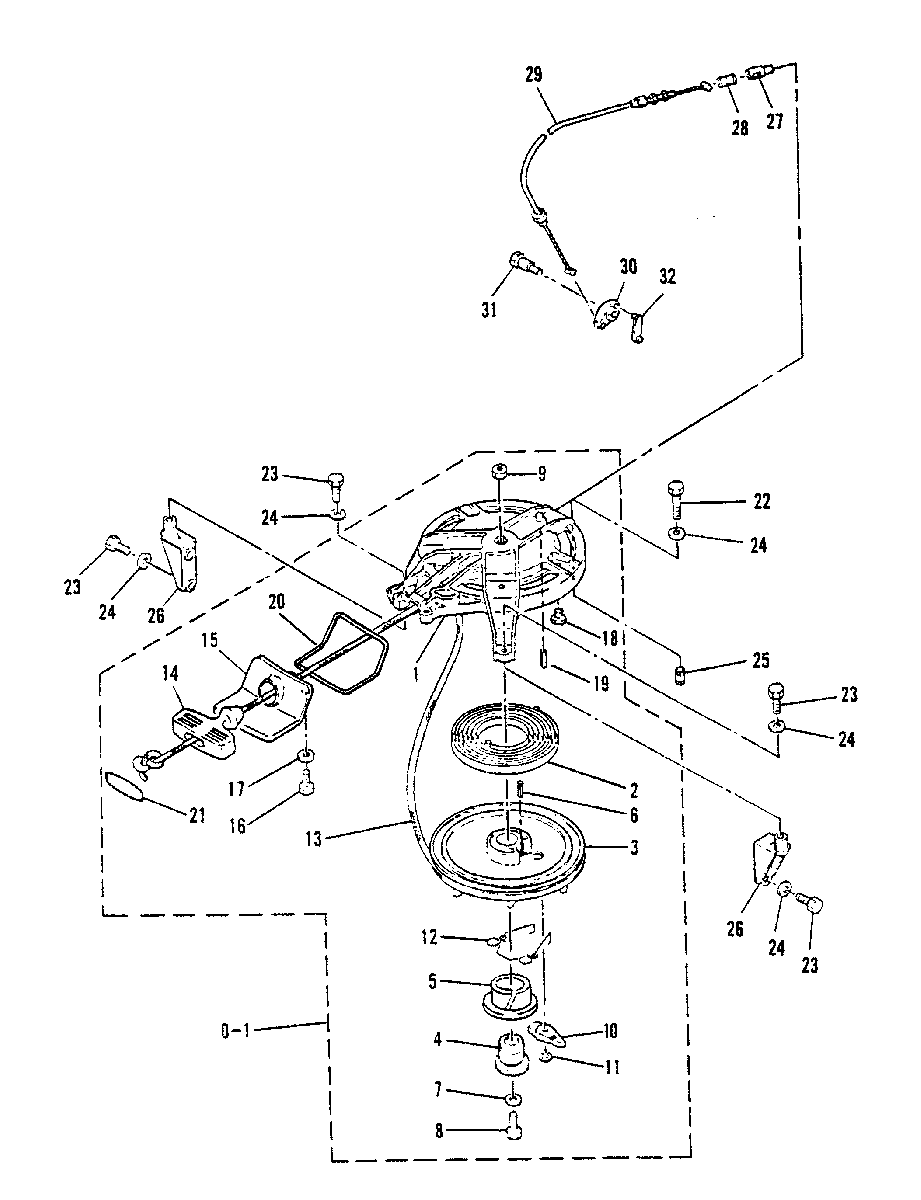

RECOIL STARTER для Mariner - 15C M-684-000101 AND UP

  • №
    Артикул
    Название
  • 0-1
    NLA STARTER
    (M-020025, ML-316415, E-251060, EL-551615 & BELOW)
    STARTER
    (M-020025, ML-316415, E-251060, EL-551615 & BELOW)
  • 0-1
    2169-9348M STARTER
    (M-020026, ML-316416, E-251061, EL-551616 & UP)
    STARTER
    (M-020026, ML-316416, E-251061, EL-551616 & UP)
  • 1
    2169-8398M STARTER HOUSING
    STARTER HOUSING
  • 2
    24-82115M SPRING
    (M-034571, ML-323544, E-251805, EL-551655 & BELOW)
    SPRING
    (M-034571, ML-323544, E-251805, EL-551655 & BELOW)
  • 2
    24-95588M SPRING
    (M-034572, ML-323545, E-251806, EL-551656 & UP)
    SPRING
    (M-034572, ML-323545, E-251806, EL-551656 & UP)
  • 3
    50-83250M STARTER SHEAVE
    STARTER SHEAVE
  • 4
    83251M SHAFT (BRASS)
    (M-034571, ML-323544, E-251805, EL-551655 & BELOW)
    SHAFT (BRASS)
    (M-034571, ML-323544, E-251805, EL-551655 & BELOW)
  • 4
    95590M SHAFT (NYLON W/BRASS INSERT)
    (M-034572, ML-323545, E-251806, EL-551656 & UP)
    SHAFT (NYLON W/BRASS INSERT)
    (M-034572, ML-323545, E-251806, EL-551656 & UP)
  • 5
    23-82687M BUSHING
    BUSHING
  • 6
    17-82157M ROLL PIN
    ROLL PIN
  • 7
    12-81557M WASHER
    WASHER
  • 8
    10-84058M BOLT (3/4")
    BOLT (3/4")
  • 8
    10-83285M BOLT (1-3/8")
    BOLT (1-3/8")
  • 9
    11-82389M NUT
    NUT
  • 10
    83252M DRIVE PAWL
    DRIVE PAWL
  • 11
    53-84895M SNAP RING
    SNAP RING
  • 12
    24-83947M SPRING
    (M-034571, ML-323544, E-251805, EL-551655 & BELOW)
    SPRING
    (M-034571, ML-323544, E-251805, EL-551655 & BELOW)
  • 12
    24-95589M SPRING
    (M-034572, ML-323545, E-251806, EL-551656 & UP)
    SPRING
    (M-034572, ML-323545, E-251806, EL-551656 & UP)
  • 13
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 14
    814491A1 HANDLE
    HANDLE
  • 15
    84318M GUIDE
    (M-020025, ML-316415, E-251060, EL-551615 & BELOW)
    GUIDE
    (M-020025, ML-316415, E-251060, EL-551615 & BELOW)
  • 15
    41265M GUIDE
    (M-020026, ML-316416, E-251061, EL-551616 & UP)
    GUIDE
    (M-020026, ML-316416, E-251061, EL-551616 & UP)
  • 16
    10-826957M BOLT
    BOLT
  • 17
    12-82214M WASHER
    WASHER
  • 18
    19-80604M PLUG
    PLUG
  • 19
    17-82155M PIN
    PIN
  • 20
    83982M SEAL
    SEAL
  • 21
    814491A1 COVER
    COVER
  • 22
    10-83285M BOLT
    BOLT
  • 23
    10-84058M BOLT
    BOLT
  • 24
    12-82214M WASHER
    WASHER
  • 25
    17-14214M DOWEL PIN
    DOWEL PIN
  • 26
    96599M BRACKET
    (M-020025, ML-316415, E-251060, EL-551615 & BELOW)
    BRACKET
    (M-020025, ML-316415, E-251060, EL-551615 & BELOW)
  • 26
    41266M BRACKET
    (M-020026, ML-316416, E-251061, EL-551616 & UP)
    BRACKET
    (M-020026, ML-316416, E-251061, EL-551616 & UP)
  • 27
    81106M PLUNGER
    PLUNGER
  • 28
    24-82079M SPRING
    SPRING
  • 29
    84117M LOCKOUT WIRE ASSEMBLY
    LOCKOUT WIRE ASSEMBLY
  • 30
    84115M ARM
    ARM
  • 31
    10-94544M BOLT
    BOLT
  • 32
    84116M LINK
    LINK
