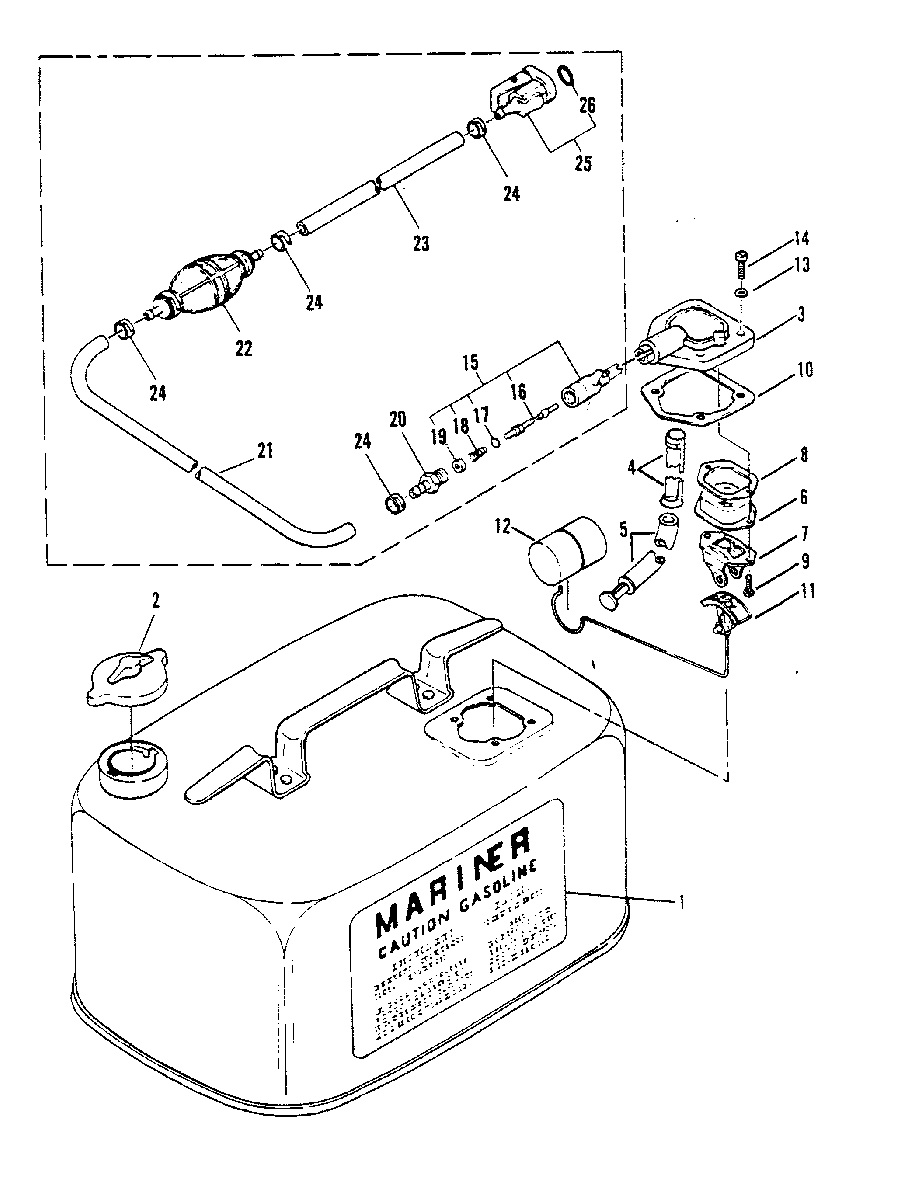

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 15C M-684-000101 AND UP

  • №
    Артикул
    Название
  • 1
    37-82984M DECAL, SIDEE
    DECAL, SIDEE
  • 2
    36-18962M FUEL TANK CAP
    FUEL TANK CAP
  • 3
    83618M FUEL METER ASSEMBLY
    FUEL METER ASSEMBLY
  • 4
    54-83764M CLAMP
    CLAMP
  • 5
    32-94727M HOSE
    HOSE
  • 6
    NLA LENS (SERVICE BULLETIN 84-1)
    LENS (SERVICE BULLETIN 84-1)
  • 7
    80268M BRACKET
    BRACKET
  • 8
    27-17540M GASKET
    GASKET
  • 9
    10-83523M SCREW
    SCREW
  • 10
    27-81320M GASKET
    GASKET
  • 11
    81318M INDICATOR
    INDICATOR
  • 12
    81319M FLOAT
    FLOAT
  • 13
    12-95501M WASHER
    WASHER
  • 14
    10-82496M SCREW
    SCREW
  • 14
    32-877681Q8 FUEL LINE ASSY. (5/16" - 8MM - I.D. HOSE)
    FUEL LINE ASSY. (5/16" - 8MM - I.D. HOSE)
  • 15
    30185Q3 BAYONET BODY ASSEMBLY
    BAYONET BODY ASSEMBLY
  • 16
    30185Q3 STEM
    STEM
  • 17
    25-16524 O-RING
    O-RING
  • 18
    24-30189 SPRING
    SPRING
  • 19
    30188 CAP WASHER
    CAP WASHER
  • 20
    22-89771Q2 FITTING (5/16" - 8MM - I.D. HOSE)
    FITTING (5/16" - 8MM - I.D. HOSE)
  • 20
    22-63187 FITTING (1/4" - 6MM - I.D. HOSE)
    FITTING (1/4" - 6MM - I.D. HOSE)
  • 21
    32-16571M HOSE (5/16" - 8MM - I.D. HOSE)
    HOSE (5/16" - 8MM - I.D. HOSE)
  • 21
    32-94727M HOSE (1/4" - 6MM - I.D. HOSE)
    HOSE (1/4" - 6MM - I.D. HOSE)
  • 22
    13330Q07 PRIMER BULB (5/16" - 8MM - I.D. HOSE)
    PRIMER BULB (5/16" - 8MM - I.D. HOSE)
  • 22
    89396Q01 PRIMER BULB (1/4" - 6MM - I.D. HOSE)
    PRIMER BULB (1/4" - 6MM - I.D. HOSE)
  • 23
    32-16571M HOSE (5/16" -8 MM - I.D. HOSE)
    HOSE (5/16" -8 MM - I.D. HOSE)
  • 23
    32-94727M HOSE (1/4" - 6MM - I.D. HOSE)
    HOSE (1/4" - 6MM - I.D. HOSE)
  • 24
    54-16574M CLAMP (5/16" - 8MM - I.D. HOSE)
    CLAMP (5/16" - 8MM - I.D. HOSE)
  • 24
    54-16725M CLAMP (1/4" - 6MM - I.D. HOSE )
    CLAMP (1/4" - 6MM - I.D. HOSE )
  • 25
    22-13563Q3 FUEL CONNECTOR (5/16" - 8MM - I.D. HOSE)
    FUEL CONNECTOR (5/16" - 8MM - I.D. HOSE)
  • 25
    22-14213Q FUEL CONNECTOR (1/4" - 6MM - I.D. HOSE)
    FUEL CONNECTOR (1/4" - 6MM - I.D. HOSE)
  • 26
    25-82789M O-RING (1/4" - 6MM - I.D. HOSE)
    O-RING (1/4" - 6MM - I.D. HOSE)
