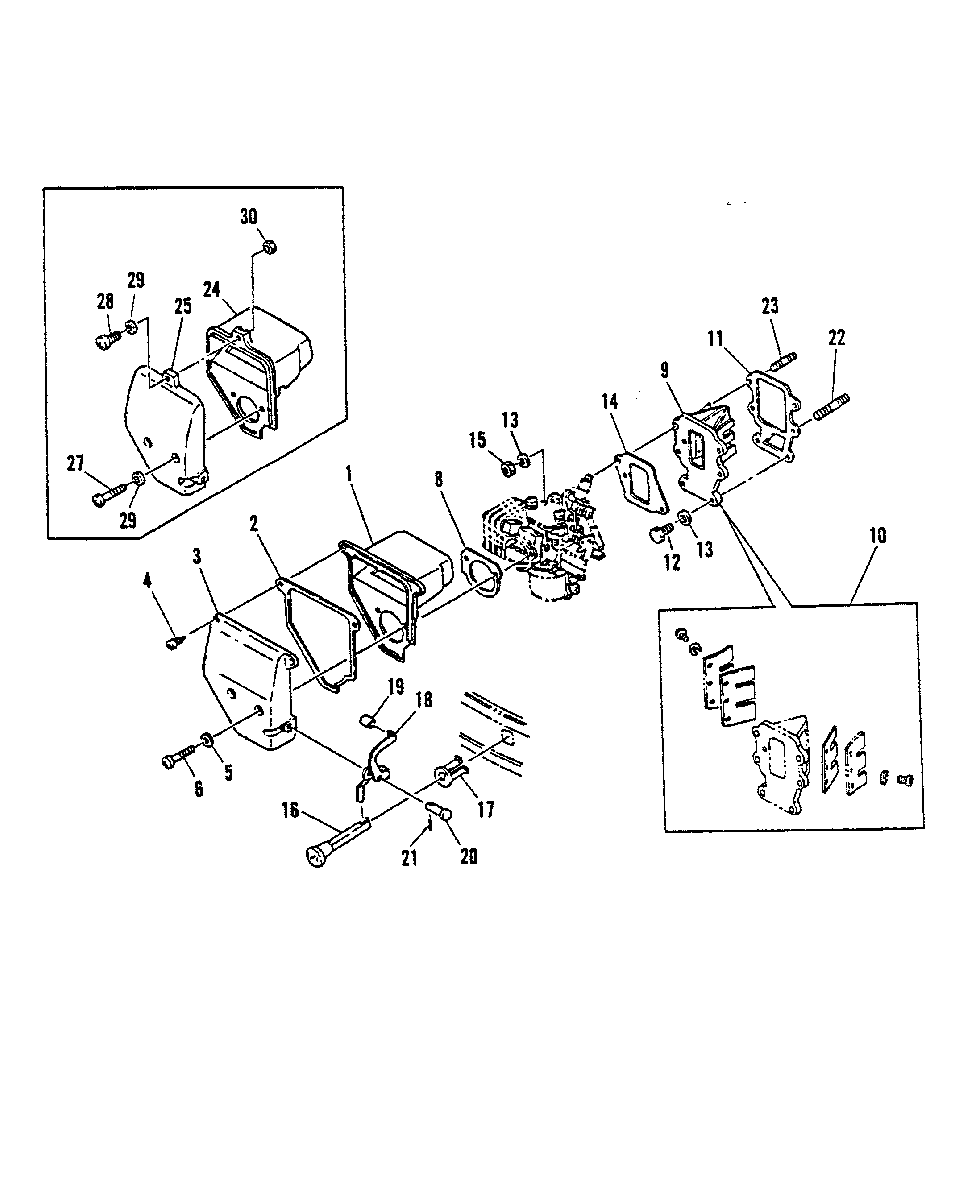

INTAKE MANIFOLD для Mariner - 15C M-684-000101 AND UP

  • №
    Артикул
    Название
  • 1
    96607M COVER - M-008131 ML-308631 E-250661 EL-551011 & UP
    COVER - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 2
    27-96608M GASKET - M-008131 ML-308631 E-250661 EL-551011 & UP
    GASKET - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 3
    96609M COVER (OUTER) - M-008131 ML-308631 E-250661 EL-551011 & UP
    COVER (OUTER) - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 4
    10-96610M SCREW - M-008131 ML-308631 E-250661 EL-551011 & UP
    SCREW - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 5
    12-82211M WASHER - M-008131 ML-308631 E-250661 EL-551011 & UP
    WASHER - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 6
    10-82522M SCREW - M-008131 ML-308631 E-250661 EL-551011 & UP
    SCREW - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 8
    27-96611M GASKET - M-008131 ML-308631 E-250661 EL-551011 & UP
    GASKET - M-008131 ML-308631 E-250661 EL-551011 & UP
  • 9
    18942M REED VALVE
    REED VALVE
  • 10
    34-84246M REED SET (REED STOPS NOT INCLUDED)
    REED SET (REED STOPS NOT INCLUDED)
  • 11
    27-83941M GASKET
    GASKET
  • 12
    10-826957M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    27-83245M GASKET
    GASKET
  • 15
    11-82390M NUT
    NUT
  • 16
    83960M CHOKE KNOB
    CHOKE KNOB
  • 17
    25-83961M GROMMET
    GROMMET
  • 18
    94559M CHOKE LEVER
    CHOKE LEVER
  • 19
    23-83959M BUSHING
    BUSHING
  • 20
    17-94560M CLEVIS PIN
    (M-002436 ML-303201 E-250236 EL-550596 & Up)
    CLEVIS PIN
    (M-002436 ML-303201 E-250236 EL-550596 & Up)
  • 20
    17-84248M CLEVIS PIN
    (M-002435 ML-303200 E-250235 EL-550595 & Below)
    CLEVIS PIN
    (M-002435 ML-303200 E-250235 EL-550595 & Below)
  • 21
    18-82051M COTTER PIN
    COTTER PIN
  • 22
    16-84249M STUD
    STUD
  • 23
    16-81731M STUD
    STUD
  • 24/25
    94557M COVER - M-008130 ML-308630 E-250660 EL-551010 & BELOW
    COVER - M-008130 ML-308630 E-250660 EL-551010 & BELOW
  • 27
    10-82522M SCREW - M-008130 ML-308630 E-250660 EL-551010 & BELOW
    SCREW - M-008130 ML-308630 E-250660 EL-551010 & BELOW
  • 28
    10-83356M SCREW - M-008130 ML-308630 E-250660 EL-551010 & BELOW
    SCREW - M-008130 ML-308630 E-250660 EL-551010 & BELOW
  • 29
    12-82211M WASHER - M-008130 ML-308630 E-250660 EL-551010 & BELOW
    WASHER - M-008130 ML-308630 E-250660 EL-551010 & BELOW
  • 30
    11-82388M NUT - M-008130 ML-308630 E-250660 EL-551010 & BELOW
    NUT - M-008130 ML-308630 E-250660 EL-551010 & BELOW
  • -
    27-96604M ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
    ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
