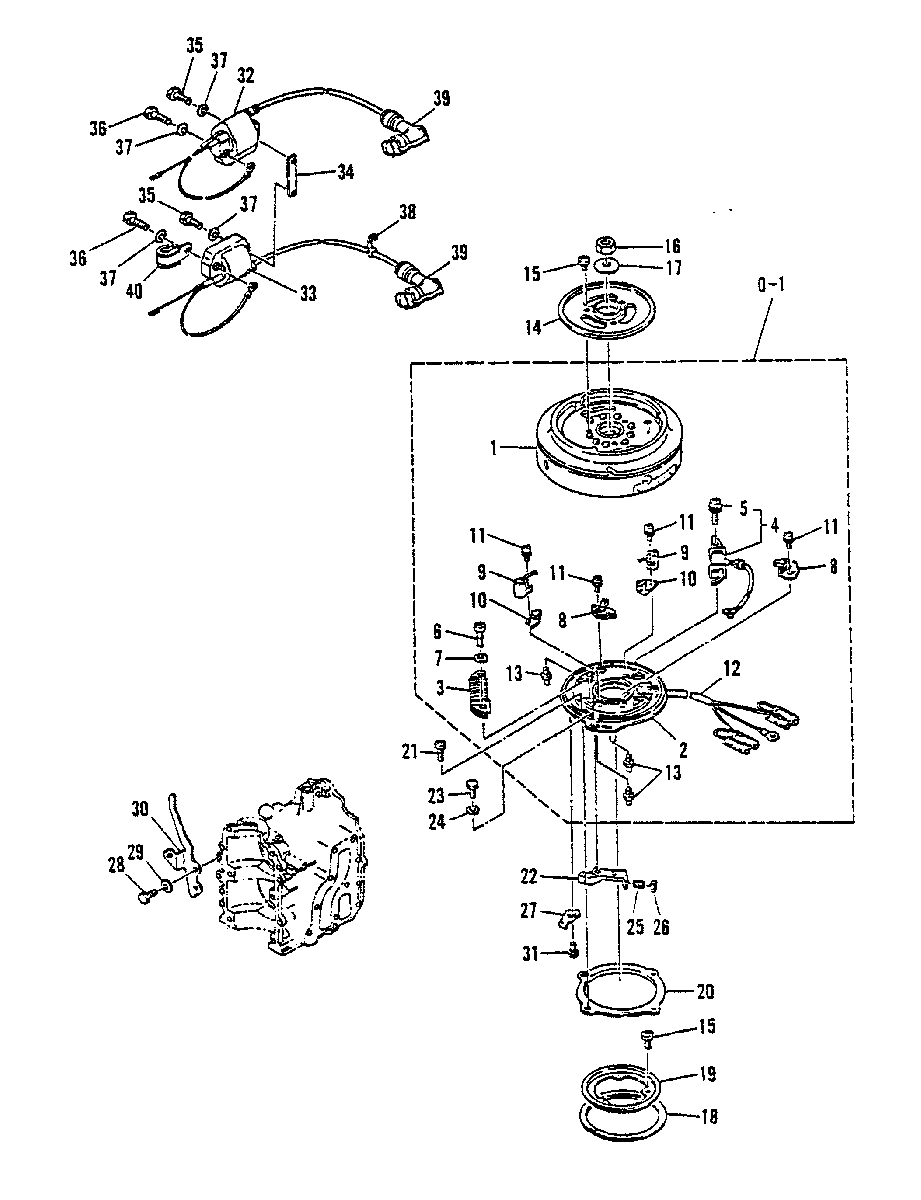

FLYWHEEL (M-020025 ML-316415 E-251060 EL-551615 & BELOW) для Mariner - 15C M-684-000101 AND UP
-
№АртикулНазвание
-
0-1NLA FLYWHEEL (MANUAL START)
(Use Without Lighting Coil - Ref. #4)FLYWHEEL (MANUAL START)
(Use Without Lighting Coil - Ref. #4) -
0-1253-8408M FLYWHEEL (MANUAL START)
(Use With Lighting Coil - Ref. #4)FLYWHEEL (MANUAL START)
(Use With Lighting Coil - Ref. #4) -
1NLA FLYWHEEL (MANUAL)FLYWHEEL (MANUAL)
-
194654M FLYWHEEL (ELECTRIC)FLYWHEEL (ELECTRIC)
-
284308M MAGNETO BASEMAGNETO BASE
-
383281T IGNITION COILIGNITION COIL
-
480553M LIGHTING COIL (MANUAL)
(In USA Lighting Coil is Standard ONLY on Electric models)LIGHTING COIL (MANUAL)
(In USA Lighting Coil is Standard ONLY on Electric models) -
483315M LIGHTING COIL (ELECTRIC)
(In USA Lighting Coil is Standard ONLY on Electric models)LIGHTING COIL (ELECTRIC)
(In USA Lighting Coil is Standard ONLY on Electric models) -
510-82522M SCREWSCREW
-
610-83108M SCREWSCREW
-
713-82186M WASHERWASHER
-
880930M BREAKER POINT ASSY.BREAKER POINT ASSY.
-
980558M CONDENSERCONDENSER
-
1080025M LUBRICATORLUBRICATOR
-
1110-82500M SCREWSCREW
-
1284-94545M LEAD WIRELEAD WIRE
-
1384305M JOINTJOINT
-
1484052M COVERCOVER
-
1510-96671M SCREWSCREW
-
1611-81770M NUTNUT
-
1712-81814M WASHERWASHER
-
1898981M RETAINERRETAINER
-
1983962M RETAINERRETAINER
-
2041869M FRICTION PLATEFRICTION PLATE
-
2110-17661M SCREWSCREW
-
2294546M THROTTLE CAMTHROTTLE CAM
-
2310-84313M BOLTBOLT
-
2412-82211M WASHERWASHER
-
2516-41883M STUDSTUD
-
2611-83763M NUTNUT
-
2784316M STOPPERSTOPPER
-
2810-826957M BOLTBOLT
-
2912-82214M WASHERWASHER
-
30NLA TIMING PLATE
(S-002435 L-303200 E-250235 EL-550595 & Below)TIMING PLATE
(S-002435 L-303200 E-250235 EL-550595 & Below) -
3094548M TIMING PLATE
(S-002436-003605 L-303201-304890 E-250236-250460 EL-550596-550800)TIMING PLATE
(S-002436-003605 L-303201-304890 E-250236-250460 EL-550596-550800) -
3094547M TIMING PLATE
(S-003606 L-304891 E-250461 EL-550801 & Up)TIMING PLATE
(S-003606 L-304891 E-250461 EL-550801 & Up) -
3110-84313M BOLTBOLT
-
3294777M IGNITION COIL (SECONDARY - TOP)IGNITION COIL (SECONDARY - TOP)
-
3394778M IGNITION COIL (SECONDARY - BOTTOM)IGNITION COIL (SECONDARY - BOTTOM)
-
3484317M BRACLETBRACLET
-
3510-83285M BOLTBOLT
-
3610-82405M BOLTBOLT
-
3713-82212M WASHERWASHER
-
3882038M CLAMPCLAMP
-
3985-815119M PLUG CAP (NOISE SUPPRESOR)PLUG CAP (NOISE SUPPRESOR)
-
3985-63709A1 PLUG CAPPLUG CAP
-
4054-82041M CLAMPCLAMP
