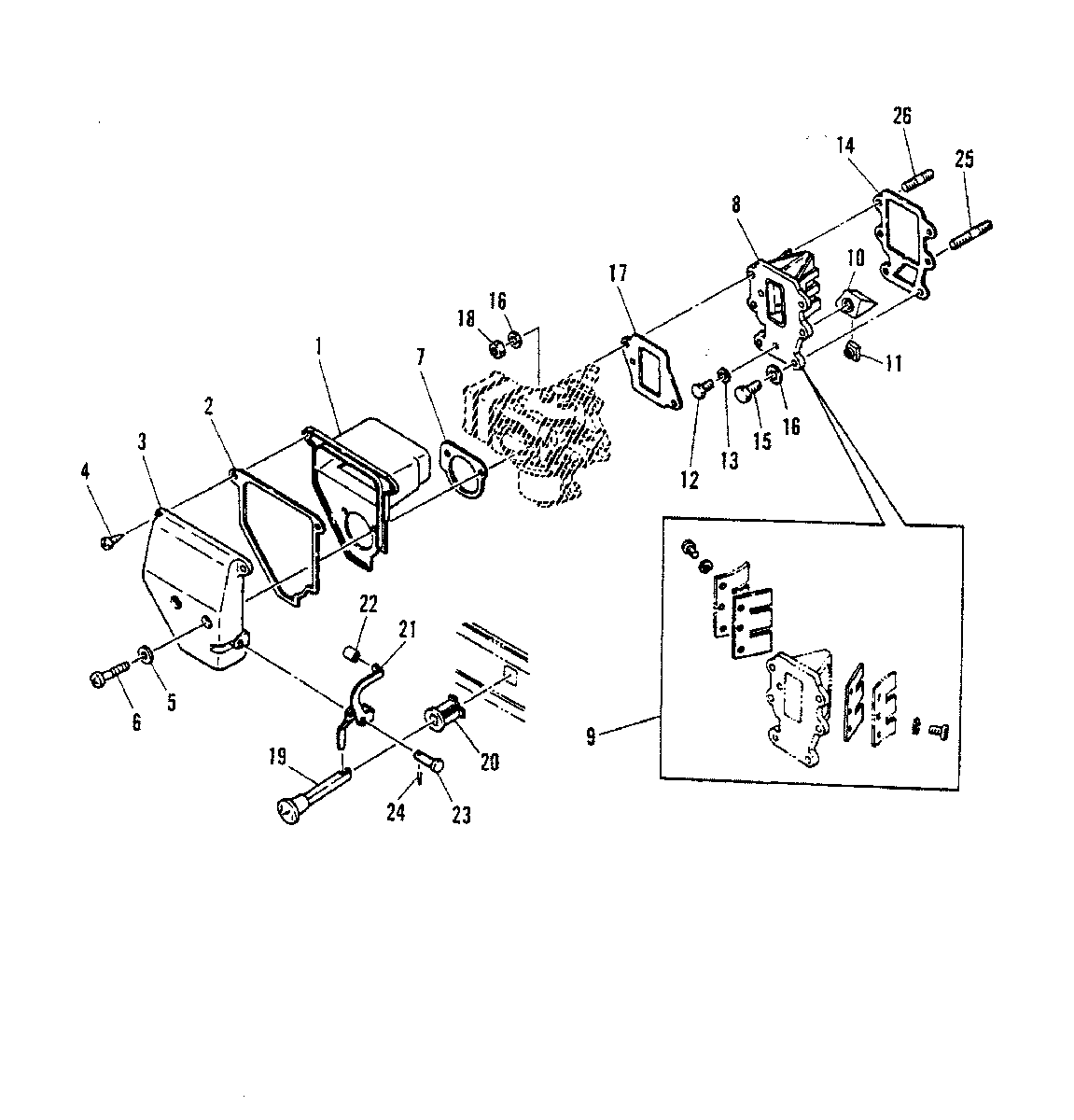

INTAKE MANIFOLD для Mariner - 15C M-684-000101 AND UP

  • №
    Артикул
    Название
  • 1
    96607M COVER
    COVER
  • 2
    27-96608M GASKET
    GASKET
  • 3
    96609M COVER (OUTER)
    COVER (OUTER)
  • 4
    10-96610M SCREW
    SCREW
  • 5
    12-82211M WASHER
    WASHER
  • 6
    10-82522M SCREW
    SCREW
  • 7
    27-96611M GASKET
    GASKET
  • 8
    18942M REED VALVE
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
    REED VALVE
    (M-062459 ML-336234 E-252704 EL-553589 & Up)
  • 8
    18942M REED VALVE
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    REED VALVE
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 9
    34-84246M REED SET (REED STOPS NOT INCLUDED)
    REED SET (REED STOPS NOT INCLUDED)
  • 10
    41256M SPACER
    SPACER
  • 11
    11-15327M NUT
    NUT
  • 12
    10-91772M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    27-83941M GASKET
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    GASKET
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 15
    10-826957M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    27-83245M GASKET
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
    GASKET
    (M-062458 ML-336233 E-252703 EL-553588 & Below)
  • 18
    11-82390M NUT
    NUT
  • 19
    83960M CHOKE KNOB
    CHOKE KNOB
  • 20
    25-83961M GROMMET
    GROMMET
  • 21
    94559M CHOKE LEVER
    CHOKE LEVER
  • 22
    23-83959M BUSHING
    BUSHING
  • 23
    17-94560M CLEVIS PIN
    CLEVIS PIN
  • 24
    18-82051M COTTER PIN
    COTTER PIN
  • 25
    16-84249M STUD
    STUD
  • 26
    16-81731M STUD
    STUD
  • -
    27-96604M ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
    ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
  • -
    27-18938M ENGINE GASKET SET
    (M-062459, ML-336234, E-252704, EL-553589 & UP)
    ENGINE GASKET SET
    (M-062459, ML-336234, E-252704, EL-553589 & UP)
