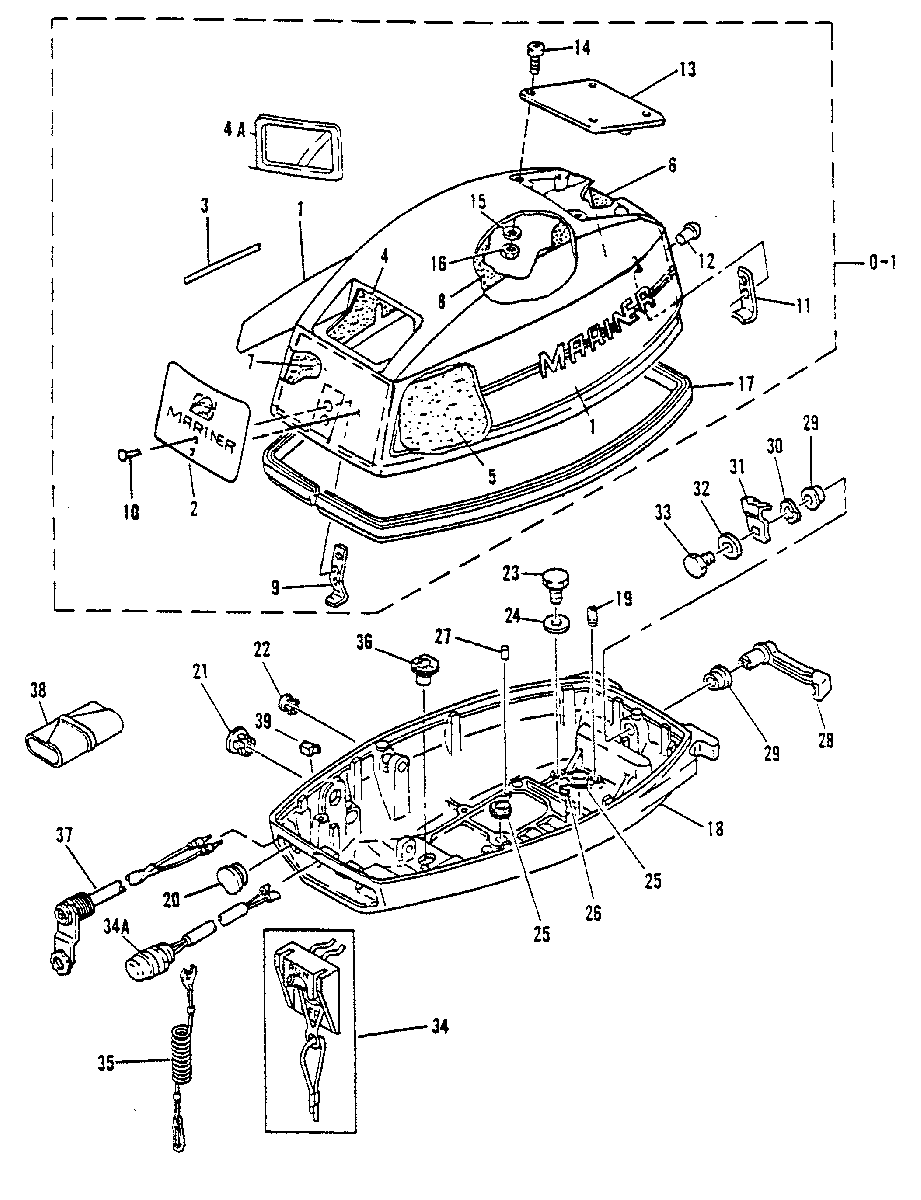

COWLING для Mariner - 15C M-684-000101 AND UP
-
№АртикулНазвание
-
0-12168-9345M TOP COWLING ASSSEMBLYTOP COWLING ASSSEMBLY
-
137-11927M SIDE DECAL SETSIDE DECAL SET
-
237-11928M FRONT EMBLEMFRONT EMBLEM
-
337-81202M SHIFT DECALSHIFT DECAL
-
4A83982M SEAL (OLD DESIGN COWL)SEAL (OLD DESIGN COWL)
-
4/583125M SIDE SOUND BLANKET - DESIGN ISIDE SOUND BLANKET - DESIGN I
-
684321M BACK SOUND BLANKET - DESIGN IBACK SOUND BLANKET - DESIGN I
-
7/884323M FRONT/TOP SOUND BLANKET - DESIGN IFRONT/TOP SOUND BLANKET - DESIGN I
-
994538M HOOKHOOK
-
1017-83140M RIVETRIVET
-
1183985M HOOKHOOK
-
1217-814489M RIVETRIVET
-
1394539M AIR DUCT MOLDING - DESIGN IIAIR DUCT MOLDING - DESIGN II
-
1410-94540M SCREW - DESIGN IISCREW - DESIGN II
-
1512-17658M WASHER - DESIGN IIWASHER - DESIGN II
-
1611-94541M NUT - DESIGN IINUT - DESIGN II
-
1783983M SEALSEAL
-
1737-95547M DECAL (ELECTRIC)DECAL (ELECTRIC)
-
182168-9791M BOTTOM COWL
(M-062459, ML-336234, E-252704, EL-553589 & UP)BOTTOM COWL
(M-062459, ML-336234, E-252704, EL-553589 & UP) -
182168-9346M BOTTOM COWL
(M-062458, ML-336233, E-252703, EL-553588 & BELOW)BOTTOM COWL
(M-062458, ML-336233, E-252703, EL-553588 & BELOW) -
1922-94716M FITTINGFITTING
-
2025-83988M GROMMET (MANUAL)GROMMET (MANUAL)
-
2125-18927M GROMMET (MANUAL)GROMMET (MANUAL)
-
2225-83990M GROMMETGROMMET
-
2310-84058M BOLTBOLT
-
2412-82214M WASHERWASHER
-
2525-96595M SEALSEAL
-
2625-94542M SEALSEAL
-
2717-82364M DOWEL PINDOWEL PIN
-
2883991M LEVER ORLEVER OR
-
2923-81949M BUSHINGBUSHING
-
3013-81869M WAVE WASHERWAVE WASHER
-
3195463M CLAMP
(M-027857, ML-320603, E-251286, EL-551931 & UP)CLAMP
(M-027857, ML-320603, E-251286, EL-551931 & UP) -
3183992M CLAMP
(M-027856, ML-320602, E-251285, EL-551930 & BELOW)CLAMP
(M-027856, ML-320602, E-251285, EL-551930 & BELOW) -
3212-81794M WASHERWASHER
-
3310-84088M BOLTBOLT
-
3487-14222M LANYARD IGNITION SWITCH (DESIGN II)LANYARD IGNITION SWITCH (DESIGN II)
-
34A87-93102M STOP SWITCH (1RING/1 MALE TERMINAL)STOP SWITCH (1RING/1 MALE TERMINAL)
-
34A87-91622M STOP SWITCH (2 MALE TERMINALS)
(Stop Switch 87-91622M is not used when a Remote Bill Switch is used.STOP SWITCH (2 MALE TERMINALS)
(Stop Switch 87-91622M is not used when a Remote Bill Switch is used. -
3597756M STOPPERSTOPPER
-
3625-96596M GROMMETGROMMET
-
3784-99051M EXTENSIONEXTENSION
-
3891-803581 TOOL KITTOOL KIT
-
3926-17659M SEALSEAL
-
-27-96604M ENGINE GASKET SET
(M-062458, ML-336233, E-252703, EL-553588, & BELOW)ENGINE GASKET SET
(M-062458, ML-336233, E-252703, EL-553588, & BELOW) -
-27-18938M ENGINE GASKET SET
(M-062459, ML-336234, E-252704, EL-553589 & UP)ENGINE GASKET SET
(M-062459, ML-336234, E-252704, EL-553589 & UP)
