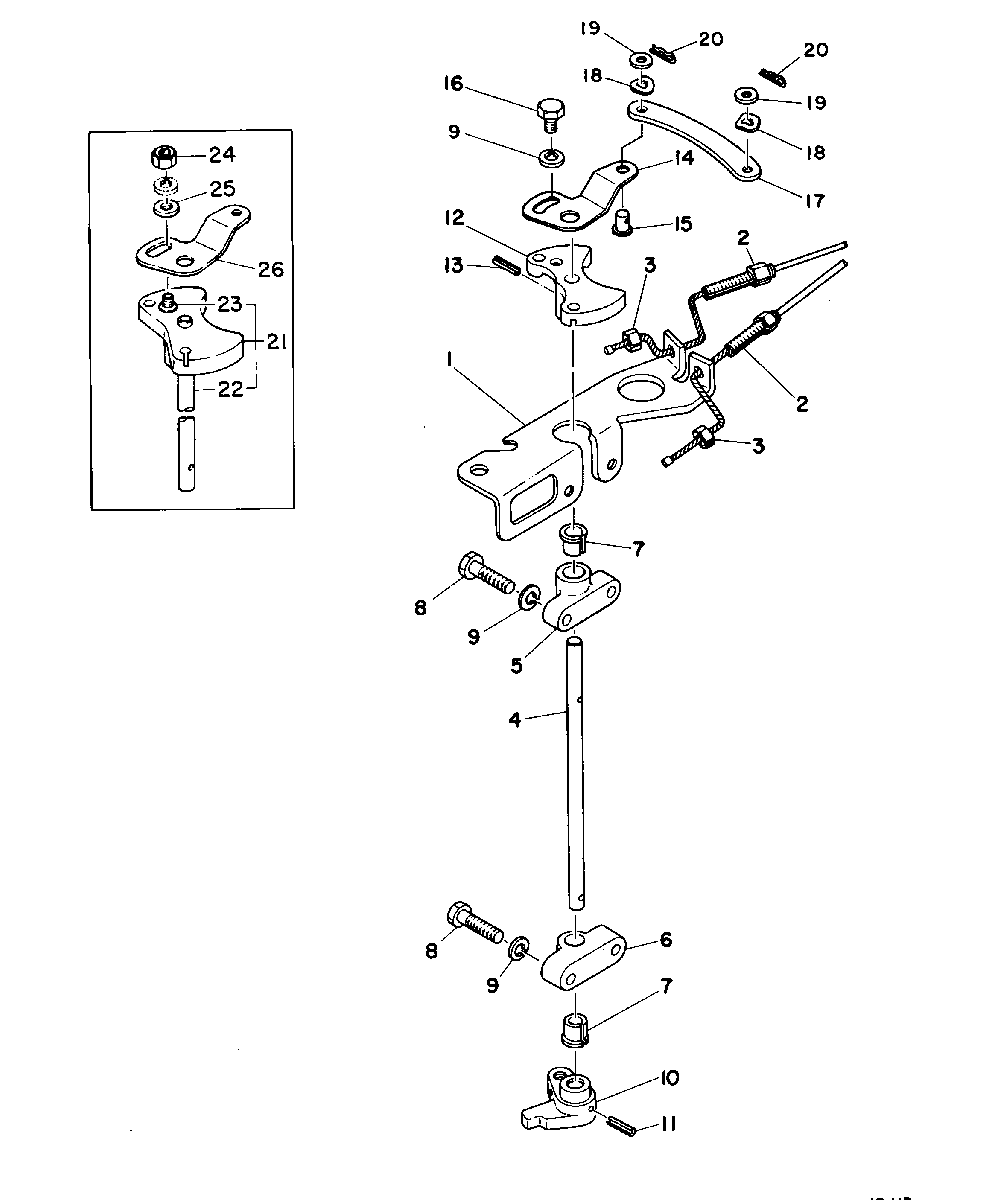

THROTTLE CONTROL LINKAGE для Mariner - 15A 651-300100 AND BELOW

  • №
    Артикул
    Название
  • 1
    80744M BRACKET,THROTTLE CABLE
    BRACKET,THROTTLE CABLE
  • 2
    80759M ADJUSTER,CABLE
    ADJUSTER,CABLE
  • 3
    11-81777M NUT,CABLE ADJUSTMENT
    NUT,CABLE ADJUSTMENT
  • 4
    80221M SHAFT,THROTTLE
    SERIAL 00000000-00012755
    SHAFT,THROTTLE
    SERIAL 00000000-00012755
  • 5
    80222M BRACKET,THROTTLE SHAFT-UPPER
    BRACKET,THROTTLE SHAFT-UPPER
  • 6
    80771M BRACKET,THROTTLE SHAFT-LOWER
    BRACKET,THROTTLE SHAFT-LOWER
  • 7
    23-81945M BUSHING,THROTTLE SHAFT
    BUSHING,THROTTLE SHAFT
  • 8
    10-82405M BOLT,SHAFT BRACKET ATTASHING
    BOLT,SHAFT BRACKET ATTASHING
  • 9
    13-82212M LOCK WASHER
    LOCK WASHER
  • 10
    80895M LEVER,THROTTLE SHAFT
    LEVER,THROTTLE SHAFT
  • 11
    17-82149M PIN,ROLL-SHAFT LEVER
    PIN,ROLL-SHAFT LEVER
  • 12
    80770M PULLEY,THROTTLE CABLE
    SERIAL 00000000-00012755
    PULLEY,THROTTLE CABLE
    SERIAL 00000000-00012755
  • 13
    17-82147M PIN,ROLLHROTTLE CABLE
    SERIAL 00000000-00012755
    PIN,ROLLHROTTLE CABLE
    SERIAL 00000000-00012755
  • 14
    80769M LEVER,MAGNETO CONTROL
    SERIAL 00000000-00012755
    LEVER,MAGNETO CONTROL
    SERIAL 00000000-00012755
  • 15
    17-80501M PIN,MANGNETO CONTROL
    PIN,MANGNETO CONTROL
  • 16
    10-91772M BOLT,CONTROL LEVER ATTACHING
    SERIAL 00000000-00012755
    BOLT,CONTROL LEVER ATTACHING
    SERIAL 00000000-00012755
  • 17
    80273M LINK,MAGNETO CONTROL
    LINK,MAGNETO CONTROL
  • 18
    13-81865M WASHER,WAVE CONTROL PIN
    WASHER,WAVE CONTROL PIN
  • 19
    12-82209M WASHER,CONTROL PIN
    WASHER,CONTROL PIN
  • 20
    18-82051M PIN
    PIN
  • 21
    82871M PULLEY,THROTTLE CABLE
    SERIAL 00012756-09999999
    PULLEY,THROTTLE CABLE
    SERIAL 00012756-09999999
  • 22
    82870M SHAFT,LINK CONNECTING
    SERIAL 00012756-09999999
    SHAFT,LINK CONNECTING
    SERIAL 00012756-09999999
  • 23
    10-82872M BOSS,LEVER
    SERIAL 00012756-09999999
    BOSS,LEVER
    SERIAL 00012756-09999999
  • 24
    11-82389M NUT
    SERIAL 00012756-09999999
    NUT
    SERIAL 00012756-09999999
  • 25
    12-82214M WASHER
    SERIAL 00012756-09999999
    WASHER
    SERIAL 00012756-09999999
  • 26
    82869M LEVER,MAGNETO CONTROL
    SERIAL 00012756-09999999
    LEVER,MAGNETO CONTROL
    SERIAL 00012756-09999999
