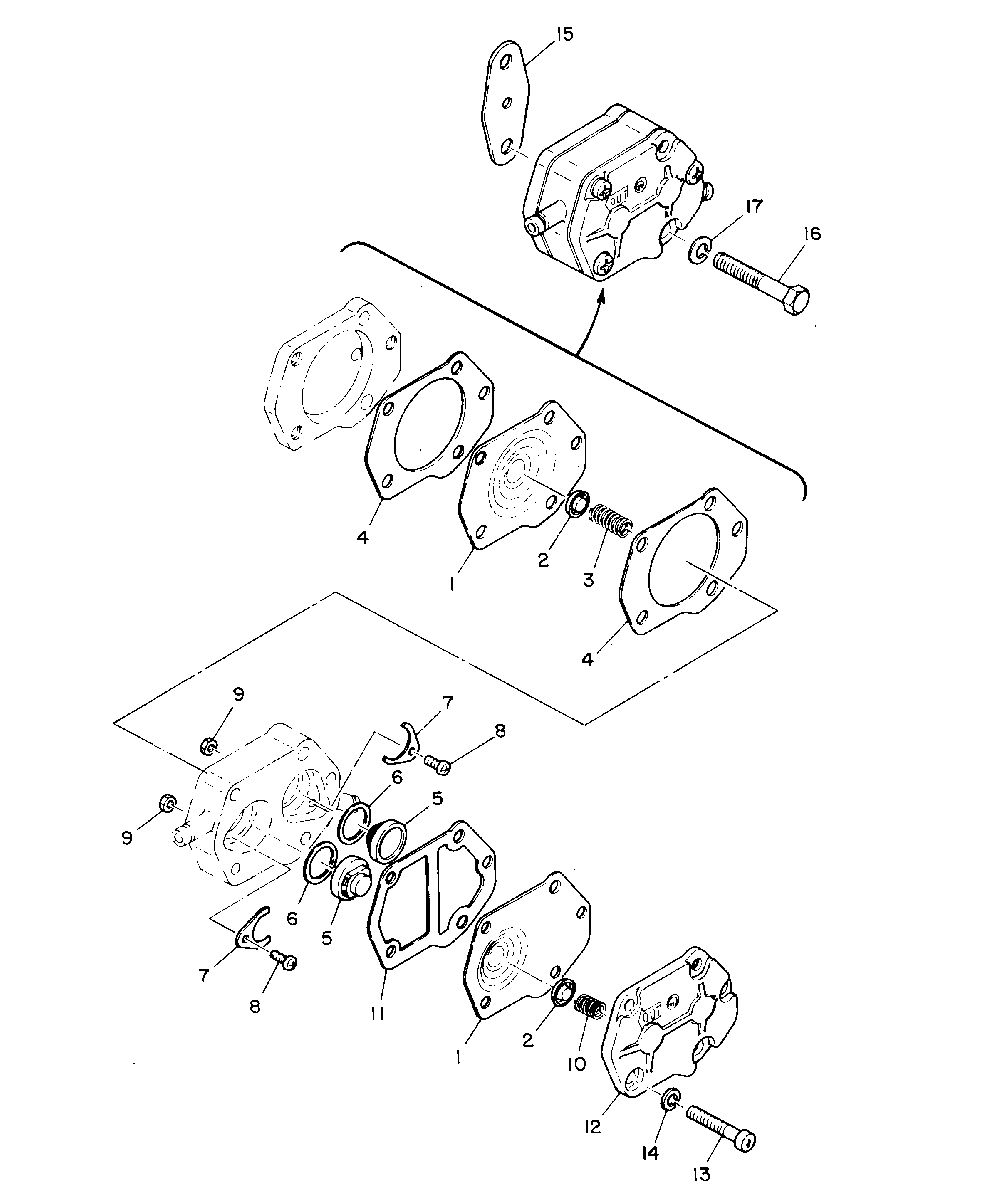

FUEL PUMP для Mariner - 15A 651-300100 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    43113T FUEL PUMP ASS'Y
    FUEL PUMP ASS'Y
  • 1
    80606M DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 2
    80611M PLATE, SPRING GUIDE
    PLATE, SPRING GUIDE
  • 3
    24-80610M SPRING, FUEL PUMP DIAPHRAGM
    SPRING, FUEL PUMP DIAPHRAGM
  • 4
    27-80613 GASKET, BODY TO BASE
    GASKET, BODY TO BASE
  • 5
    21-80608M CHECK VALVE, FUEL PUMP
    CHECK VALVE, FUEL PUMP
  • 6
    27-80612M GASKET, CHECK VALVE
    GASKET, CHECK VALVE
  • 7
    80609M RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 8
    10-82511M SCREW, RETAINER ATTACHING
    SCREW, RETAINER ATTACHING
  • 9
    11-82537M NUT, RETAINER SCREW
    NUT, RETAINER SCREW
  • 10
    24-80615M SPRING, FUEL PUMP DIAPHRAGM
    SPRING, FUEL PUMP DIAPHRAGM
  • 11
    27-80614 GASKET, BODY TO COVER
    GASKET, BODY TO COVER
  • 12
    80607M COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 13
    10-82522M SCREW, COVER ATTACHING
    SCREW, COVER ATTACHING
  • 14
    13-82186M LOCK WASHER, COVER SCREW
    LOCK WASHER, COVER SCREW
  • 15
    27-80757 GASKET, FUEL PUMP TO CRANKCASE
    GASKET, FUEL PUMP TO CRANKCASE
  • 16
    10-827043M BOLT, FUEL PUMP ATTACHING
    BOLT, FUEL PUMP ATTACHING
  • 17
    13-82212M LOCK WASHER, PUMP BOLT
    LOCK WASHER, PUMP BOLT
