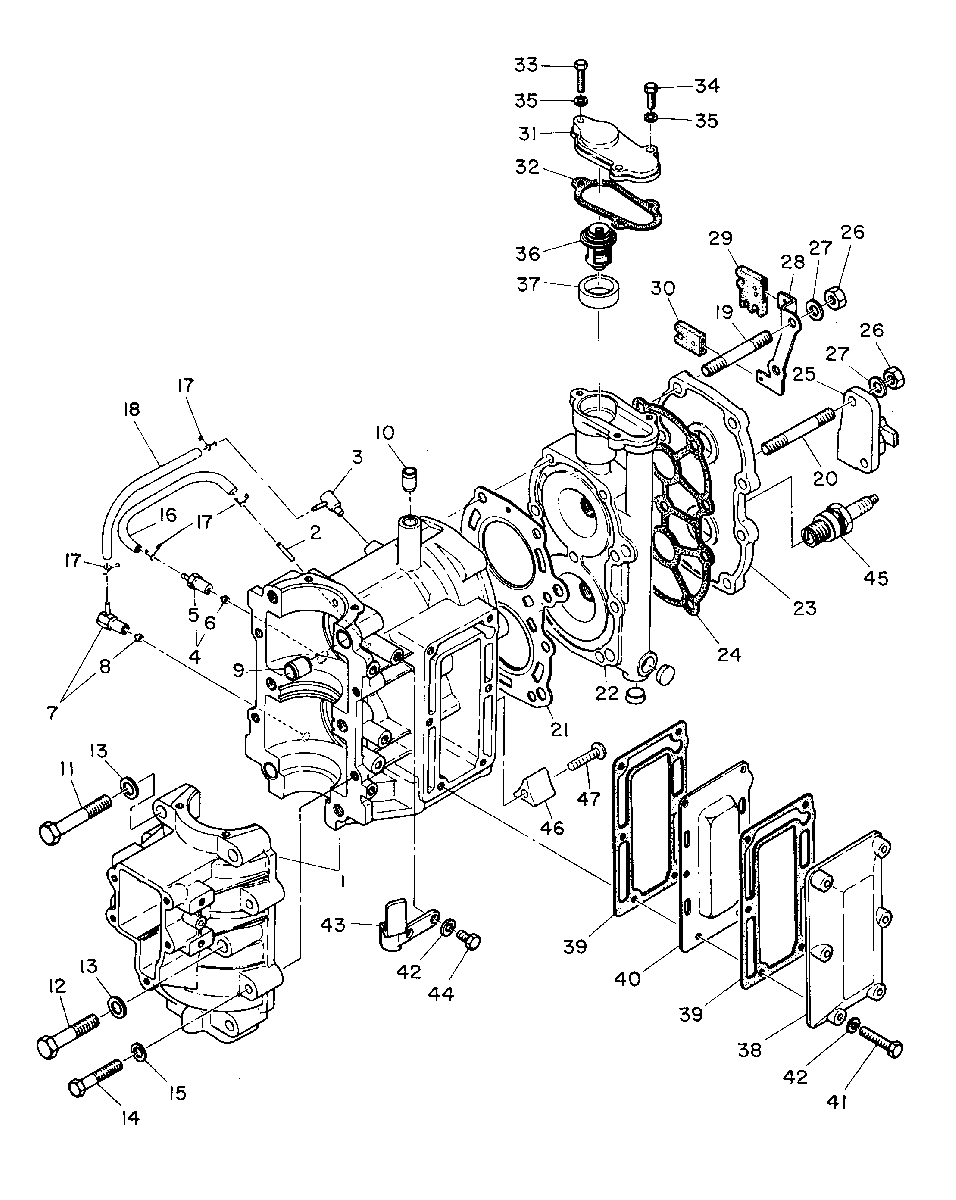

CRANKCASE AND CYLINDER HEAD для Mariner - 15A 651-300100 AND BELOW

  • №
    Артикул
    Название
  • 1
    870-6912M CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00000000-00012755
    CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00000000-00012755
  • 1
    870-6912M CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00012756-09999999
    CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00012756-09999999
  • 2
    22-80122M FITTING, CRANKCASE DRAIN
    SERIAL 00000000-00012755
    FITTING, CRANKCASE DRAIN
    SERIAL 00000000-00012755
  • 3
    22-80743M ELBOW, CRANKCASE DRAIN
    ELBOW, CRANKCASE DRAIN
  • 4
    21-80105M CHECK VALVE ASS'Y
    CHECK VALVE ASS'Y
  • 5
    761-8016M FITTING
    FITTING
  • 6
    21-80107M VALVE, CHECK
    VALVE, CHECK
  • 7
    21-80727M CHECK VALVE ASS'Y
    SERIAL 00000000-00012755
    CHECK VALVE ASS'Y
    SERIAL 00000000-00012755
  • 8
    21-80107M VALVE, CHECK
    SERIAL 00000000-00012755
    VALVE, CHECK
    SERIAL 00000000-00012755
  • 9
    17-14229M PIN, DOWEL-CRANKCASE
    PIN, DOWEL-CRANKCASE
  • 10
    17-14214M PIN, DOWEL-CYLINDER
    PIN, DOWEL-CYLINDER
  • 11
    10-82408M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 12
    10-82406M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 13
    12-81798M WASHER, CRANKCASE BOLT
    WASHER, CRANKCASE BOLT
  • 14
    10-827043M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 15
    12-81792M WASHER, CRANKCASE BOLT
    WASHER, CRANKCASE BOLT
  • 16
    32-811045M HOSE
    SERIAL 00000000-00012755
    HOSE
    SERIAL 00000000-00012755
  • 17
    54-82046M CLAMP, DRAIN HOSE
    SERIAL 00000000-00012755
    CLAMP, DRAIN HOSE
    SERIAL 00000000-00012755
  • 17
    54-82046M CLAMP, DRAIN HOSE
    SERIAL 00012755-09999999
    CLAMP, DRAIN HOSE
    SERIAL 00012755-09999999
  • 18
    32-811045M HOSE
    HOSE
  • 19
    16-81736M STUD, CYLINDER HEAD ATTACHING
    SERIAL 00000000-00012755
    STUD, CYLINDER HEAD ATTACHING
    SERIAL 00000000-00012755
  • 19
    10-82923M BOLT, CYLINDER HEAD ATTACHING
    SERIAL 00012756-09999999
    BOLT, CYLINDER HEAD ATTACHING
    SERIAL 00012756-09999999
  • 20
    16-81737M STUD, CYLINDER HEAD ATTACHING
    SERIAL 00000000-00012755
    STUD, CYLINDER HEAD ATTACHING
    SERIAL 00000000-00012755
  • 20
    10-82922M BOLT, CYLINDER HEAD ATTACHING
    SERIAL 00012756-09999999
    BOLT, CYLINDER HEAD ATTACHING
    SERIAL 00012756-09999999
  • 21
    27-80936M GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 22
    968-6759M HEAD, CYLINDER
    SERIAL 00000000-00012755
    HEAD, CYLINDER
    SERIAL 00000000-00012755
  • 22
    968-6939M HEAD, CYLINDER
    SERIAL 00012756-09999999
    HEAD, CYLINDER
    SERIAL 00012756-09999999
  • 23
    80188M COVER, CYLINDER HEAD
    SERIAL 00000000-00012755
    COVER, CYLINDER HEAD
    SERIAL 00000000-00012755
  • 24
    27-80189M GASKET, CYLINDER HEAD COVER
    SERIAL 00000000-00012755
    GASKET, CYLINDER HEAD COVER
    SERIAL 00000000-00012755
  • 25
    80888M STAY, CLAMP
    STAY, CLAMP
  • 26
    11-81766M NUT, CYLINDER HEAD BOLT
    SERIAL 00000000-00012755
    NUT, CYLINDER HEAD BOLT
    SERIAL 00000000-00012755
  • 27
    12-81797M WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
  • 28
    80934M BRACKET, IGNITION WIRE
    SERIAL 00000000-00012755
    BRACKET, IGNITION WIRE
    SERIAL 00000000-00012755
  • 28
    82883M BRACKET, IGNITION WIRE
    SERIAL 00012756-09999999
    BRACKET, IGNITION WIRE
    SERIAL 00012756-09999999
  • 29
    80932M HOLDER, IGNITION WIRE
    HOLDER, IGNITION WIRE
  • 30
    80933M HOLDER, LEAD WIRE
    HOLDER, LEAD WIRE
  • 31
    82639M COVER, THERMOSTAT .-(S-10070 L-42986)
    COVER, THERMOSTAT .-(S-10070 L-42986)
  • 31
    80732M COVER, THERMOSTAT ..(S-10071-12755 L-42987-44360)
    COVER, THERMOSTAT ..(S-10071-12755 L-42987-44360)
  • 31
    81207M COVER, THERMOSTAT ..(S-12756 L-44361)
    COVER, THERMOSTAT ..(S-12756 L-44361)
  • 32
    27-80190M GASKET, THERMOSTAT COVER .-(S-12755 L-44360)
    GASKET, THERMOSTAT COVER .-(S-12755 L-44360)
  • 32
    27-81208M GASKET, THERMOSTAT COVER ..(S-12756 L-44361)
    GASKET, THERMOSTAT COVER ..(S-12756 L-44361)
  • 33
    10-82419M BOLT, THERMOSTAT COVER ATTACHING 9-(S-12755 L-44360)
    BOLT, THERMOSTAT COVER ATTACHING 9-(S-12755 L-44360)
  • 34
    10-95473M BOLT, THERMOSTAT COVER ATTACHING .-(S-12755 L-44360)
    BOLT, THERMOSTAT COVER ATTACHING .-(S-12755 L-44360)
  • 34
    10-82405M BOLT, THERMOSTAT COVER ATTACHING ..(S-12756 L-44361)-
    BOLT, THERMOSTAT COVER ATTACHING ..(S-12756 L-44361)-
  • 35
    13-82186M LOCK WASHER, THERMOSTAT COVER BOLT .-(S-12755 L-44360)
    LOCK WASHER, THERMOSTAT COVER BOLT .-(S-12755 L-44360)
  • 35
    13-82212M LOCK WASHER, THERMOSTAT COVER BOLT ..(S-12756 L-44361)
    LOCK WASHER, THERMOSTAT COVER BOLT ..(S-12756 L-44361)
  • 36
    99080M THERMOSTAT
    THERMOSTAT
  • 37
    82640M COLLAR THERMOSTAT .-(S-10070 L-42986)
    COLLAR THERMOSTAT .-(S-10070 L-42986)
  • 37
    12-81835M COLLAR, THERMOSTAT ..(S-10071 L-42987)-
    COLLAR, THERMOSTAT ..(S-10071 L-42987)-
  • 38
    80761M COVER, EXHAUST-OUTER
    COVER, EXHAUST-OUTER
  • 39
    27-80219M GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 40
    80760M COVER, EXHAUST-INNER
    COVER, EXHAUST-INNER
  • 41
    10-83285M BOLT, EXHAUST COVER
    BOLT, EXHAUST COVER
  • 42
    13-82212M LOCK WASHER
    LOCK WASHER
  • 43
    80768M STOP, MAGENTO BASE
    STOP, MAGENTO BASE
  • 44
    10-826957M BOLT, STOP
    BOLT, STOP
  • 45
    33-8M0114739 SPARK PLUG, B-7HS (NGK)
    SPARK PLUG, B-7HS (NGK)
  • 46
    83107M ANODE .. (S-12756 L-44361)-
    ANODE .. (S-12756 L-44361)-
  • 47
    10-83108M SCREW ..(S-12756 L-44361)-
    SCREW ..(S-12756 L-44361)-
