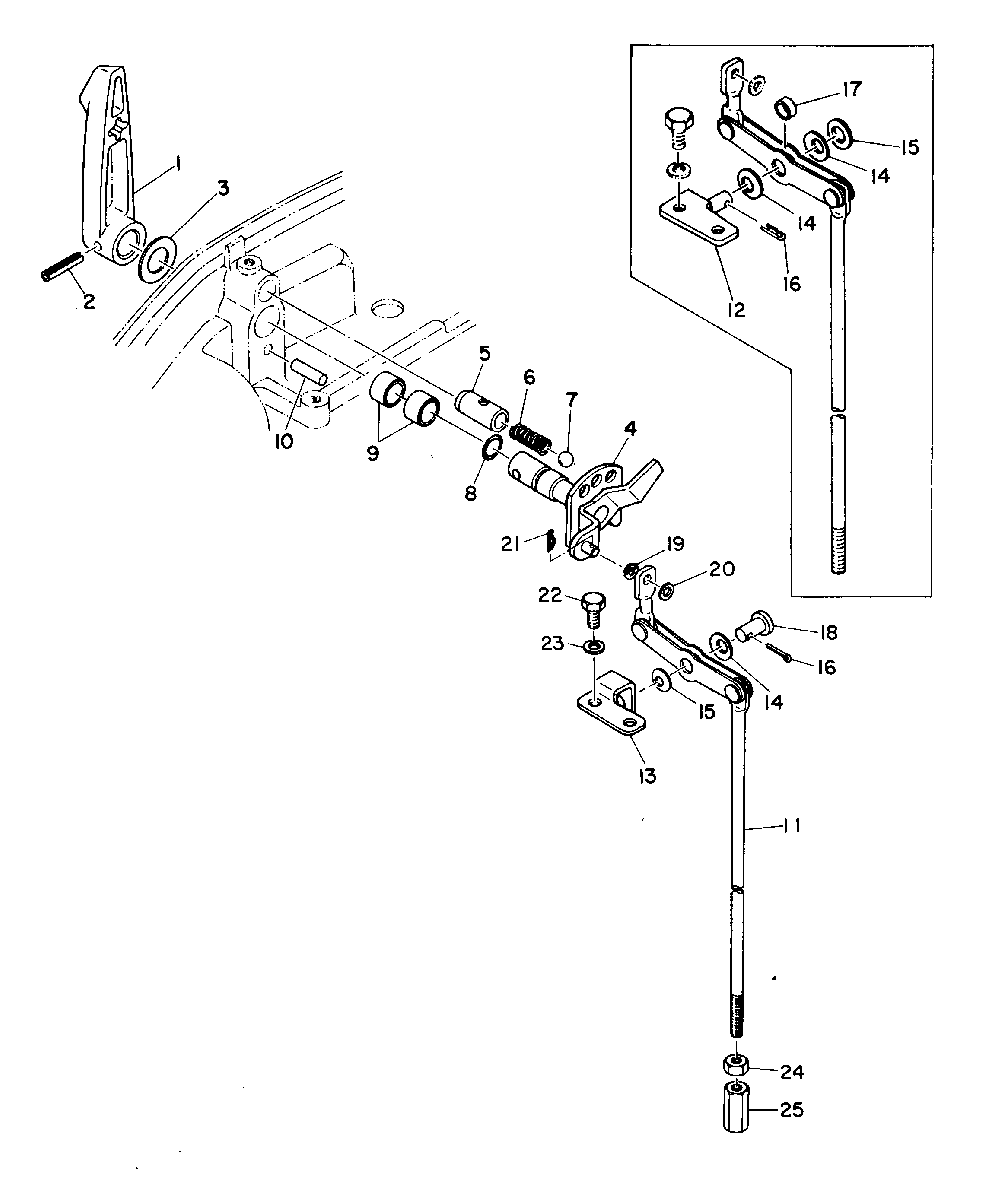

GEAR SHIFT LINKAGE для Mariner - 15A 651-300100 AND BELOW

  • №
    Артикул
    Название
  • 1
    80893M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    17-82158M PIN, SHIFT HANDLE
    PIN, SHIFT HANDLE
  • 3
    12-81856M WASHER, SHIFT HANDLE
    WASHER, SHIFT HANDLE
  • 4
    80894M CAM, SHIFT
    CAM, SHIFT
  • 5
    23-80228M RETAINER, SHIFT DETENT
    RETAINER, SHIFT DETENT
  • 6
    24-82082M SPRING, SHIFT DETENT
    SPRING, SHIFT DETENT
  • 7
    82347M BALL, SHIFT DETENT
    BALL, SHIFT DETENT
  • 8
    25-82264M O-RING, SHIFT CAM
    O-RING, SHIFT CAM
  • 9
    23-81934M BUSHING, SHIFT CAM
    BUSHING, SHIFT CAM
  • 10
    17-82366M PIN, DOWEL-SHIFT CAM STOP
    PIN, DOWEL-SHIFT CAM STOP
  • 11
    80892M SHIFT ROD ASS'Y
    SHIFT ROD ASS'Y
  • 12
    82589M BRACKET, SHIFT SHAFT
    SERIAL 00000000-00009770
    BRACKET, SHIFT SHAFT
    SERIAL 00000000-00009770
  • 13
    80896M BRACKET, SHIFT SHAFT
    SERIAL 00009771-09999999
    BRACKET, SHIFT SHAFT
    SERIAL 00009771-09999999
  • 14
    13-81867M WASHER, BRACKET
    SERIAL 00000000-00009770
    WASHER, BRACKET
    SERIAL 00000000-00009770
  • 14
    13-81867M WASHER, BRACKET
    SERIAL 00009771-09999999
    WASHER, BRACKET
    SERIAL 00009771-09999999
  • 15
    12-82217M WASHER
    WASHER
  • 16
    18-43089M PIN, SHIFT CAM
    SERIAL 00000000-00009770
    PIN, SHIFT CAM
    SERIAL 00000000-00009770
  • 16
    18-84301M PIN, SHIFT CAM
    SERIAL 00009771-00012755
    PIN, SHIFT CAM
    SERIAL 00009771-00012755
  • 16
    18-82128M PIN, SHIFT CAM
    SERIAL 00012756-09999999
    PIN, SHIFT CAM
    SERIAL 00012756-09999999
  • 17
    23-82720M COLLAR
    SERIAL 00000000-00009770
    COLLAR
    SERIAL 00000000-00009770
  • 18
    17-81886M PIN, W/HOLE
    SERIAL 00009771-09999999
    PIN, W/HOLE
    SERIAL 00009771-09999999
  • 19
    13-81865M WASHER, WAVE-SHIFT CAM
    WASHER, WAVE-SHIFT CAM
  • 20
    12-82209M WASHER, SHIFT CAM
    WASHER, SHIFT CAM
  • 21
    18-82128M PIN, BRACKET
    PIN, BRACKET
  • 22
    10-826957M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 23
    13-82212M LOCK WASHER, BRACKET BOLT
    LOCK WASHER, BRACKET BOLT
  • 24
    11-82390M NUT, JAM
    NUT, JAM
  • 25
    11-81763M CONNECTOR
    CONNECTOR
