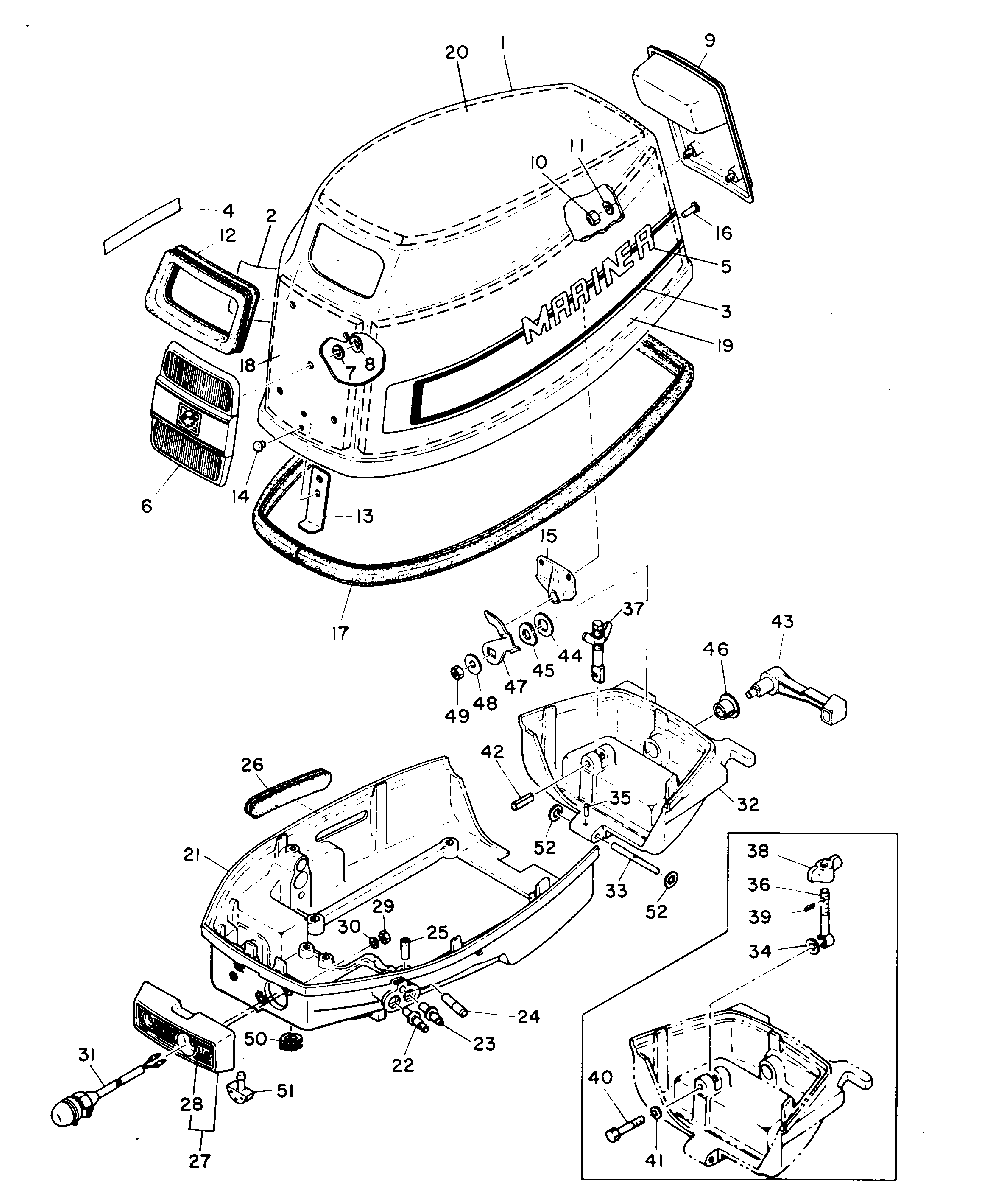

COWLING для Mariner - 15A 651-300100 AND BELOW

  • №
    Артикул
    Название
  • 1
    2168-6766M TOP COWLING ASS'Y
    TOP COWLING ASS'Y
  • 2
    37-82546M DECAL, TRIM-STARBOARD
    SERIAL 00000000-00012755
    DECAL, TRIM-STARBOARD
    SERIAL 00000000-00012755
  • 2
    37-82546M DECAL, TRIM-STARBOARD
    SERIAL 00012756-09999999
    DECAL, TRIM-STARBOARD
    SERIAL 00012756-09999999
  • 3
    37-82546M DECAL, TRIM-PORT
    SERIAL 00000000-00012755
    DECAL, TRIM-PORT
    SERIAL 00000000-00012755
  • 3
    37-82546M DECAL, TRIMPORT
    SERIAL 00012756-09999999
    DECAL, TRIMPORT
    SERIAL 00012756-09999999
  • 4
    37-81202M DECAL, F-N-R
    DECAL, F-N-R
  • 5
    37-81114M DECAL, "MARINER"-COWL
    SERIAL 00000000-00012755
    DECAL, "MARINER"-COWL
    SERIAL 00000000-00012755
  • 6
    82884M EMBLEM, FRONT
    SERIAL 00000000-00012755
    EMBLEM, FRONT
    SERIAL 00000000-00012755
  • 6
    82884M EMBLEM, FRONT
    SERIAL 00012756-09999999
    EMBLEM, FRONT
    SERIAL 00012756-09999999
  • 7
    11-82927M NUT, FRONT APPLIQUE ATTACHING
    SERIAL 00000000-00012755
    NUT, FRONT APPLIQUE ATTACHING
    SERIAL 00000000-00012755
  • 7
    11-82927M NUT, FRONT APPLIQUE ATTACHING
    SERIAL 00012756-09999999
    NUT, FRONT APPLIQUE ATTACHING
    SERIAL 00012756-09999999
  • 8
    12-80884M WASHER, APPLIQUE NUT
    SERIAL 00000000-00012755
    WASHER, APPLIQUE NUT
    SERIAL 00000000-00012755
  • 8
    12-80884M WASHER, APPLIQUE NUT
    SERIAL 00012756-09999999
    WASHER, APPLIQUE NUT
    SERIAL 00012756-09999999
  • 9
    82885M APPLIQUE, REAR
    SERIAL 00000000-00012755
    APPLIQUE, REAR
    SERIAL 00000000-00012755
  • 9
    82885M EMBLEM, REAR
    SERIAL 00012756-09999999
    EMBLEM, REAR
    SERIAL 00012756-09999999
  • 10
    11-82388M NUT, REAR APPLIQUE ATTACHING
    NUT, REAR APPLIQUE ATTACHING
  • 11
    13-82186M LOCKWASHER, APPLIQUE NUT
    LOCKWASHER, APPLIQUE NUT
  • 12
    80749M SEAL, RUBBER-STARTER
    SEAL, RUBBER-STARTER
  • 13
    80883M LATCH, COWL
    LATCH, COWL
  • 14
    17-81905M RIVET, LATCH ATTACHING
    RIVET, LATCH ATTACHING
  • 15
    80882M HOLDER, CLAMP
    HOLDER, CLAMP
  • 16
    17-81904M RIVET, HOLDER ATTACHING
    RIVET, HOLDER ATTACHING
  • 17
    95423M SEAL, TOP COWL
    SEAL, TOP COWL
  • 18
    84323M DAMPER1
    DAMPER1
  • 19
    83232M DAMPER2
    DAMPER2
  • 20
    83125M DAMPER3
    DAMPER3
  • 21
    2168-6752M BOTTOM COWL, FRONT
    SERIAL 00000000-00012755
    BOTTOM COWL, FRONT
    SERIAL 00000000-00012755
  • 21
    2168-6949M BOTTOM COWL, FRONT
    SERIAL 00012756-09999999
    BOTTOM COWL, FRONT
    SERIAL 00012756-09999999
  • 22
    22-80754M CONNECTOR, FUEL LINE
    CONNECTOR, FUEL LINE
  • 23
    22-80755M CONNECTOR, FUEL LINE
    CONNECTOR, FUEL LINE
  • 24
    17-81044M GUIDE, FUEL LINE CONNECTOR
    GUIDE, FUEL LINE CONNECTOR
  • 25
    22-94716M CONNECTOR, FUEL LINE
    CONNECTOR, FUEL LINE
  • 26
    82055M GROMMET, BOTTOM COWL-STARBOARD
    GROMMET, BOTTOM COWL-STARBOARD
  • 27
    80885M PANEL, CONTROL
    PANEL, CONTROL
  • 28
    37-83121M DECAL, CONTROL PANEL
    DECAL, CONTROL PANEL
  • 29
    11-83763M NUT, PANEL BOLT
    NUT, PANEL BOLT
  • 30
    13-82186M LOCK WASHER, PANEL BOLT
    LOCK WASHER, PANEL BOLT
  • 31
    87-91622M STOP SWITCH
    STOP SWITCH
  • 32
    2168-6867M BOTTOM COWL, REAR
    SERIAL 00000000-00009770
    BOTTOM COWL, REAR
    SERIAL 00000000-00009770
  • 32
    2168-9386M BOTTOM COWL, REAR
    SERIAL 00009771-09999999
    BOTTOM COWL, REAR
    SERIAL 00009771-09999999
  • 33
    80229M SHAFT, COWL ATTACHING
    SHAFT, COWL ATTACHING
  • 34
    12-81844M WASHER
    SERIAL 00000000-00009770
    WASHER
    SERIAL 00000000-00009770
  • 35
    17-83126M PIN, ROLL-COWL SHAFT
    PIN, ROLL-COWL SHAFT
  • 36
    10-82698M SCREW, COWL ATTACHING
    SERIAL 00000000-00009770
    SCREW, COWL ATTACHING
    SERIAL 00000000-00009770
  • 37
    10-80887M BOLT
    SERIAL 00009771-09999999
    BOLT
    SERIAL 00009771-09999999
  • 38
    11-82704M NUT, WING-COWL SCREW
    SERIAL 00000000-00009770
    NUT, WING-COWL SCREW
    SERIAL 00000000-00009770
  • 39
    18-82128M PIN, COWL SCREW
    SERIAL 00000000-00009770
    PIN, COWL SCREW
    SERIAL 00000000-00009770
  • 40
    10-83285M BOLT, COWL SCREW ATTACHING
    SERIAL 00000000-00009770
    BOLT, COWL SCREW ATTACHING
    SERIAL 00000000-00009770
  • 41
    13-82212M LOCK WASHER, COWL BOLT
    SERIAL 00000000-00009770
    LOCK WASHER, COWL BOLT
    SERIAL 00000000-00009770
  • 42
    17-82563M PIN, SPRING
    SERIAL 00009771-09999999
    PIN, SPRING
    SERIAL 00009771-09999999
  • 43
    95425M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 44
    12-81817M WASHER, COWL CLAMP LEVER
    WASHER, COWL CLAMP LEVER
  • 45
    13-81871M WASHER, WEAVE-COWL CLAMP LEVER
    WASHER, WEAVE-COWL CLAMP LEVER
  • 46
    23-81951M BUSHING, COWL CLAMP LEVER
    BUSHING, COWL CLAMP LEVER
  • 47
    80890M CLAMP, COWL
    CLAMP, COWL
  • 48
    12-81794M WASHER, COWL CLAMP
    WASHER, COWL CLAMP
  • 49
    11-82390M NUT, COWL CLAMP
    NUT, COWL CLAMP
  • 50
    83062M GROMMET
    SERIAL 00012756-09999999
    GROMMET
    SERIAL 00012756-09999999
  • 51
    80033M HOLDER, SHEAR PIN
    SERIAL 00012756-09999999
    HOLDER, SHEAR PIN
    SERIAL 00012756-09999999
  • 52
    12-81844M WASHER
    WASHER
  • 53
    37-83055M DECAL, SIDE
    DECAL, SIDE
