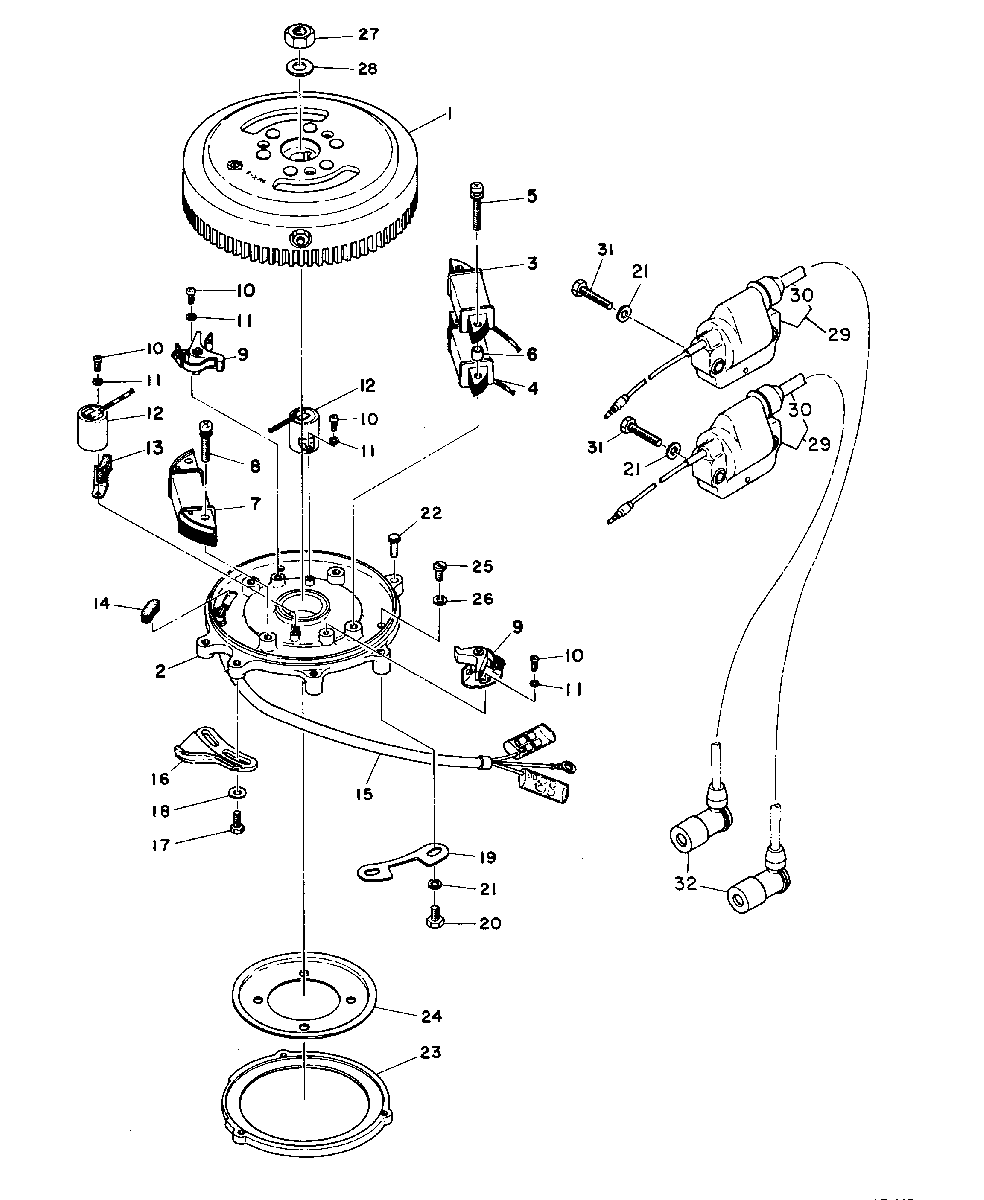

FLYWHEEL MAGNETO для Mariner - 15A 651-300100 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    80927M FLYWHEEL MAGNETO ASSY
    FLYWHEEL MAGNETO ASSY
  • 1
    80560M FLYWHEEL
    FLYWHEEL
  • 2
    80928M BASE, MAGNETO
    BASE, MAGNETO
  • 3
    80551M INGNITION COIL,#1 CYL.(TOP)
    INGNITION COIL,#1 CYL.(TOP)
  • 4
    80552M IGNITON COIL,#2CYL.(BOTTOM)
    IGNITON COIL,#2CYL.(BOTTOM)
  • 5
    10-80556M SCREW,COIL ATTACHING
    SCREW,COIL ATTACHING
  • 6
    23-80555M SPACER,COIL
    SPACER,COIL
  • 7
    80553M LIGHTING,COIL
    LIGHTING,COIL
  • 8
    10-82522M SCREW,COIL ATTACHING
    SCREW,COIL ATTACHING
  • 9
    80930M BREAKER ASSY
    BREAKER ASSY
  • 10
    10-82500M SCREW
    SCREW
  • 11
    13-82206M LOCK WASHER
    LOCK WASHER
  • 12
    80558M CONDENSER
    CONDENSER
  • 13
    80025M LUBRICATOR
    LUBRICATOR
  • 14
    25-80559M GROMMET, MAGNETO BASE
    GROMMET, MAGNETO BASE
  • 15
    84-80929M LEAD WIRE
    LEAD WIRE
  • 16
    80763M CAM, THROTTLE ADVANCE
    CAM, THROTTLE ADVANCE
  • 17
    10-82417M BOLT, CAM ATTACHING
    BOLT, CAM ATTACHING
  • 18
    12-82211M WASHER, CAM BOLT
    WASHER, CAM BOLT
  • 19
    80767M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 20
    10-826957M BOLT, STOP ATTACHING
    BOLT, STOP ATTACHING
  • 21
    12-82214M WASHER
    WASHER
  • 22
    17-81878M PIN, MAGNETO CONTROL LEVER
    PIN, MAGNETO CONTROL LEVER
  • 23
    82647M RETAINER, MAGNETO BASE-OUTER
    SERIAL 00000000-00009920
    RETAINER, MAGNETO BASE-OUTER
    SERIAL 00000000-00009920
  • 23
    81047M RETAINER, MAGNETO BASE-OUTER
    SERIAL 00009921-09999999
    RETAINER, MAGNETO BASE-OUTER
    SERIAL 00009921-09999999
  • 24
    82648M RETAINER, MAGENTO BASE-INNER
    SERIAL 00000000-00009920
    RETAINER, MAGENTO BASE-INNER
    SERIAL 00000000-00009920
  • 24
    81048M RETAINER, MAGNETO BASE-INNER
    SERIAL 00009921-09999999
    RETAINER, MAGNETO BASE-INNER
    SERIAL 00009921-09999999
  • 25
    10-83523M SCREW, RETAINER ATTACHING
    SCREW, RETAINER ATTACHING
  • 26
    13-82186M LOCK WASHER, RETAINER SCREW
    LOCK WASHER, RETAINER SCREW
  • 27
    11-81769M NUT, FLYWHEEL ATTACHING
    NUT, FLYWHEEL ATTACHING
  • 28
    12-81805M WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 29
    80931T SECONDARY IGNITION COIL ASS'Y
    SECONDARY IGNITION COIL ASS'Y
  • 30
    84-82831M LEAD, HIGH TENSION
    LEAD, HIGH TENSION
  • 31
    10-83285M BOLT, COIL ATTACHING
    BOLT, COIL ATTACHING
  • 32
    85-63709A1 PLUG CAP
    SERIAL 00000000-00012755
    PLUG CAP
    SERIAL 00000000-00012755
  • 32
    85-63709A1 PLUG CAP
    SERIAL 00012756-09999999
    PLUG CAP
    SERIAL 00012756-09999999
  • 32
    85-815119M PLUG CAP, NOISE SUPPRESSOR (OPTIONAL)
    PLUG CAP, NOISE SUPPRESSOR (OPTIONAL)
  • 32
    85-63709A1 PLUG CAP (OPTIONAL)
    PLUG CAP (OPTIONAL)
