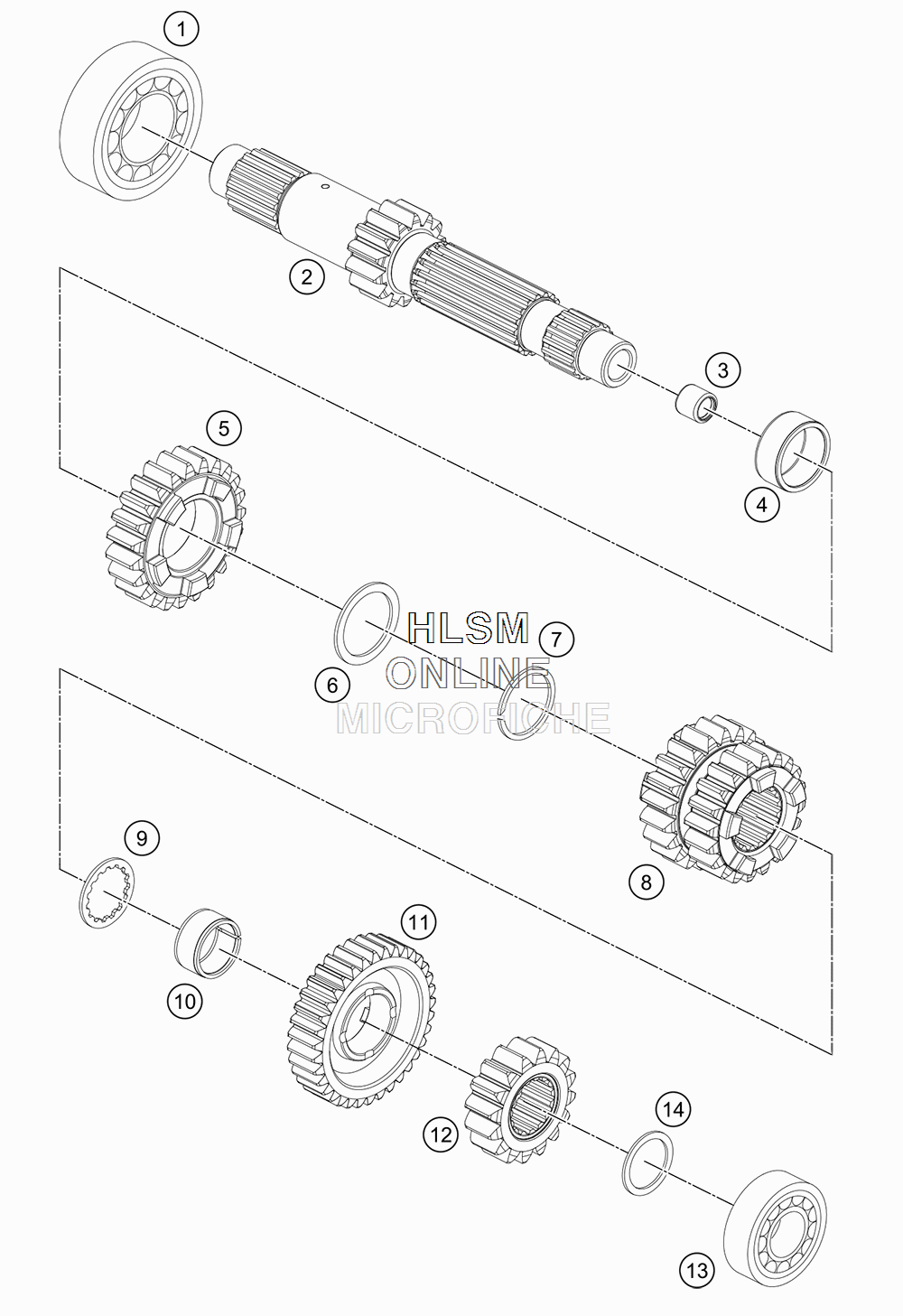

TRANSMISSION I - MAIN SHAFT для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0625062062 BALL BEARING 6206 C3 J1 NSK
    BALL BEARING 6206 C3 J1 NSK
  • 2
    60333001000 MAIN SHAFT 12T
    MAIN SHAFT 12T
  • 3
    0618091312 NEEDLE BUSH HK0912 9/13/12
    NEEDLE BUSH HK0912 9/13/12
  • 4
    0405263113 NEEDLE BEAR. K 26-31-13
    NEEDLE BEAR. K 26-31-13
  • 5
    60333005000 IDLER GEAR 5. GEAR
    IDLER GEAR 5. GEAR
  • 6
    61233042000 STOP DISK 27,9/35,75/1,5
    STOP DISK 27,9/35,75/1,5
  • 7
    0417270150 LOCK RING SW 27
    LOCK RING SW 27
  • 8
    60333003000 SLIDING GEAR 3./4. GEAR
    SLIDING GEAR 3./4. GEAR
  • 9
    61233041000 STOP DISK 22,2/30,2/1,5
    STOP DISK 22,2/30,2/1,5
  • 10
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 11
    60433006000 IDLE GEAR 6. GEAR
    IDLE GEAR 6. GEAR
  • 12
    60333002000 SOLID GEAR 2ND GEAR
    SOLID GEAR 2ND GEAR
  • 13
    0625062040 BALL BEARING 6204 DU J1 C3
    BALL BEARING 6204 DU J1 C3
  • 14
    60033040015 STOP DISK 20,2X28X1,5
    STOP DISK 20,2X28X1,5
  • 14
    60033040016 STOP DISK 20,2/28/1,6
    STOP DISK 20,2/28/1,6
  • 14
    60033040017 STOP DISK 20,2/28/1,7
    STOP DISK 20,2/28/1,7
  • 14
    60033040018 STOP DISK 20,2/28/1,8
    STOP DISK 20,2/28/1,8
  • 14
    60033040019 STOP DISK 20,2/28/1,9
    STOP DISK 20,2/28/1,9
  • 14
    60033040020 STOP DISK 20,2/28/2,0
    STOP DISK 20,2/28/2,0
  • 14
    60033040021 STOP DISK 20,2/28/2,1
    STOP DISK 20,2/28/2,1
  • 14
    60033040022 STOP DISK 20,2/28/2,2
    STOP DISK 20,2/28/2,2
