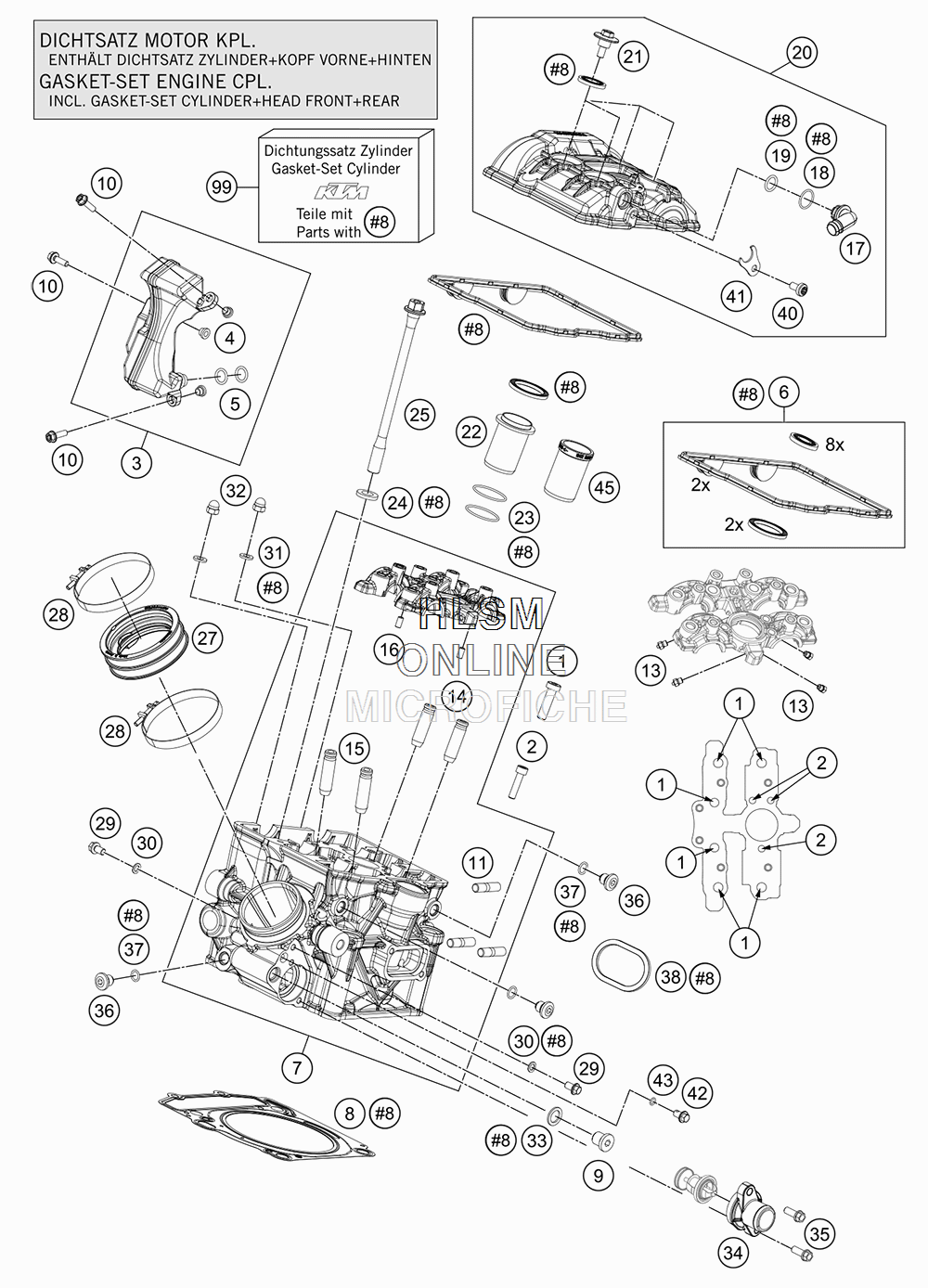

CYLINDER HEAD REAR для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0984080305 AH SCREW DIN7984-M 8X30 10.9
    AH SCREW DIN7984-M 8X30 10.9
  • 2
    0912060255 AH SCREW DIN0912-M 6X25 10.9
    AH SCREW DIN0912-M 6X25 10.9
  • 3
    60736065000 RESONA TOR KPL.
    RESONA TOR KPL.
  • 4
    78003023070 SPACER BUSH. SPRING BRACKET
    SPACER BUSH. SPRING BRACKET
  • 6
    61236099100 VALVE COVER GASKET SET
    VALVE COVER GASKET SET
  • 7
    6073612000024 CYLINDER HEAD REAR
    CYLINDER HEAD REAR
  • 8
    61330036085 CYLINDER HEAD GASKET 0,85
    CYLINDER HEAD GASKET 0,85
  • 9
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 10
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 11
    0835080165 STUD M 8X16
    STUD M 8X16
  • 13
    60030063050 OIL JET 50
    OIL JET 50
  • 14
    61236026001 VALVE GUIDE EXHAUST
    VALVE GUIDE EXHAUST
  • 15
    61236025001 VALVE GIUDE INTAKE 6MM
    VALVE GIUDE INTAKE 6MM
  • 16
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 17
    61236082100 CONNECTING ANGLE
    CONNECTING ANGLE
  • 18
    0770150151 O-RING 15,00X1,50 VITON
    O-RING 15,00X1,50 VITON
  • 19
    0770120020 O-RING 12,00X2,00 NBR 70
    O-RING 12,00X2,00 NBR 70
  • 20
    6123615214433 VALVE COVER REAR
    VALVE COVER REAR
  • 21
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 22
    61336075100 SPARK PLUG SHAFT
    SPARK PLUG SHAFT
  • 23
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 24
    61236079050 WASHER 11,1X20X3
    WASHER 11,1X20X3
  • 25
    61236079000 CYLINDER HEAD SCREW
    CYLINDER HEAD SCREW
  • 27
    61336044000 INTAKE BOOT
    INTAKE BOOT
  • 28
    61336048000 HOSE CLAMP GEMI 75
    HOSE CLAMP GEMI 75
  • 29
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 30
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 31
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 32
    61230045000 CAP NUT M6 STAINLESS STEEL
    CAP NUT M6 STAINLESS STEEL
  • 33
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 34
    61235019100 WATER CONNECTION CPL.
    WATER CONNECTION CPL.
  • 35
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 36
    77336056095 SCREW PLUG
    SCREW PLUG
  • 37
    07700900151 O-RING 9X1,5 V80 SH
    O-RING 9X1,5 V80 SH
  • 38
    69005005100 EXHAUST PIPE FLANGE GASKET
    EXHAUST PIPE FLANGE GASKET
  • 40
    0080060123 SCREW M6X12 ISA30
    SCREW M6X12 ISA30
  • 41
    61236082150 CONNECTING ANGLE RETAIN. PLATE
    CONNECTING ANGLE RETAIN. PLATE
  • 42
    59036006090 VENT SCREW M6X10 CPL.
    VENT SCREW M6X10 CPL.
  • 43
    0770050012 O-RING 5,0X1,2 NBR 70
    O-RING 5,0X1,2 NBR 70
  • 45
    61336074100 INSERT SPARK-PLUG SHAFT
    INSERT SPARK-PLUG SHAFT
  • 99
    61330097000 GASKET SET CYLINDER+HEAD F+R
    GASKET SET CYLINDER+HEAD F+R
