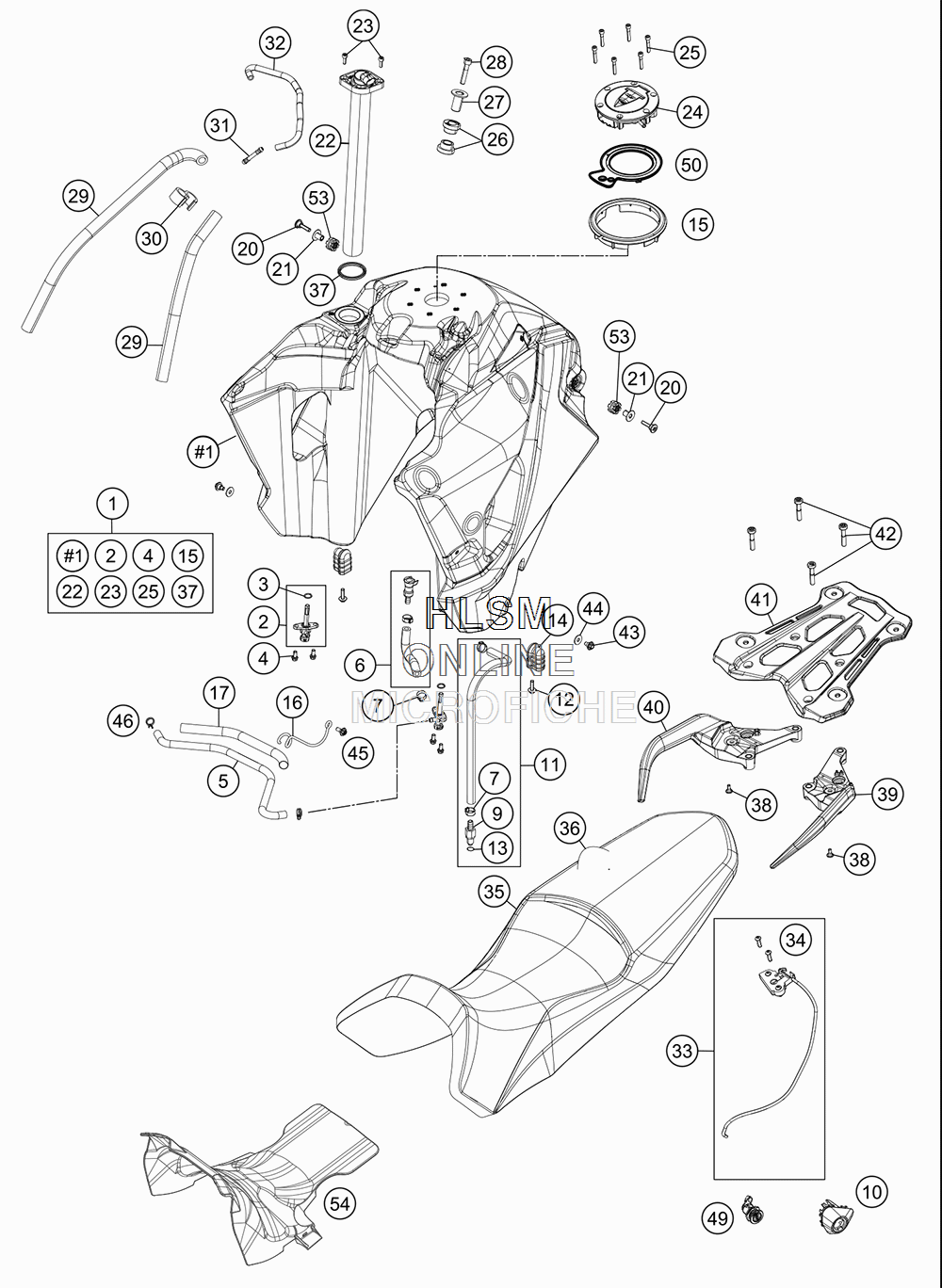

TANK- SEAT- COVER для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска`
-
№АртикулНазвание
-
16070701304433 FUEL TANK ADVENTURE CPL.FUEL TANK ADVENTURE CPL.
-
258507003200 FUEL COCK CPL.FUEL COCK CPL.
-
30770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
40025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
560307018000 EXPANSION HOSE FUEL TANKEXPANSION HOSE FUEL TANK
-
660307017000 FUEL HOSE TANK/CONNECTORFUEL HOSE TANK/CONNECTOR
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
95850701030030 PLUG CPC BLACKPLUG CPC BLACK
-
1060307053000 SEAT LOCK COVERSEAT LOCK COVER
-
1160307016050 FUEL PIPE 1FUEL PIPE 1
-
120024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1358507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
1460307020000 TANK RUBBERTANK RUBBER
-
1560307009000 TANK CAP RINGTANK CAP RING
-
1660707037000 WIRE HANGER FOR FUEL HOSEWIRE HANGER FOR FUEL HOSE
-
1760307016010 HEAT PROTECTIONHEAT PROTECTION
-
2060307025000 SPECIAL SCREW M6X32.5 ISA 40SPECIAL SCREW M6X32.5 ISA 40
-
2169007028000 COLLAR BUSH. 6,2X10X21X14MM 08COLLAR BUSH. 6,2X10X21X14MM 08
-
2260307080000 GAS LEVEL SENSORGAS LEVEL SENSOR
-
230912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
2460707008000 FUEL TANK CAP RACE-ONFUEL TANK CAP RACE-ON
-
250912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
2661007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
2761007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
280912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
2960007126001 HOSE 5,4X9,4 NBR, METERHOSE 5,4X9,4 NBR, METER
-
3060038039000 DISTANCE HOLDER 10/10 BLACKDISTANCE HOLDER 10/10 BLACK
-
3169015019010 HOSE CONNECTION STRAIGHTHOSE CONNECTION STRAIGHT
-
3260307008150 HOSE TANK BREAT.HOSE TANK BREAT.
-
3360307050000 SEAT LOCK CPL.SEAT LOCK CPL.
-
340738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
3560307140100 SEATSEAT
-
3660307140050 SEAT COVERINGSEAT COVERING
-
3760307080090 GASKET FUEL LEVEL SENSORGASKET FUEL LEVEL SENSOR
-
3869013099050 SCREW F. EXPANSION TANKSCREW F. EXPANSION TANK
-
396031200810030 GRIP L/S BLACKGRIP L/S BLACK
-
406031200920030 HAND GRIP R/SHAND GRIP R/S
-
416031201000033S BAGGAGE CARRIER BRIDGEBAGGAGE CARRIER BRIDGE
-
420035080406 AH-COLLAR SCREW M8X40 ISA45AH-COLLAR SCREW M8X40 ISA45
-
4359001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
440021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
450024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
4658031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
4960307050020 LOCK CYLINDER SEAT LOCKLOCK CYLINDER SEAT LOCK
-
5060307008190 GASKET TANK CAPGASKET TANK CAP
-
5369007027000 RUBBER SLEEVE TANK MOUNTRUBBER SLEEVE TANK MOUNT
-
5460707045000 HEAT PROTECTION SHELLHEAT PROTECTION SHELL
