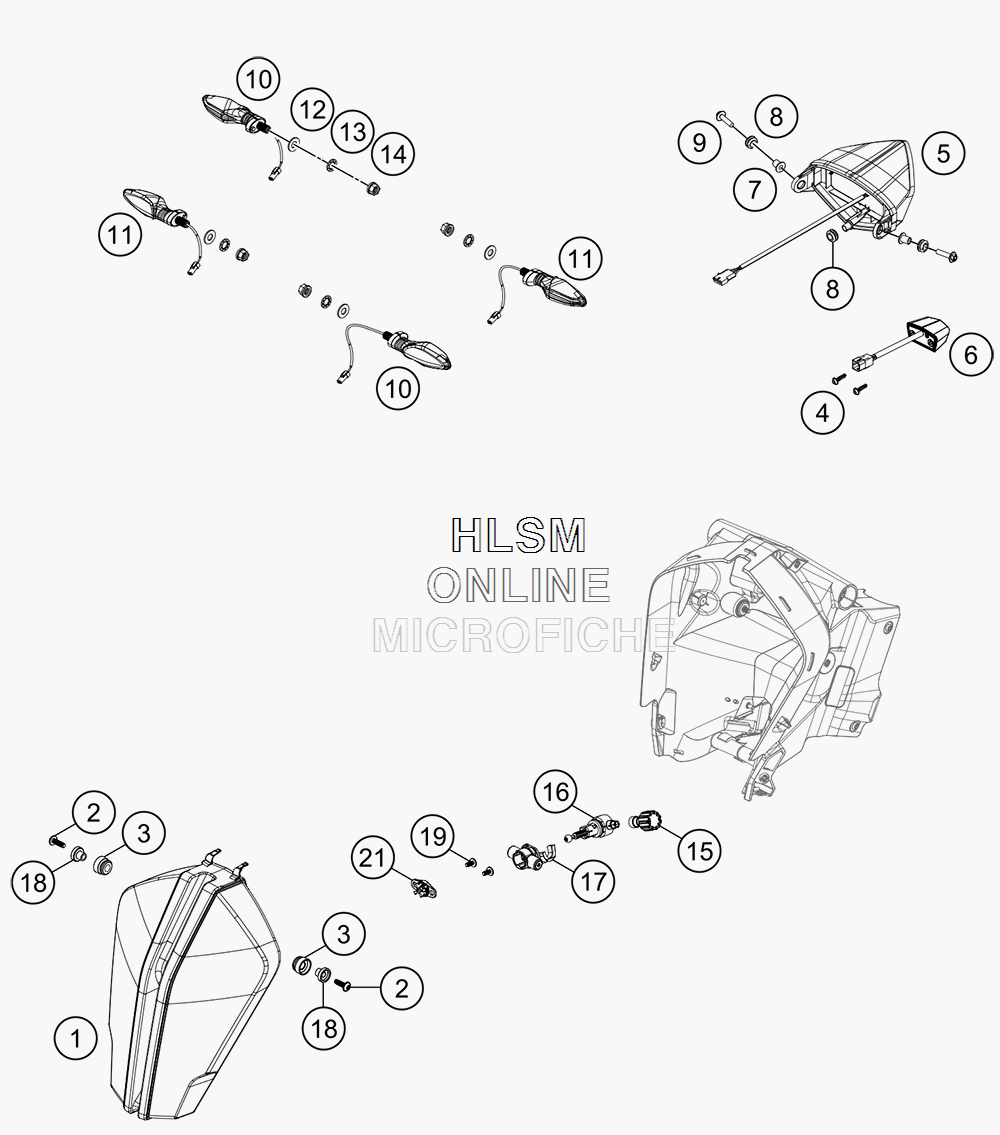

LIGHTING SYSTEM для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    60714001000 HEADLIGHT LED TFL
    HEADLIGHT LED TFL
  • 2
    60714014200 EJOT ALTRACS 5161 60X20
    EJOT ALTRACS 5161 60X20
  • 3
    60714011060 PLUG-IN ELEMENT HEADLIGHT
    PLUG-IN ELEMENT HEADLIGHT
  • 4
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 5
    60314040000 REAR LIGHT
    REAR LIGHT
  • 6
    60314047000 NUMBER PLATE LIGHT
    NUMBER PLATE LIGHT
  • 7
    60308006000 COLLAR BUSHING 6,2X9,2X15X12,5
    COLLAR BUSHING 6,2X9,2X15X12,5
  • 8
    60006001022 RUB.SLEEVE FLOAT CHAMB.VENTING
    RUB.SLEEVE FLOAT CHAMB.VENTING
  • 9
    0024060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 10
    78114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 11
    78114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 12
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 13
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 14
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 15
    60714023000 THUMBWHEEL HEADLIGHT ADJUST.
    THUMBWHEEL HEADLIGHT ADJUST.
  • 16
    60714020000 HEADLIGHT ADJUSTER
    HEADLIGHT ADJUSTER
  • 17
    60714024100 HEADLIGHT SUPPORT
    HEADLIGHT SUPPORT
  • 18
    60714011050 BUSHING
    BUSHING
  • 19
    61614018100 EJOT AL TRACS 50X12
    EJOT AL TRACS 50X12
  • 21
    61614020100 BALLHEAD HOLDER
    BALLHEAD HOLDER
