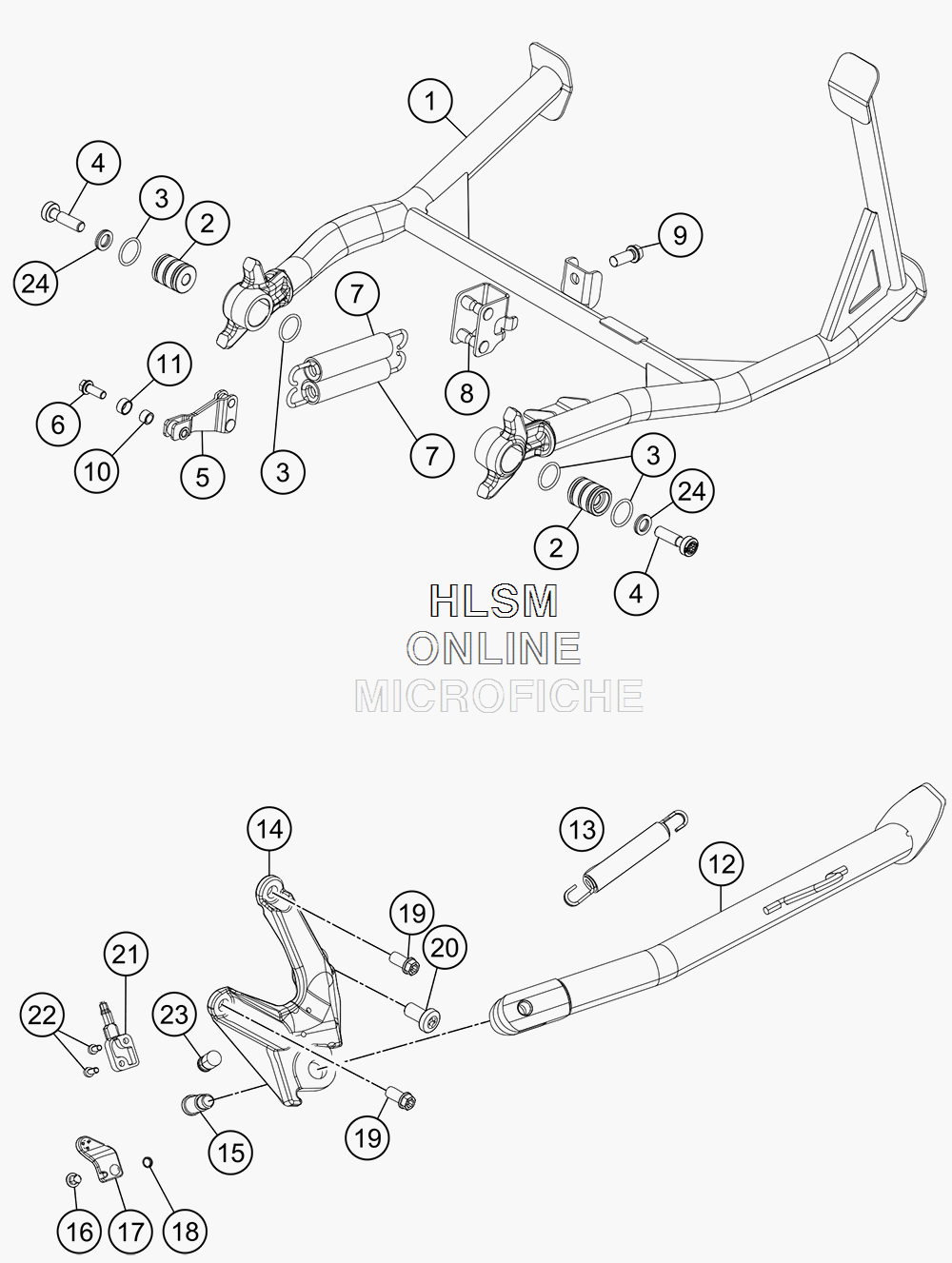

SIDE / CENTER STAND для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    6030302210033 MAIN STAND
    MAIN STAND
  • 2
    60303022007 BUSHING SUPPORT CENTRAL
    BUSHING SUPPORT CENTRAL
  • 3
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 4
    0035080356S SCREW M8X35 ISA45 SS
    SCREW M8X35 ISA45 SS
  • 5
    60303022025 SPRING SUPPORT FRONT CPL.
    SPRING SUPPORT FRONT CPL.
  • 6
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 7
    60303030100 SIDESTAND SPRING L=118MM
    SIDESTAND SPRING L=118MM
  • 8
    60303022026 SPRING SUPPORT REAR CPL.
    SPRING SUPPORT REAR CPL.
  • 9
    0025080206 HH COLLAR SCREW M8X20
    HH COLLAR SCREW M8X20
  • 10
    60303022031 BUSHING SPRINGSUPPORT FRONT
    BUSHING SPRINGSUPPORT FRONT
  • 11
    60303022032 BUSHING SPRING SUPPORT FRONT
    BUSHING SPRING SUPPORT FRONT
  • 12
    6030302310033 SIDE STAND CPL.
    SIDE STAND CPL.
  • 13
    60303024100 SIDE STAND SPRING
    SIDE STAND SPRING
  • 14
    6030302610033S SIDE STAND BRACKET
    SIDE STAND BRACKET
  • 15
    62503027200 SCREW FOR SIDE STAND M10X31,2
    SCREW FOR SIDE STAND M10X31,2
  • 16
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 17
    60303029050 MAGNET HOLDER
    MAGNET HOLDER
  • 18
    60303029051 BUSHING MAGNET HOLDER
    BUSHING MAGNET HOLDER
  • 19
    0025080166 HH COLLAR SCREW M8X16
    HH COLLAR SCREW M8X16
  • 20
    0035100309S AH-COLLAR SCREW M10X30 ISA45
    AH-COLLAR SCREW M10X30 ISA45
  • 21
    60411045000 SIDE STAND SENSOR
    SIDE STAND SENSOR
  • 22
    0084040123 CYL.HEAD SCREW DIN84A M4X12
    CYL.HEAD SCREW DIN84A M4X12
  • 23
    60303023111 RETAINING BOLT
    RETAINING BOLT
  • 24
    60303022035 NORDLOCK WASHERS M8
    NORDLOCK WASHERS M8
