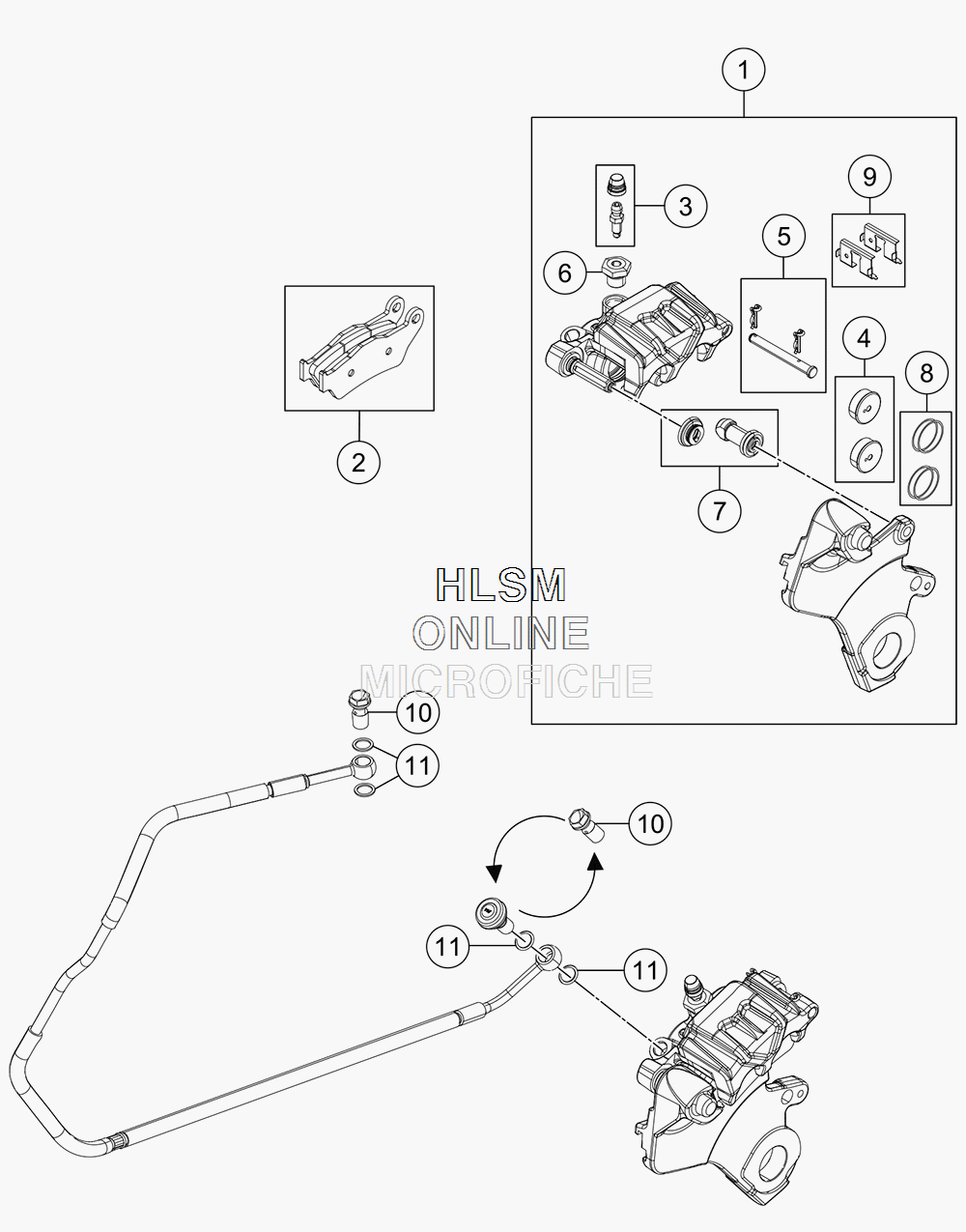

REAR BRAKE CALIPER для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска
-
№АртикулНазвание
-
16031308010130 BRAKE CALIPER REAR W/O PADSBRAKE CALIPER REAR W/O PADS
-
250313030000 BRAKE PAD SET FR. TOSHIBA H38BRAKE PAD SET FR. TOSHIBA H38
-
360013020200 BLEEDER SCREW WITH CAP M6BLEEDER SCREW WITH CAP M6
-
460013083200 BRAKE PISTONSBRAKE PISTONS
-
577013017000 BOLT CPL.BOLT CPL.
-
660013020100 ADAPTER SCREWADAPTER SCREW
-
754613218000 CUP SET SHORTCUP SET SHORT
-
860013081000 REP.KIT SEALING RINGSREP.KIT SEALING RINGS
-
960013018100 RETAINING PLATE SET REARRETAINING PLATE SET REAR
-
1062113020100 HOLL. SCREW M10X1X19.5HOLL. SCREW M10X1X19.5
-
110603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
