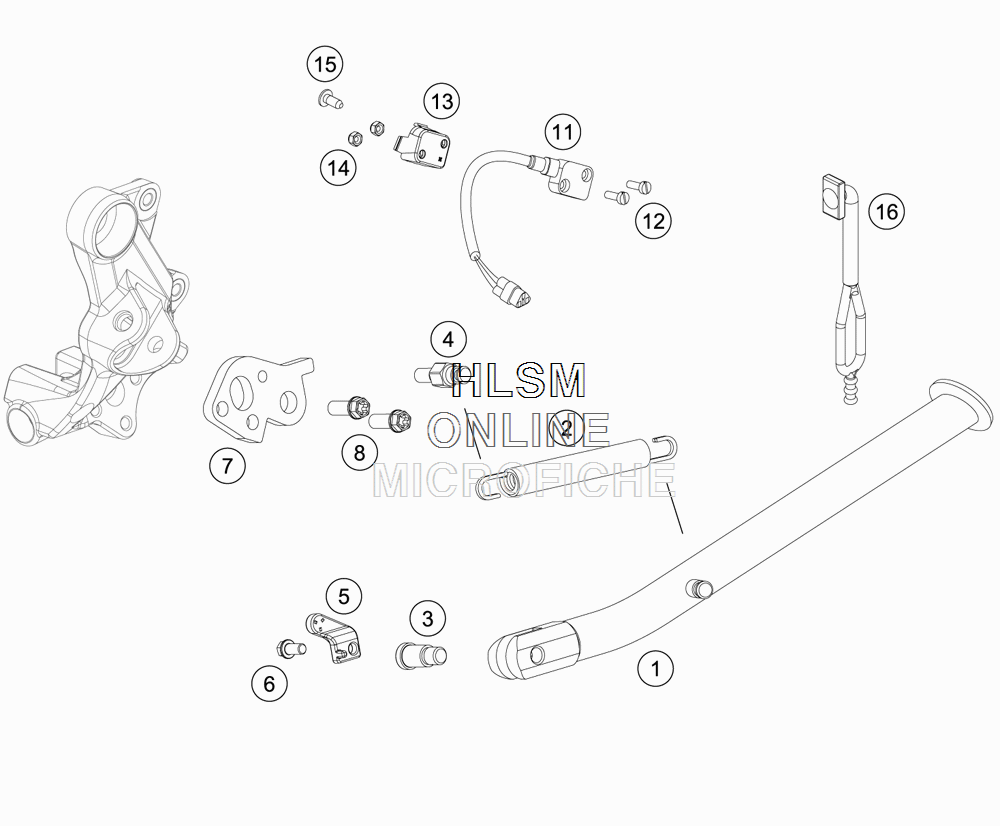

SIDE / CENTER STAND для Ktm 690 ENDURO R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7650312300033 SIDE ST AND L=295MM ENDURO
    SIDE ST AND L=295MM ENDURO
  • 2
    61003024000 SPRING L=116 MM
    SPRING L=116 MM
  • 3
    62503027200 SCREW FOR SIDE ST AND M10X31,2
    SCREW FOR SIDE ST AND M10X31,2
  • 4
    76503028001 SPECIAL SCR. SIDE ST AND SPRING
    SPECIAL SCR. SIDE ST AND SPRING
  • 5
    76503029000 MAGNET HOLDER
    MAGNET HOLDER
  • 6
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 7
    76503026000 SIDE ST AND BRACKET
    SIDE ST AND BRACKET
  • 8
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 11
    61011045000 SIDE ST AND SENSOR
    SIDE ST AND SENSOR
  • 12
    0084040123 CYL.HEAD SCREW DIN84A M4X12
    CYL.HEAD SCREW DIN84A M4X12
  • 13
    76511045050 HOLDER FOR SIDEST AND SWITCH
    HOLDER FOR SIDEST AND SWITCH
  • 14
    0985040003 SELF LOCKING NUT DIN0985-M 4
    SELF LOCKING NUT DIN0985-M 4
  • 15
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 16
    76503025000 RUBBER SIDE STAND
    RUBBER SIDE STAND
