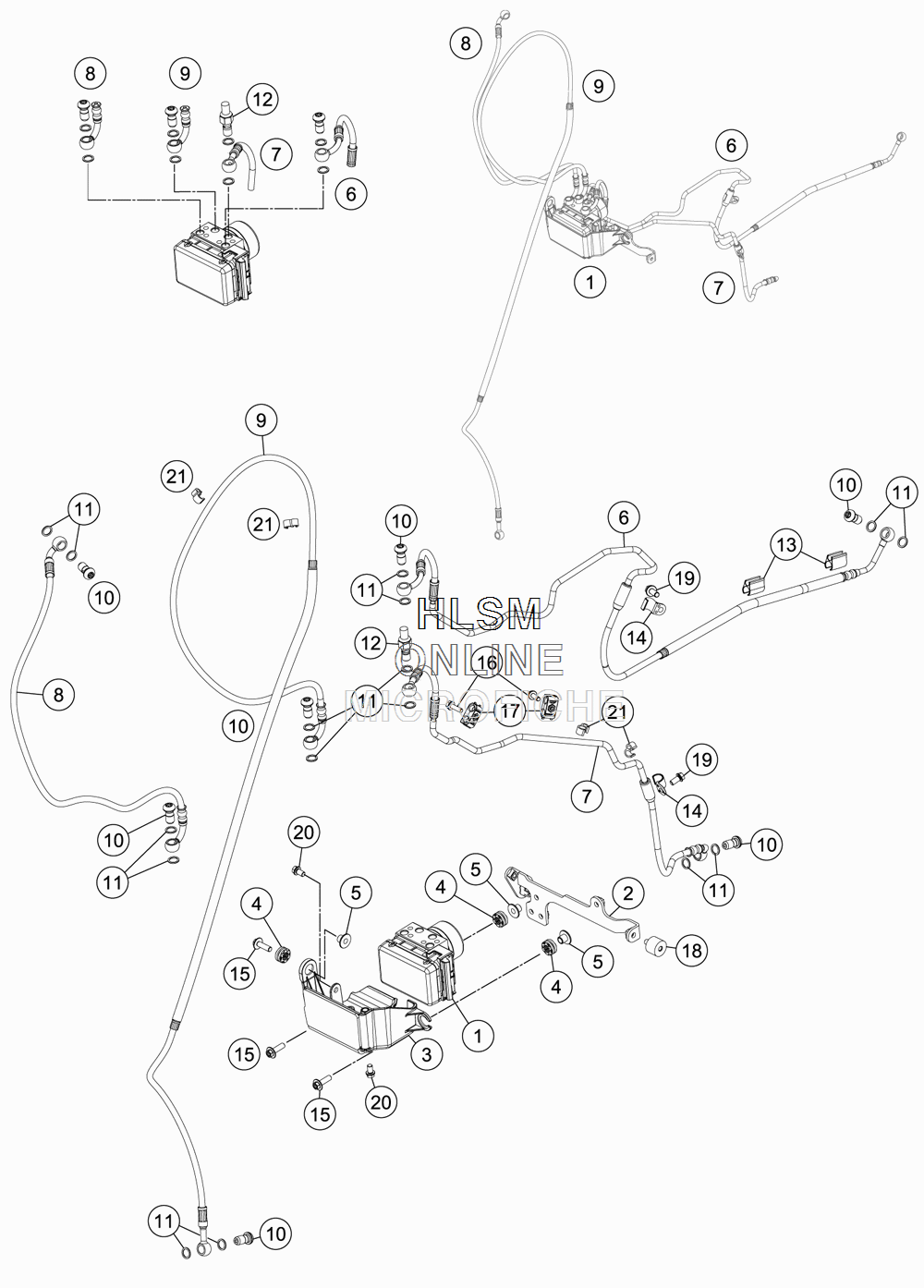

ANTILOCK BRAKING SYSTEM ABS для Ktm 690 ENDURO R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    76542031044 ABS-MODULE FILLED
    ABS-MODULE FILLED
  • 2
    76542040000 BRACKETABS-MODULE
    BRACKETABS-MODULE
  • 3
    76542030000 COVER ABS-MODULE
    COVER ABS-MODULE
  • 4
    62142041000 DAMP . COMPONENTABS MODUL
    DAMP . COMPONENTABS MODUL
  • 5
    61342041000 COLLAR BUSH 6,5X9X18X8, 5
    COLLAR BUSH 6,5X9X18X8, 5
  • 6
    76542001000 BRAKE HOSE REAR CALIPER
    BRAKE HOSE REAR CALIPER
  • 7
    76542003000 BRAKE HOSE REAR MASTER CYL.
    BRAKE HOSE REAR MASTER CYL.
  • 8
    76542005000 BRAKE HOSE HAND BRAKE CYLINDER
    BRAKE HOSE HAND BRAKE CYLINDER
  • 9
    76542006000 BRAKE HOSE FRONT CALIPER
    BRAKE HOSE FRONT CALIPER
  • 10
    62113020100 HOLL. SCREW M10X1X19.5
    HOLL. SCREW M10X1X19.5
  • 11
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 12
    62111051000 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 13
    54813026000 CABLE SUPPORT 10/6MM
    CABLE SUPPORT 10/6MM
  • 14
    76542050000 CLAMP
    CLAMP
  • 15
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 16
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 17
    60113146000 SUPPORT FOR BRAKE HOSE M5
    SUPPORT FOR BRAKE HOSE M5
  • 18
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 19
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 20
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 21
    60111094000 CLIP 5/7 MM
    CLIP 5/7 MM
