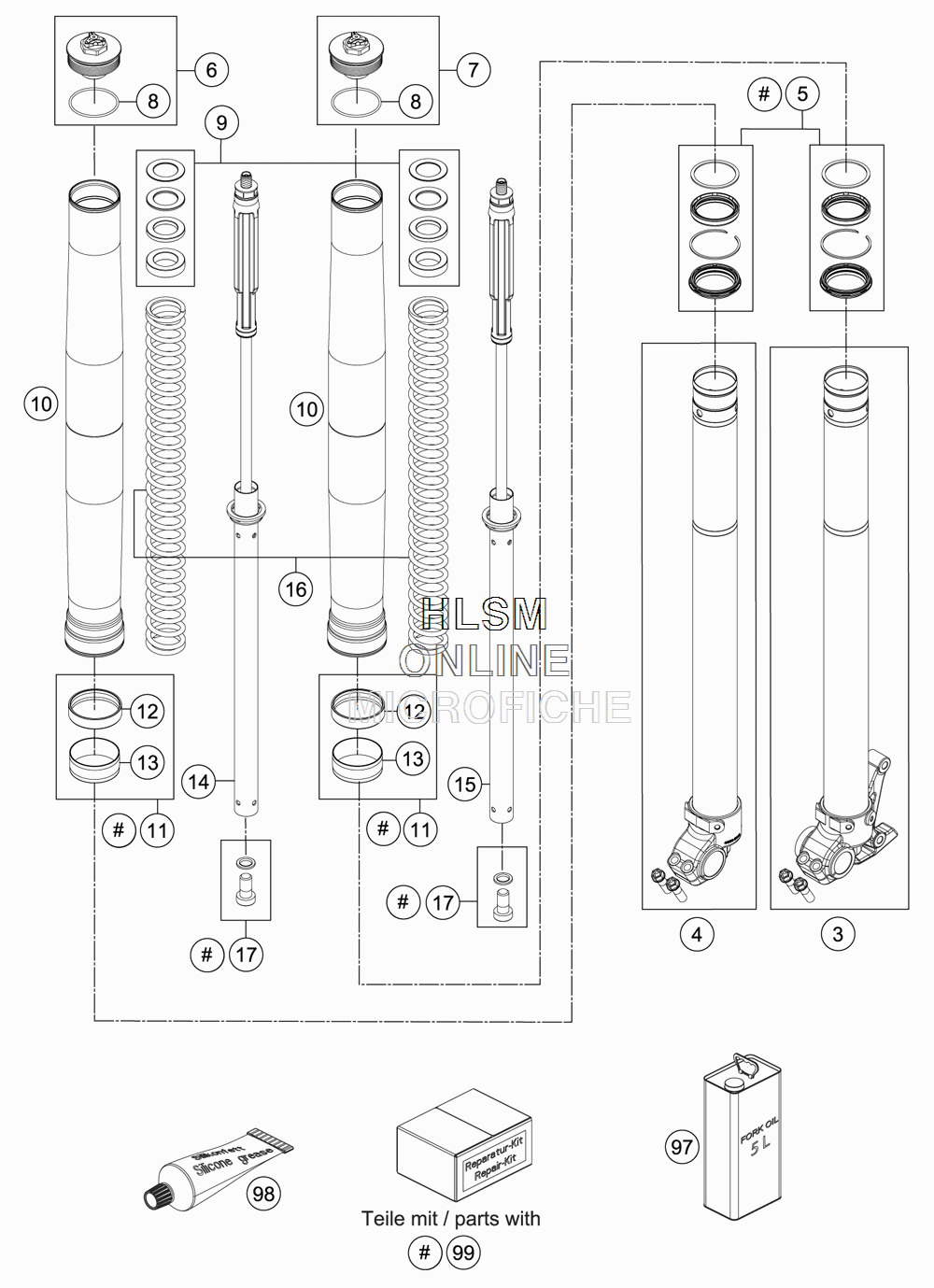

FRONT FORK DISASSEMBLED для Ktm 690 ENDURO R ABS - 2015 года выпуска
-
№АртикулНазвание
-
348601324S1 AXLE CLAMP L/S WITH TUBE CPL.AXLE CLAMP L/S WITH TUBE CPL.
-
448601325S1 AXLE CLAMP R/S WITH TUBE CPL.AXLE CLAMP R/S WITH TUBE CPL.
-
5R14040 GASKET KIT CPL.GASKET KIT CPL.
-
648601062S2 SCREW CAP M51X1.5 REBSCREW CAP M51X1.5 REB
-
748601062S3 SCREW CAP M51X1.5 COMSCREW CAP M51X1.5 COM
-
846810340 O-RING NBR 45X2O-RING NBR 45X2
-
9R14026 SPRING SPACER KITSPRING SPACER KIT
-
1048600761 OUTER TUBE L577 D54/60MMOUTER TUBE L577 D54/60MM
-
11R14028 GUIDING BUSH SETGUIDING BUSH SET
-
1248601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
1348601008 GUIDING BUSH 47X49X20 R11GUIDING BUSH 47X49X20 R11
-
1448601293S2 CARDRIDGE KIT CPL. R/SCARDRIDGE KIT CPL. R/S
-
1548601294S2 CARDRIDGE KIT CPL. L/SCARDRIDGE KIT CPL. L/S
-
1691410043S SPRING C=5,3 L=450 D=5,5SPRING C=5,3 L=450 D=5,5
-
1700501020S1 AH SCREW M10X20 SETAH SCREW M10X20 SET
-
9748601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
98T511 SILICONE GREASE F . DUST STRISILICONE GREASE F . DUST STRI
-
99R14041 REP . KIT 1290 SDREP . KIT 1290 SD
