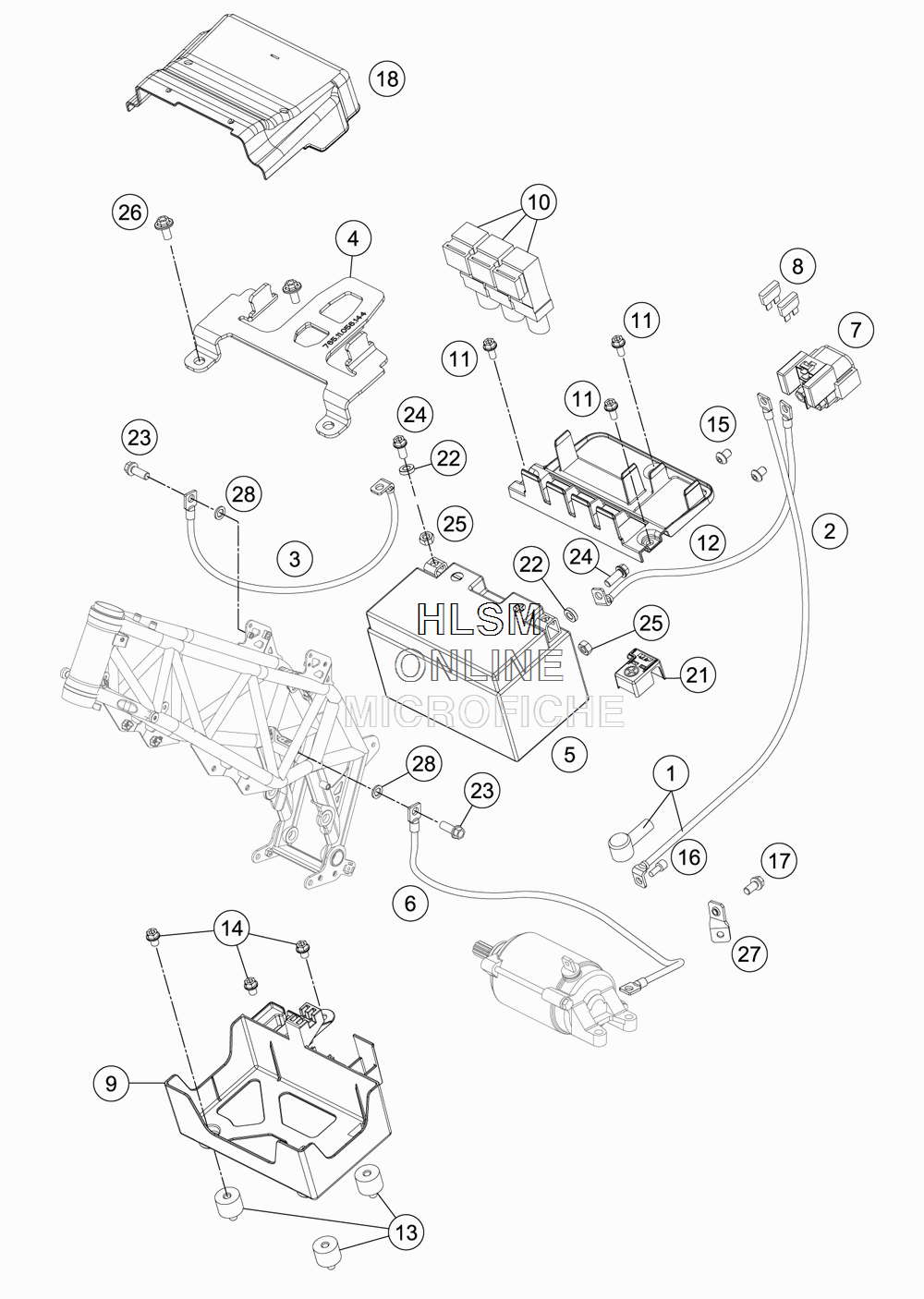

BATTERY для Ktm 690 ENDURO R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    76511059000 STARTER-CABLE L=570MM
    STARTER-CABLE L=570MM
  • 2
    75011059150 BATTERY -CABLE L=170MM
    BATTERY -CABLE L=170MM
  • 3
    76511097000 GROUND CABLE L=420MM
    GROUND CABLE L=420MM
  • 4
    76511056144 RET AINING PLATE BATTERY CPL.
    RET AINING PLATE BATTERY CPL.
  • 5
    58411053100 BATTERY 12V 8,6AH
    BATTERY 12V 8,6AH
  • 6
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 7
    58211058000 STARTER RELA Y 12V
    STARTER RELA Y 12V
  • 8
    58011109130 FUSE 30 A
    FUSE 30 A
  • 8
    58011109125 FUSE 25 A
    FUSE 25 A
  • 8
    58011109115 FUSE 15 A
    FUSE 15 A
  • 9
    76511054000 BATTERY BRACKET
    BATTERY BRACKET
  • 10
    61111057000 RELA Y CM1A-R-12V -H80
    RELA Y CM1A-R-12V -H80
  • 11
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 12
    76511055000 HOLDER F .ELECTRIC
    HOLDER F .ELECTRIC
  • 13
    43205062100 RUBBER GROMMET 20X15-M6X1 0 (1)
    RUBBER GROMMET 20X15-M6X1 0 (1)
  • 14
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 15
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 16
    0912050083 AH SCREW DIN 912 M 5X8
    AH SCREW DIN 912 M 5X8
  • 17
    0025050106 COLLAR SCREW M5X10 ISA30
    COLLAR SCREW M5X10 ISA30
  • 18
    76511085000 COVER ELECTRIC
    COVER ELECTRIC
  • 21
    62111059060 COVER POSITIVE POLE
    COVER POSITIVE POLE
  • 22
    12011016000 WASHER 6 X 12 X 3
    WASHER 6 X 12 X 3
  • 23
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 24
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 25
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 26
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 27
    76511059061 RET AINING PLATE STARTER CABLE
    RET AINING PLATE STARTER CABLE
  • 28
    58411098100 CONTACT WASHER M6 VSV -K6
    CONTACT WASHER M6 VSV -K6
