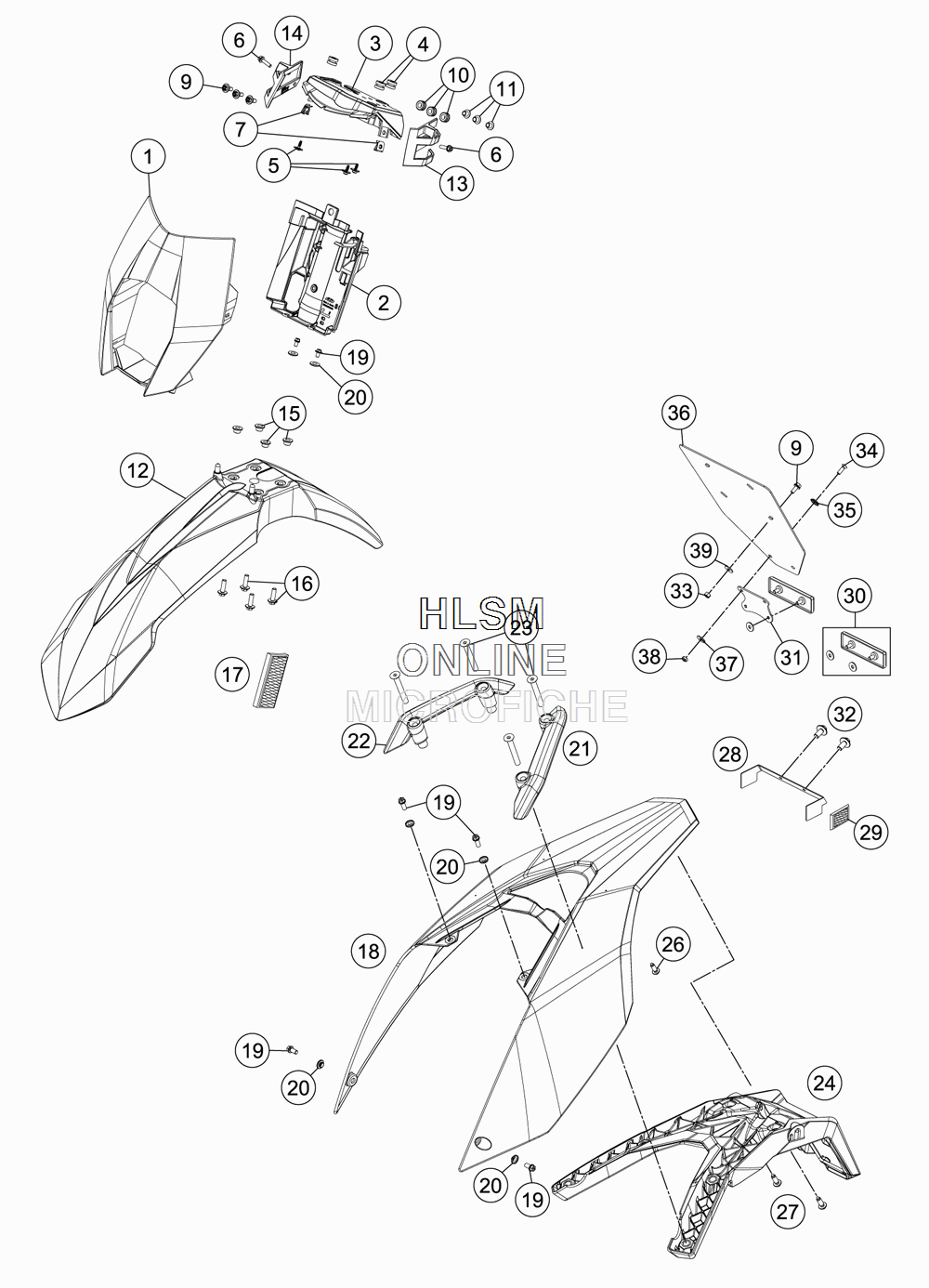

MASK FENDER для Ktm 690 ENDURO R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7650800100028 HEAD LIGHT MASK
    HEAD LIGHT MASK
  • 2
    76514064000 COVER
    COVER
  • 3
    76514060000 SPEEDOMETE R BRACKET
    SPEEDOMETE R BRACKET
  • 4
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 5
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 6
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 7
    54603048200 RANGE CHANGE MET AL NUT M5
    RANGE CHANGE MET AL NUT M5
  • 9
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 10
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 11
    75014010050 COLLAR BUSHING 6,1X8,1X14X8
    COLLAR BUSHING 6,1X8,1X14X8
  • 12
    7650801010028 FRONT FENDER WHITE
    FRONT FENDER WHITE
  • 13
    76513025000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 14
    76513026000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 15
    54808020000 SPACER BUSHING
    SPACER BUSHING
  • 16
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 17
    58412080100 REFLECTOR YELLOW
    REFLECTOR YELLOW
  • 18
    7650801300028 REAR PART WHITE
    REAR PART WHITE
  • 19
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 20
    76508043050 COLLAR BUSHING
    COLLAR BUSHING
  • 21
    76512008000 HAND GRIP L/S
    HAND GRIP L/S
  • 22
    76512009000 HAND GRIP R/S
    HAND GRIP R/S
  • 23
    0019080756 COUNTER SUNK SCREW ISA45 M8X75
    COUNTER SUNK SCREW ISA45 M8X75
  • 24
    76508116100 NUMBER PLATE CARRIER TOP
    NUMBER PLATE CARRIER TOP
  • 26
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
  • 27
    0017060305 SPECIAL SCREW K60X30 WS=6
    SPECIAL SCREW K60X30 WS=6
  • 28
    62512081000 BRACKET SIDE REFLECTOR
    BRACKET SIDE REFLECTOR
  • 29
    16512180100 SIDE REFLECTOR RED REAR
    SIDE REFLECTOR RED REAR
  • 30
    58412080000 REFLECTOR RED
    REFLECTOR RED
  • 31
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 32
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 33
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 34
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 35
    40006006000 WASHER 6MM
    WASHER 6MM
  • 36
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 37
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 38
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 39
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
