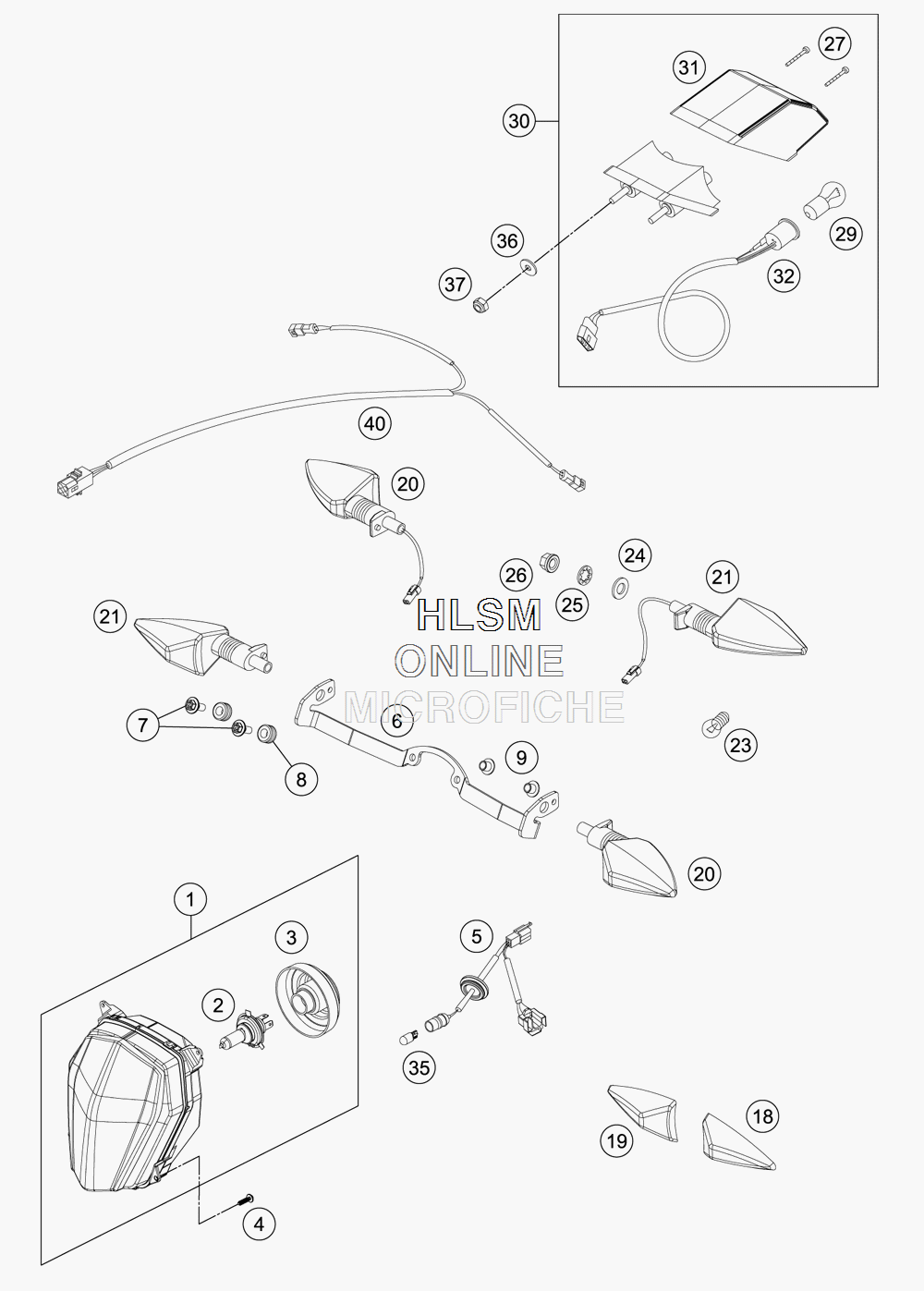

LIGHTING SYSTEM для Ktm 690 ENDURO R ABS - 2015 года выпуска
-
№АртикулНазвание
-
176514001000 HEAD LIGHTHEAD LIGHT
-
257111038000 BULB H4 12V 60/55W (P43T)BULB H4 12V 60/55W (P43T)
-
376514001050 RUBBER CAP FOR HEAD LIGHTRUBBER CAP FOR HEAD LIGHT
-
40081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
576511079000 WIRING HARNESS HEAD LIGHTWIRING HARNESS HEAD LIGHT
-
676514260000 FLASHER RET AINING PLATEFLASHER RET AINING PLATE
-
70024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
831008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
975014010050 COLLAR BUSHING 6,1X8,1X14X8COLLAR BUSHING 6,1X8,1X14X8
-
1878114027000 FLASHER LENS FRO.L/S-REAR R/SFLASHER LENS FRO.L/S-REAR R/S
-
1978114028000 FLASHER LENS L/S R/S TRANSP .FLASHER LENS L/S R/S TRANSP .
-
2078114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
2178114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
2360114027000 BULB 12V ORANGE (R Y10W)BULB 12V ORANGE (R Y10W)
-
240433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
250797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
2658414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
270981350323 SHEET MET . SCR. DIN7981 3,5X32SHEET MET . SCR. DIN7981 3,5X32
-
2958414042000 BULB 12V 21/5W (BA Y15S)REINFO.BULB 12V 21/5W (BA Y15S)REINFO.
-
3050314040200 REAR LIGHT CPL.REAR LIGHT CPL.
-
3150314041100 REAR LIGHT LENSREAR LIGHT LENS
-
3250311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
3549011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
360125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
370985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
4076511076000 WIRING HARNESS FLASHER REARWIRING HARNESS FLASHER REAR
