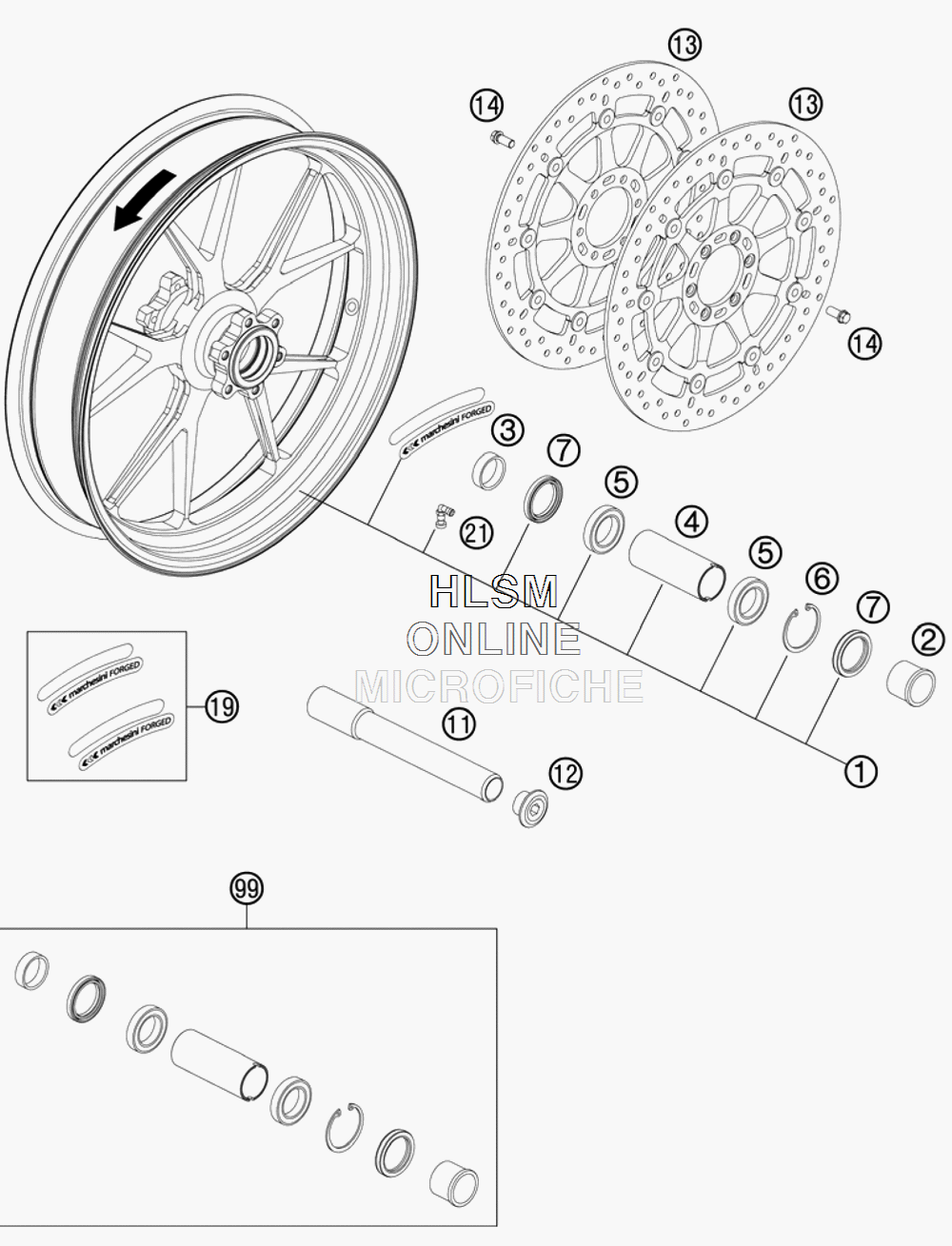

WHEEL - FRONT для Ktm 990 SMR - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    6260900104430 FRONT WHEEL CPL.
    FRONT WHEEL CPL.
  • 2
    61009012000 SPACER BUSH. FR. WHEEL L/S
    SPACER BUSH. FR. WHEEL L/S
  • 3
    60009013000 SPACER BUSH. FR. WHEEL R/S
    SPACER BUSH. FR. WHEEL R/S
  • 4
    62609011000 BEARING SPACER TUBE FRONT
    BEARING SPACER TUBE FRONT
  • 5
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 6
    0472048175 LOCK RING DIN0472-48X1,75
    LOCK RING DIN0472-48X1,75
  • 7
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 11
    61009081000 WHEEL SPINDEL FRONT
    WHEEL SPINDEL FRONT
  • 12
    61009082000 AH SCREW M25X1,5 WS=12
    AH SCREW M25X1,5 WS=12
  • 13
    6250906000030 BRAKE DISK D=305MM
    BRAKE DISK D=305MM
  • 14
    61009062018 SPECIAL SCREW M8X18
    SPECIAL SCREW M8X18
  • 19
    00050000121 STICKER MARCH. 2L/S+2R/S YELL.
    STICKER MARCH. 2L/S+2R/S YELL.
  • 21
    61009076000 VALVE ANGLED 90
    VALVE ANGLED 90
  • 99
    69109015000 FRONT WHEEL REPAIR KIT
    FRONT WHEEL REPAIR KIT
