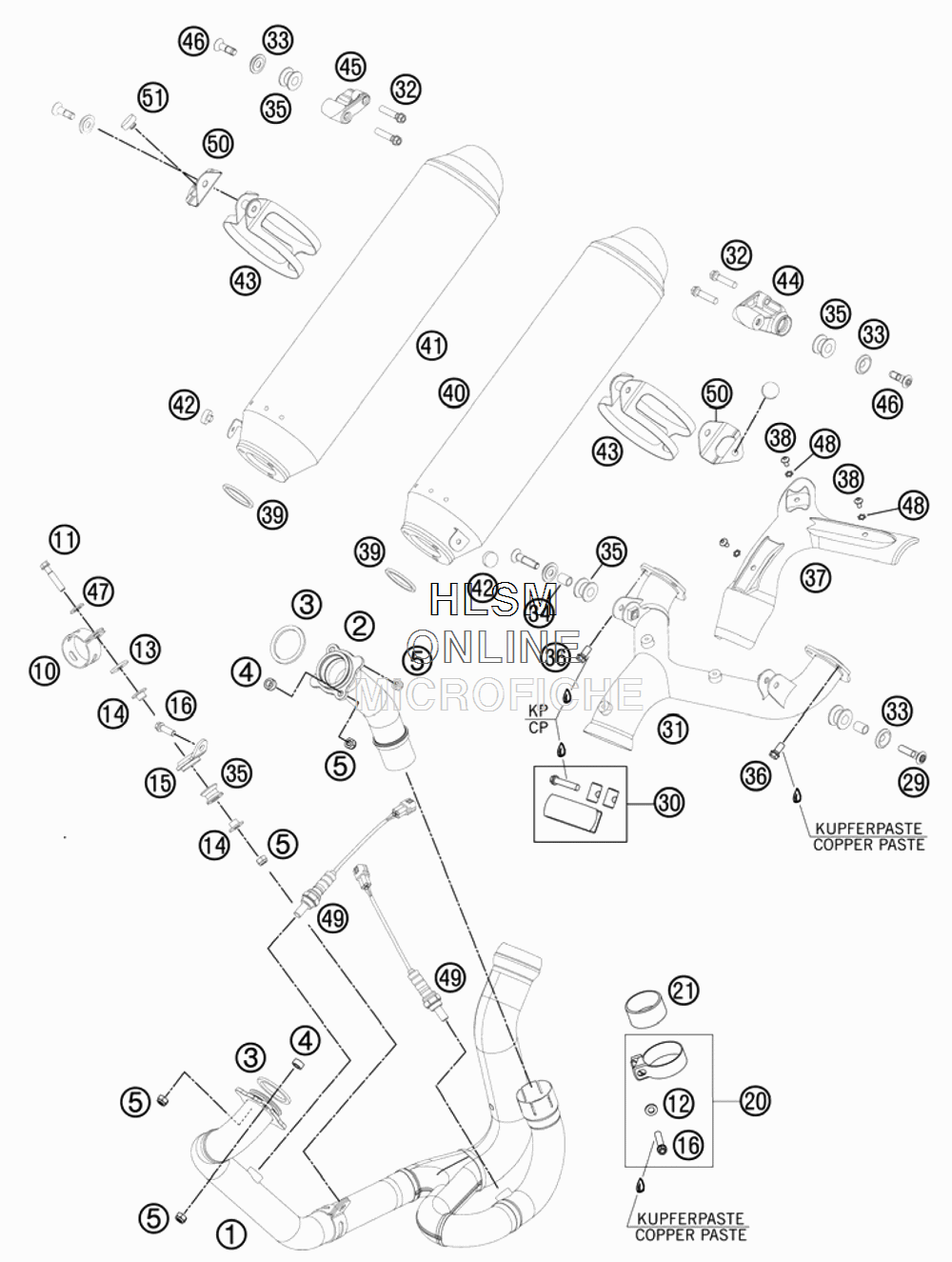

EXHAUST SYSTEM для Ktm 990 SMR - 2011 года выпуска
-
№АртикулНазвание
-
162605007000 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
261105008000 EXHAUST PIPE REAREXHAUST PIPE REAR
-
361005005000 EXHAUST GASKETEXHAUST GASKET
-
461005009000 SPACER BUSH. 8,5X15X7,5SPACER BUSH. 8,5X15X7,5
-
551010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
1061005007049 CLAMP EXHAUST PIPECLAMP EXHAUST PIPE
-
110025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
120125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
1351005067000 INSOLATE WASHER 8,5X28X3INSOLATE WASHER 8,5X28X3
-
1458405050065 COLLAR BUSH 8,5X12X23,5X10COLLAR BUSH 8,5X12X23,5X10
-
1562505015150 EXHAUST PIPE BRACKET FRONTEXHAUST PIPE BRACKET FRONT
-
160025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
2061105051000 EXHAUST CLAMP 52,2MMEXHAUST CLAMP 52,2MM
-
2158405005001 GRAPHITRING 45X50X25GRAPHITRING 45X50X25
-
290019080356 COUNTERSUNK SCREW ISA45 M8X35COUNTERSUNK SCREW ISA45 M8X35
-
3061005052000 EXHAUST CLAMP CPL.EXHAUST CLAMP CPL.
-
3162505048100 DISTRIBUTOR TUBEDISTRIBUTOR TUBE
-
320025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
3362603061000 SPECIAL WASHER 8X24 ALU H=4,2SPECIAL WASHER 8X24 ALU H=4,2
-
3462505069000 SPACER BUSH. 8,5X12X18MMSPACER BUSH. 8,5X12X18MM
-
3554305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
360025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
3762505047000 THERMAL SHIELDTHERMAL SHIELD
-
3858605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3960005005002 EXHAUST GASKETEXHAUST GASKET
-
4062605182000 EXHAUST SILENCER L/SEXHAUST SILENCER L/S
-
4162605183000 EXHAUST SILENCER R/SEXHAUST SILENCER R/S
-
4254308042000 RUBBER BUFFERRUBBER BUFFER
-
4360005095000 CLAMP FOR SILENCER CPL.CLAMP FOR SILENCER CPL.
-
446000508500001S SILENCER/HANDLE HOLDER L/SSILENCER/HANDLE HOLDER L/S
-
456000508600001S SILENCER/HANDLE HOLDER R/SSILENCER/HANDLE HOLDER R/S
-
460019080306S COUNTER-SUNK SCREW ISA45 M8X30COUNTER-SUNK SCREW ISA45 M8X30
-
470021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
480797050000 TOOTH LOCK WASHER DIN6797-JTOOTH LOCK WASHER DIN6797-J
-
4961041090000 LAMBDA SENSORLAMBDA SENSOR
-
5062605190060 HEAT PROTECTION CLAMPHEAT PROTECTION CLAMP
-
5154308042000 RUBBER BUFFERRUBBER BUFFER
