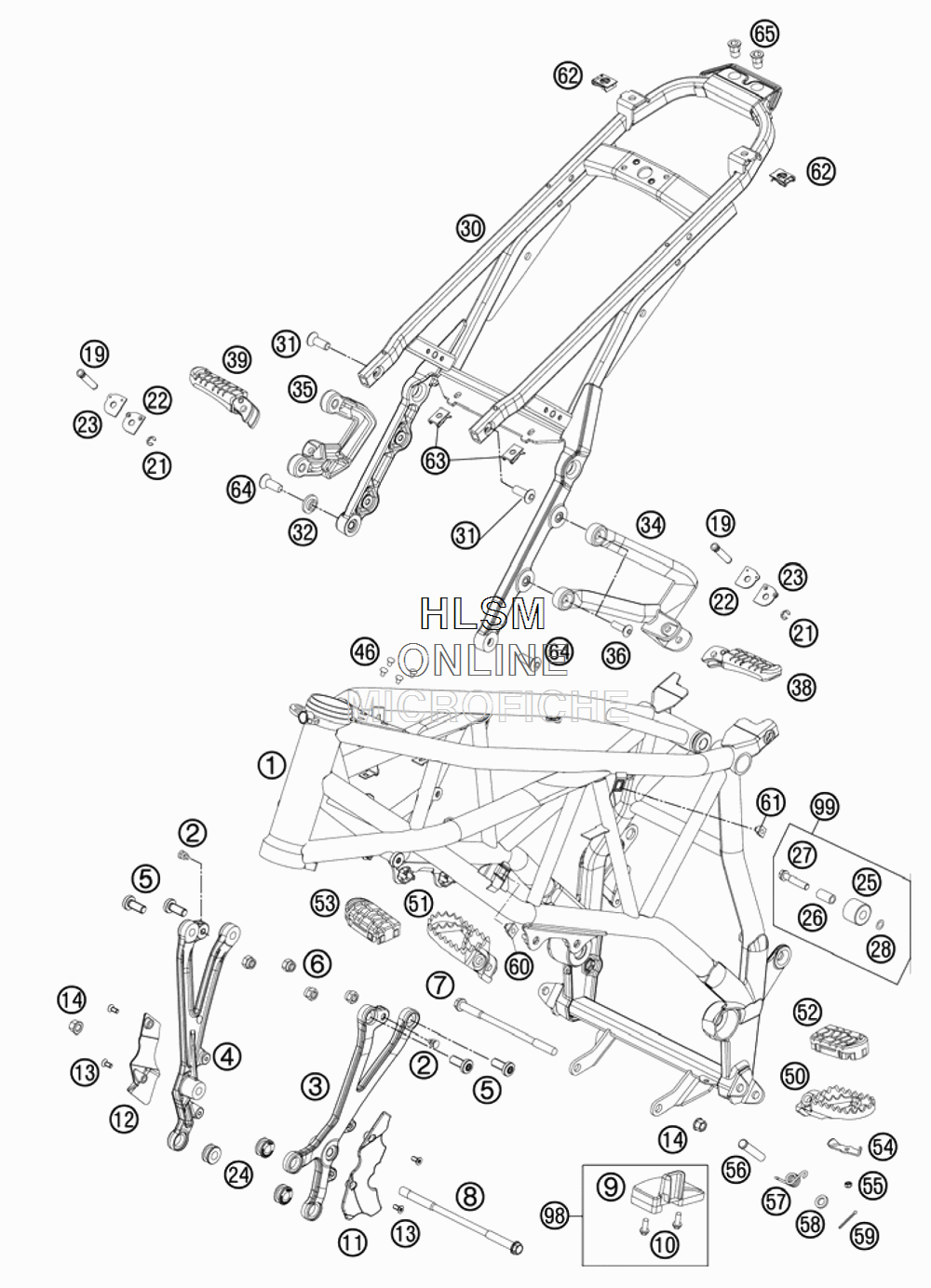

FRAME для Ktm 990 SMR - 2011 года выпуска

  • №
    Артикул
    Название
  • 1*
    6260300120004 FRAME "626KA" ORANGE
    FRAME "626KA" ORANGE
  • 2
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 3
    6250300500033S ENGINE SUPPORT L/S
    ENGINE SUPPORT L/S
  • 4
    6250300600033S ENGINE SUPPORT R/S
    ENGINE SUPPORT R/S
  • 5
    35100249 AH-COLLAR SCREW M10X24 ISA45
    AH-COLLAR SCREW M10X24 ISA45
  • 6
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 7
    60003013000 ENGINE BRAC. SCREW M10X172
    ENGINE BRAC. SCREW M10X172
  • 8
    60003014000 ENGINE BRAC. SCREW M10X206
    ENGINE BRAC. SCREW M10X206
  • 9
    60004076100 CHAIN SLIDING BLOCK
    CHAIN SLIDING BLOCK
  • 10
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 11
    62603005050 COVER ENGINE SUPPORT LEFT
    COVER ENGINE SUPPORT LEFT
  • 12
    62603006050 COVER ENGINE
    COVER ENGINE
  • 13
    0019050121 COUNTERSUNK SCREW ISA25 M5X12
    COUNTERSUNK SCREW ISA25 M5X12
  • 14
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 19
    60003044000 BOLT FOR FOOTREST REAR
    BOLT FOR FOOTREST REAR
  • 21
    799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 22
    60003152000 ENGAGE PANEL FOOTREST L/S
    ENGAGE PANEL FOOTREST L/S
  • 23
    60003052000 ENGAGE PANEL FOOTREST R/S
    ENGAGE PANEL FOOTREST R/S
  • 24
    60003098000 RUBBER SLEEVE
    RUBBER SLEEVE
  • 25
    58403060000 CHAIN ROLL 12X29X22,5
    CHAIN ROLL 12X29X22,5
  • 26
    58403060065 BUSH CHAIN ROLL 8X12X23
    BUSH CHAIN ROLL 8X12X23
  • 27
    25080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 28
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 30*
    6260300220033 SUB FRAME SM BLACK
    SUB FRAME SM BLACK
  • 31
    0019100289S COUNTERSUNK SCREW ISA45 M10X28
    COUNTERSUNK SCREW ISA45 M10X28
  • 32
    60003001051 COLLAR BUSHING 10X15X25X4
    COLLAR BUSHING 10X15X25X4
  • 34
    6250304800033S FOOTREST BRACKET REAR L/S
    FOOTREST BRACKET REAR L/S
  • 35
    6250304900033S FOOTREST BRACKET REAR R/S
    FOOTREST BRACKET REAR R/S
  • 36
    0019080266S COUNTER-SUNK SCREW ISA45 M8X26
    COUNTER-SUNK SCREW ISA45 M8X26
  • 38
    60003050000 FOOTREST CPL. L/S REAR
    FOOTREST CPL. L/S REAR
  • 39
    60003051000 FOOTREST CPL. R/S REAR
    FOOTREST CPL. R/S REAR
  • 46
    60103088000 PLUG ZK 8/5
    PLUG ZK 8/5
  • 50
    59003040250 FOOT PEG L/S SILVER
    FOOT PEG L/S SILVER
  • 51
    59003041250 FOOT PEG R/S SILVER
    FOOT PEG R/S SILVER
  • 52
    60003040010 FOOTREST RUBBER FRONT L/S
    FOOTREST RUBBER FRONT L/S
  • 53
    60003041010 FOOTREST RUBBER FRONT R/S
    FOOTREST RUBBER FRONT R/S
  • 54
    60003044010 CLOSING PANEL FRONT L/S R/S
    CLOSING PANEL FRONT L/S R/S
  • 55
    985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 56
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 57
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 58
    125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 59
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 60
    60003095100 CAGE NUT M8
    CAGE NUT M8
  • 61
    60011038000 CAGE NUT M6 SL K100-1 1,5MM
    CAGE NUT M6 SL K100-1 1,5MM
  • 62
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
  • 63
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 64
    0019100239S COUNTERSUNK SCREW ISA45 M10X23
    COUNTERSUNK SCREW ISA45 M10X23
  • 65
    61003002080 BLIND RIVET NUT M8 HUC/ROF 5 0
    BLIND RIVET NUT M8 HUC/ROF 5 0
  • 98
    60004076110 CHAIN SLIDING KIT BELOW
    CHAIN SLIDING KIT BELOW
  • 99
    58403060010 CHAIN ROLL KIT
    CHAIN ROLL KIT
