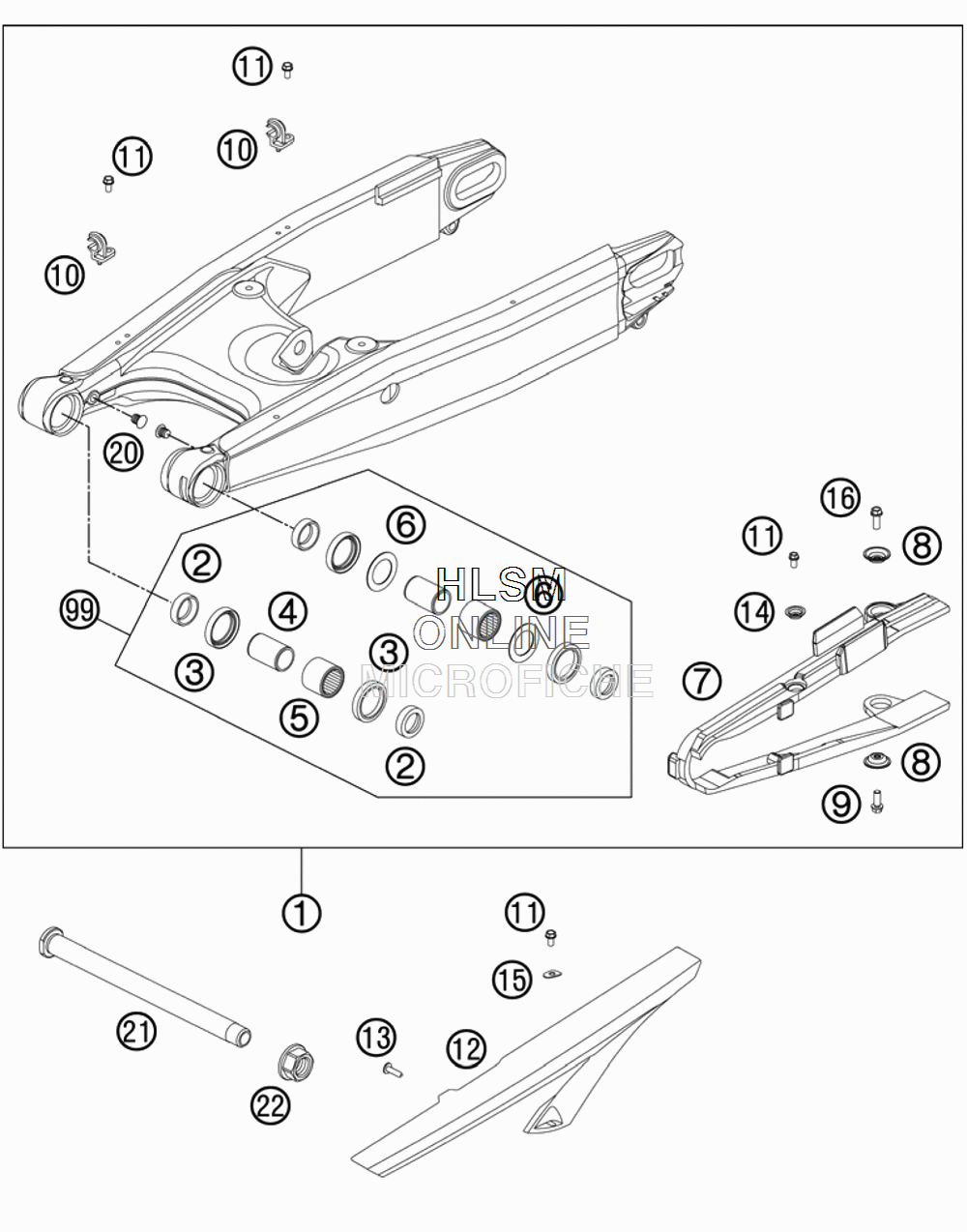

SWING ARM для Ktm 990 SMR - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    6100403004433 SWING ARM CPL.
    SWING ARM CPL.
  • 2
    60004034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 3
    0760304073 SHAFT SEAL RING 30X40X7
    SHAFT SEAL RING 30X40X7
  • 4
    60004032000 INNER RING JR20X25X38,5
    INNER RING JR20X25X38,5
  • 5
    60004031000 NEEDLE BUSH HK2526B
    NEEDLE BUSH HK2526B
  • 6
    60004033000 STOP DISK
    STOP DISK
  • 7
    63004066100 CHAIN SLID.GUARD SWINGARM
    CHAIN SLID.GUARD SWINGARM
  • 8
    72210079000 BUCKET
    BUCKET
  • 9
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 10
    5461107610030 RET. CLAMP F. BRAKE HOSE BLACK
    RET. CLAMP F. BRAKE HOSE BLACK
  • 11
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 12
    61004060000 CHAIN GUARD
    CHAIN GUARD
  • 13
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 14
    46104066050 BUSH FOR CHAINSLIDER GUARD
    BUSH FOR CHAINSLIDER GUARD
  • 15
    61004060050 WASHER CHAINGUARD
    WASHER CHAINGUARD
  • 16
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 20
    60004042000 PLUG SFL12 GREY
    PLUG SFL12 GREY
  • 21
    60004037244 SWINGARM BOLT CPL.
    SWINGARM BOLT CPL.
  • 22
    60004038000 COLLAR NUT M19X1,5 WS=27MM
    COLLAR NUT M19X1,5 WS=27MM
  • 99
    60004230010 SWINGARM REP. KIT
    SWINGARM REP. KIT
