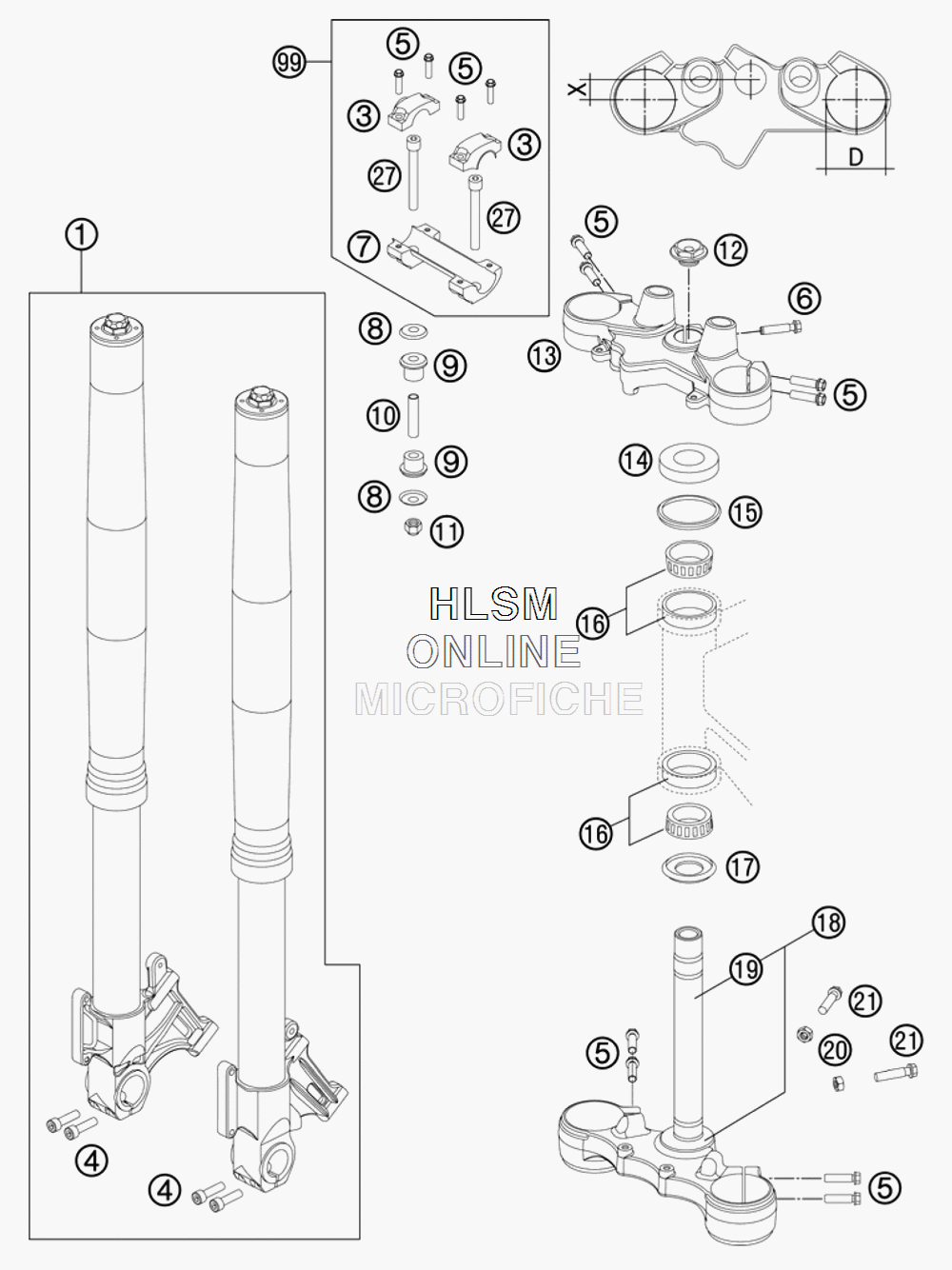

FRONT FORK для Ktm 990 SMR - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    14187E2101 FORK
    FORK
  • 3
    5900103830001S HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 4
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 5
    0035080306 AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 6
    0035080356 AH-COLLAR SCREW M8X35 ISA45
    AH-COLLAR SCREW M8X35 ISA45
  • 7
    5900103920001S HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 8
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 9
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 10
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 11
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 12
    54801036200 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 13
    6250103402633S TOP TRIPLE CLAMP
    TOP TRIPLE CLAMP
  • 14
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 15
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 16
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 17
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 18
    6250103202633S BOTTOM TRIPLE CLAMP CPL.
    BOTTOM TRIPLE CLAMP CPL.
  • 19
    60001033000 FORK TUBE
    FORK TUBE
  • 20
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 21
    0933080303 HH SCREW DIN0933-M 8X30
    HH SCREW DIN0933-M 8X30
  • 27
    0984100703 AH SCREW DIN6912-M10X70
    AH SCREW DIN6912-M10X70
  • 99
    00050000922 HANDLEBAR SUPPORT KIT
    HANDLEBAR SUPPORT KIT
