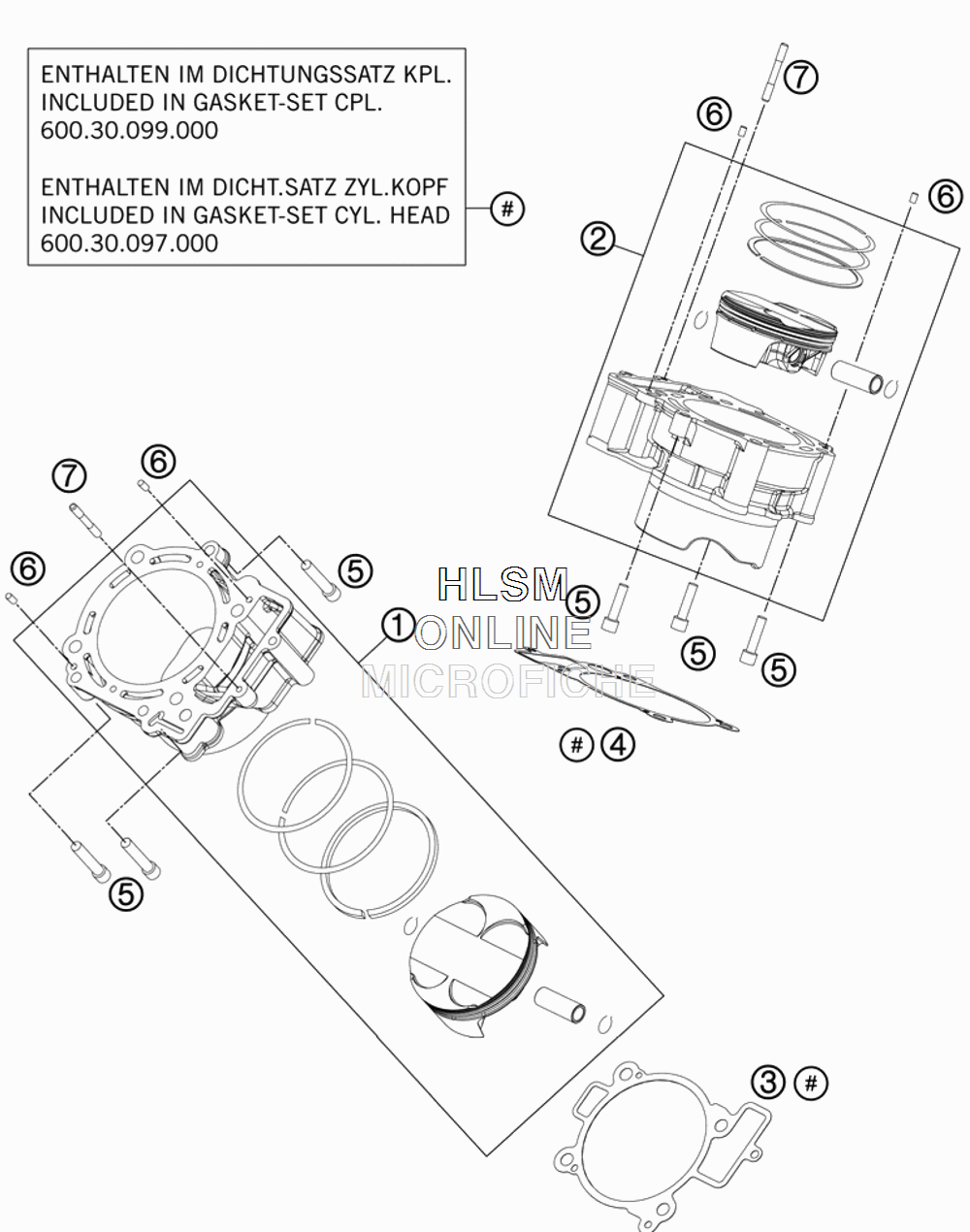

CYLINDER для Ktm 990 SMR - 2011 года выпуска
-
№АртикулНазвание
-
16103003810023 CYLINDER + PISTON CPL. FRONTCYLINDER + PISTON CPL. FRONT
-
26103013810023 CYLINDER + PISTON CPL. REARCYLINDER + PISTON CPL. REAR
-
360030035000 CYLINDER-BASE GASKET FR 0,35MMCYLINDER-BASE GASKET FR 0,35MM
-
460030135000 CYLINDER-BASE GASKET RR 0,35MMCYLINDER-BASE GASKET RR 0,35MM
-
50912080353 AH SCREW DIN0912-M 8X35AH SCREW DIN0912-M 8X35
-
60474050100 GROOVED PIN DIN1474 5X10GROOVED PIN DIN1474 5X10
-
760030043020 STUD M6X47STUD M6X47
