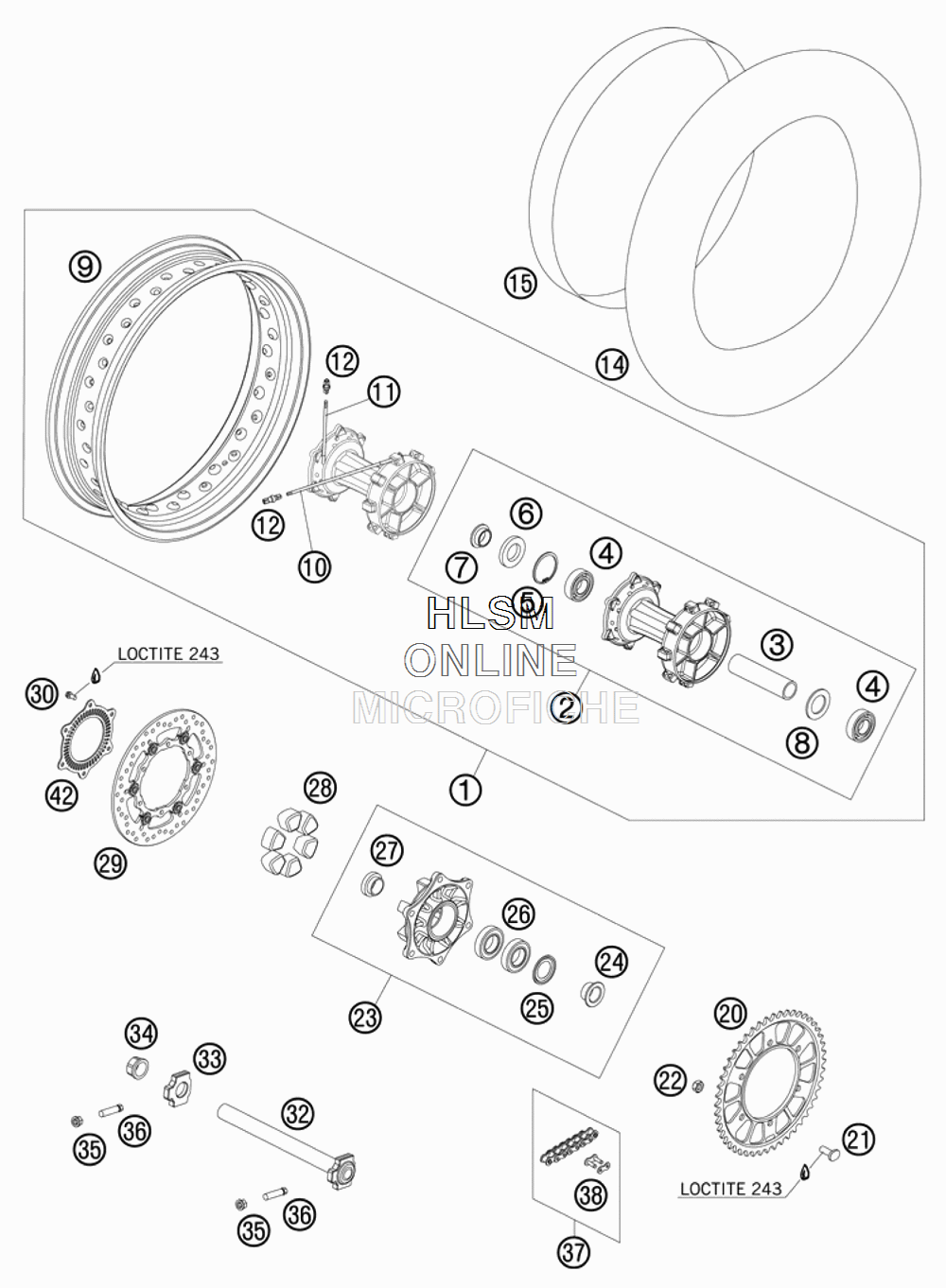

REAR WHEEL для Ktm 990 ADVENTURE STD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    6011000124430 REAR WHEEL CPL. 4,25X18"SW
    REAR WHEEL CPL. 4,25X18"SW
  • 2
    6011001004433 REAR HUB CPL. BLACK
    REAR HUB CPL. BLACK
  • 3
    60010011000 BEAR. SPACERTUBE L=124,8MM
    BEAR. SPACERTUBE L=124,8MM
  • 4
    0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7
    GR.BALL BEAR. 6205-2RSHC3HMTF7
  • 5
    0472052200 CIRCLIP DIN0472-52X2
    CIRCLIP DIN0472-52X2
  • 6
    0760305271 SHAFT SEAL RING 30X52X7
    SHAFT SEAL RING 30X52X7
  • 7
    60110013000 SPACER BUSH. REAR WHEEL R/S
    SPACER BUSH. REAR WHEEL R/S
  • 8
    60010015000 SPACER RING
    SPACER RING
  • 9
    6001007020030 RIM 4,25X18 BLACK
    RIM 4,25X18 BLACK
  • 10
    60010171000 SPOKE M5X219 19 DEG
    SPOKE M5X219 19 DEG
  • 11
    60010071000 SPOKE M5X194 DEG
    SPOKE M5X194 DEG
  • 12
    58309072100 SPOKE NIPPLE M5-TA 8X21MM
    SPOKE NIPPLE M5-TA 8X21MM
  • 14
    50310075100 HOSE 110/100C-18
    HOSE 110/100C-18
  • 15
    60010073000 RIM TAPE 18" 50/2
    RIM TAPE 18" 50/2
  • 20
    60010051042 REAR SPROCKET 42-T
    REAR SPROCKET 42-T
  • 20
    60010051045 REAR SPROCKET 45-T
    REAR SPROCKET 45-T
  • 21
    60010052000 SPROCKET SCREW M10X1,25
    SPROCKET SCREW M10X1,25
  • 22
    0980101253 HEXAG.NUT DIN 980V M10X1,25 SL
    HEXAG.NUT DIN 980V M10X1,25 SL
  • 23
    6011005004433 SPROCKET SUPPORT CPL. BLACK
    SPROCKET SUPPORT CPL. BLACK
  • 24
    60110012000 SPACER BUSH. SPROCKET SUPP.
    SPACER BUSH. SPROCKET SUPP.
  • 25
    60110016000 NILOS RING 6006AV
    NILOS RING 6006AV
  • 26
    0625060060 BALL BEARING 6006 DDU2CG23S6NM
    BALL BEARING 6006 DDU2CG23S6NM
  • 27
    60110014000 SPACER BUSH. SPR. SUPP. IN.
    SPACER BUSH. SPR. SUPP. IN.
  • 28
    54610459000 RUBBER DAMPING BLOCK '91
    RUBBER DAMPING BLOCK '91
  • 29
    60110060000 BRAKE DISK REAR D=240MM
    BRAKE DISK REAR D=240MM
  • 30
    59009062016 SPECIAL SCREW M6X16 WS=8.9
    SPECIAL SCREW M6X16 WS=8.9
  • 32
    60010081144 WHEEL SPINDLE REAR CPL.
    WHEEL SPINDLE REAR CPL.
  • 33
    60010084000 CHAIN TENSIONER R/S LC8
    CHAIN TENSIONER R/S LC8
  • 34
    60010086000 COLLAR NUT WH. SPINDLE REAR
    COLLAR NUT WH. SPINDLE REAR
  • 35
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 36
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 37
    60010365118 CHAIN 525 INCL. MASTER LINK
    CHAIN 525 INCL. MASTER LINK
  • 38
    60010266000 MASTER LINK FOR CHAIN 525
    MASTER LINK FOR CHAIN 525
  • 42
    60142021000 SENSOR WHEEL REAR
    SENSOR WHEEL REAR
