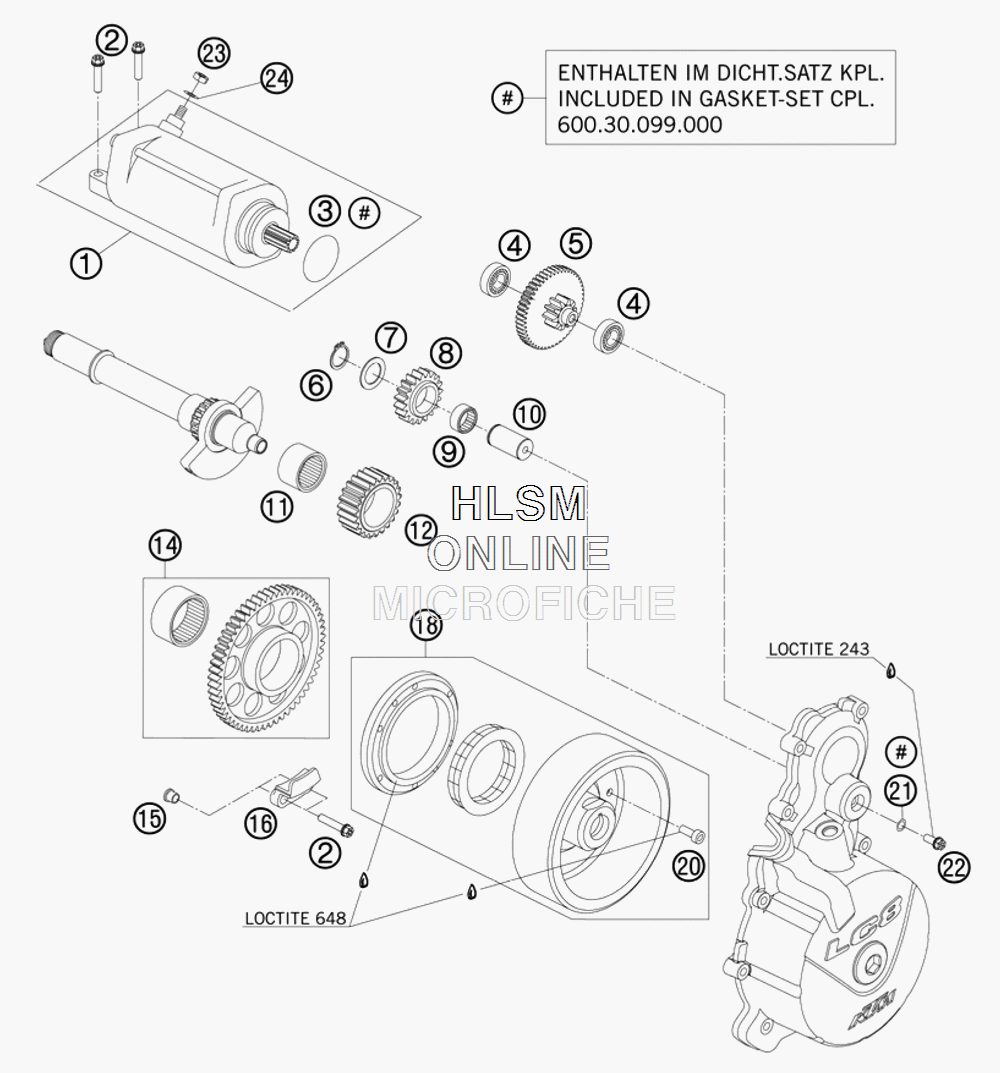

ELECTRIC STARTER для Ktm 990 ADVENTURE STD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    60040001000 E-STARTER ENGINE CPL. LC8-E
    E-STARTER ENGINE CPL. LC8-E
  • 2
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 3
    0770335030 O-RING 33,5X3 VITON
    O-RING 33,5X3 VITON
  • 4
    0625160011 GROOV.BALL BEAR. 16001 JRX C3
    GROOV.BALL BEAR. 16001 JRX C3
  • 5
    60040017000 TORQUE LIMITER
    TORQUE LIMITER
  • 6
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 7
    50333041000 STOP DISC 17,2X26X1 B
    STOP DISC 17,2X26X1 B
  • 8
    60040022219 IDLER GEAR 1 19Z
    IDLER GEAR 1 19Z
  • 9
    0405172110 NEEDLE BEARING K 17X21X10
    NEEDLE BEARING K 17X21X10
  • 10
    60040023100 BEARING BOLT
    BEARING BOLT
  • 11
    0618253220 NEEDLE BUSH HK2520 25/32/20
    NEEDLE BUSH HK2520 25/32/20
  • 12
    60040022023 IDLER GEAR 2 23-T
    IDLER GEAR 2 23-T
  • 14
    60040020000 FREEWHEEL GEAR WH. 57-T CPL.
    FREEWHEEL GEAR WH. 57-T CPL.
  • 15
    60040027050 SUPPORTING SLEEVE
    SUPPORTING SLEEVE
  • 16
    60040027000 FREEWHEEL HOLDER
    FREEWHEEL HOLDER
  • 18
    60039005100 IGNITION ROTOR INCL. FREEWHEEL
    IGNITION ROTOR INCL. FREEWHEEL
  • 20
    0984060166 AH SCREW DIN6912 M6X16.9
    AH SCREW DIN6912 M6X16.9
  • 21
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 22
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 24
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
