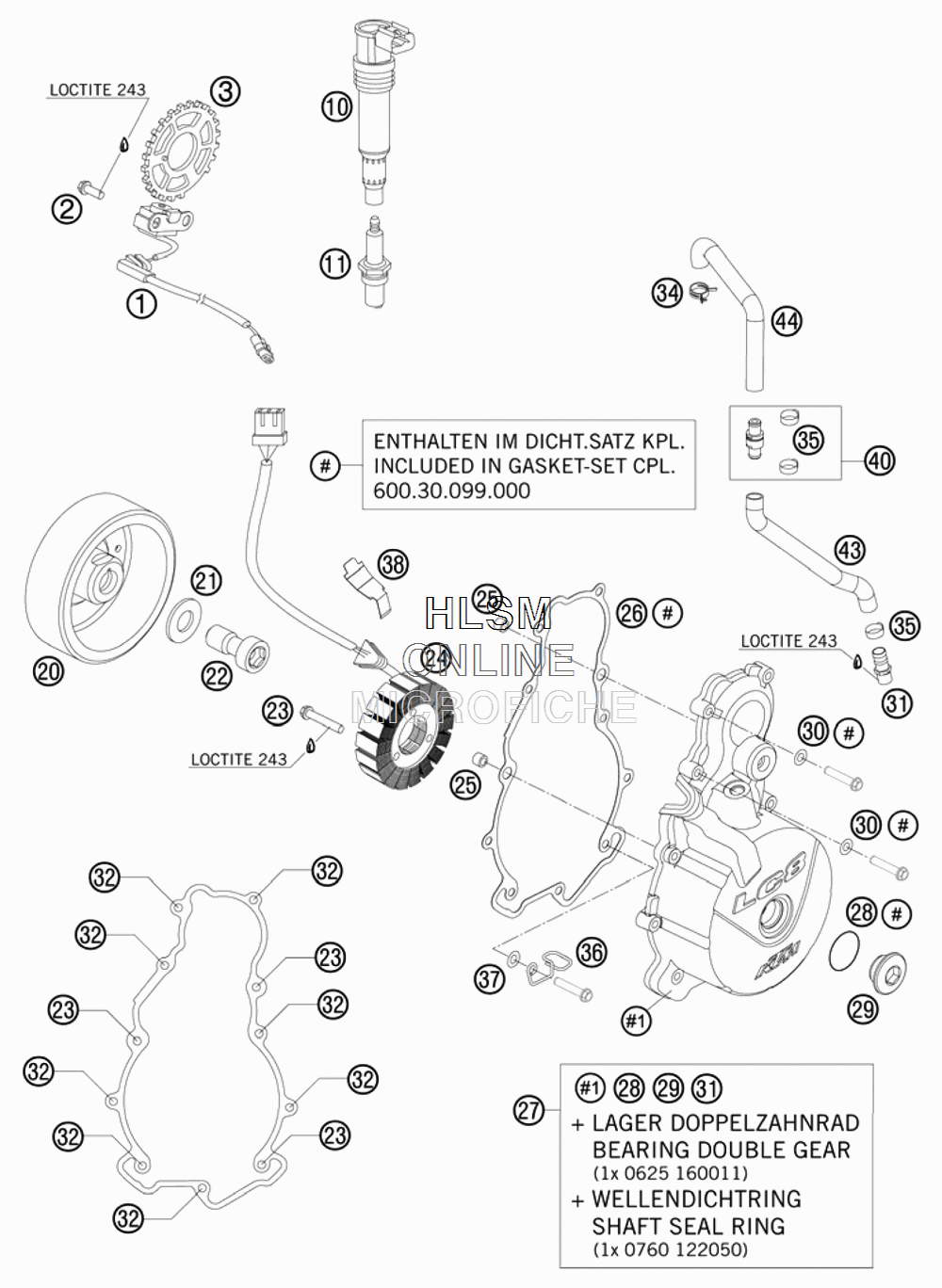

IGNITION SYSTEM для Ktm 990 ADVENTURE STD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    60039034100 PULSE GENERATOR LC8
    PULSE GENERATOR LC8
  • 2
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 3
    61039020000 COIL SPROKET 22Z O. CYL. PIN
    COIL SPROKET 22Z O. CYL. PIN
  • 10
    60039006000 STICK COIL
    STICK COIL
  • 11
    60139093000 SPARK PLUG M12X1,25 "8"
    SPARK PLUG M12X1,25 "8"
  • 20
    60039005100 IGNITION ROTOR INCL. FREEWHEEL
    IGNITION ROTOR INCL. FREEWHEEL
  • 21
    60039040010 WASHER 17X32X4
    WASHER 17X32X4
  • 22
    60039003100 AH EXPAND. SCREW M16X1,5
    AH EXPAND. SCREW M16X1,5
  • 23
    0025060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 24
    60039004000 STATOR
    STATOR
  • 25
    49030090000 DOWEL 9,8 X 7 X
    DOWEL 9,8 X 7 X
  • 26
    60030040100 IGNIT.COVER GASK.MATRI.CS0,5MM
    IGNIT.COVER GASK.MATRI.CS0,5MM
  • 27
    6003000214423 IGNITION COVER CPL.
    IGNITION COVER CPL.
  • 28
    0770024025 O-RING 24X2,5 NBR
    O-RING 24X2,5 NBR
  • 29
    6003009400023 SCREW PLUG M24X1,5 PA 6.6
    SCREW PLUG M24X1,5 PA 6.6
  • 30
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 31
    60030022000 VENTILATION CONNECTOR M16X1,5
    VENTILATION CONNECTOR M16X1,5
  • 32
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 34
    00049220121 CLAMP STD DN22
    CLAMP STD DN22
  • 35
    00050226706 VARIABLE ONE-EAR CLAMP 22,6MM
    VARIABLE ONE-EAR CLAMP 22,6MM
  • 36
    60011094000 CABLE SUPPORT
    CABLE SUPPORT
  • 37
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 38
    60039040020 CABLE SUPPORT GENERATOR
    CABLE SUPPORT GENERATOR
  • 40
    60030090344 BACK-PRESSURE VALVE CPL.
    BACK-PRESSURE VALVE CPL.
  • 43
    60030087101 ENGINE BREATHER HOSE BOTTOM
    ENGINE BREATHER HOSE BOTTOM
  • 44
    60030087102 ENGINE BREATHER HOSE TOP
    ENGINE BREATHER HOSE TOP
