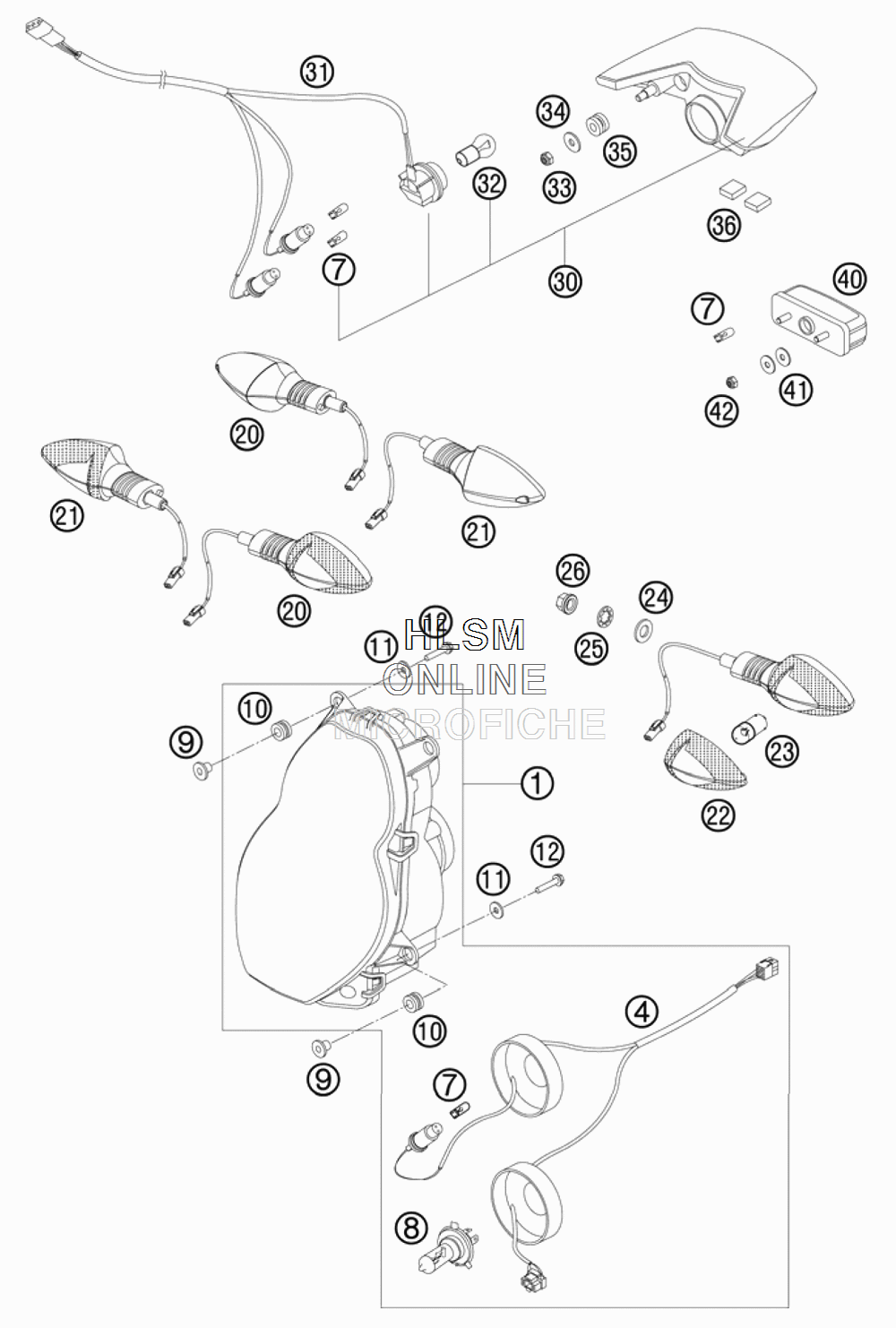

LIGHTING SYSTEM для Ktm 990 ADVENTURE STD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    60014801000 HEAD LIGHT RIGHT TR. USA
    HEAD LIGHT RIGHT TR. USA
  • 4
    60014801050 HEAD LIGHT WIRING HARN. USA
    HEAD LIGHT WIRING HARN. USA
  • 7
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 8
    57111038000 BULB H4 12V 60/55W (P43T)
    BULB H4 12V 60/55W (P43T)
  • 9
    60014007000 SPACER BUSHING HEAD LIGHT
    SPACER BUSHING HEAD LIGHT
  • 10
    31008008000 RUBBER GROMMIT BLACK
    RUBBER GROMMIT BLACK
  • 11
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 12
    0016050253 SCREW FOR PLASTIC
    SCREW FOR PLASTIC
  • 20
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 21
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 22
    60114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 23
    60114027000 BULB 12V ORANGE (RY10W)
    BULB 12V ORANGE (RY10W)
  • 24
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 25
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 26
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 30
    60014040000 REAR LIGHT CPL.
    REAR LIGHT CPL.
  • 31
    60011077000 WIRING HARNESS REAR LIGHT
    WIRING HARNESS REAR LIGHT
  • 32
    60014048000 BULB 12V 21W
    BULB 12V 21W
  • 33
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 34
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 35
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 36
    60014040050 BUMP RUBBER 20X20X6 MM
    BUMP RUBBER 20X20X6 MM
  • 40
    58414047000 LICENSE-PLATE ILLUMINATION
    LICENSE-PLATE ILLUMINATION
  • 41
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 42
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
