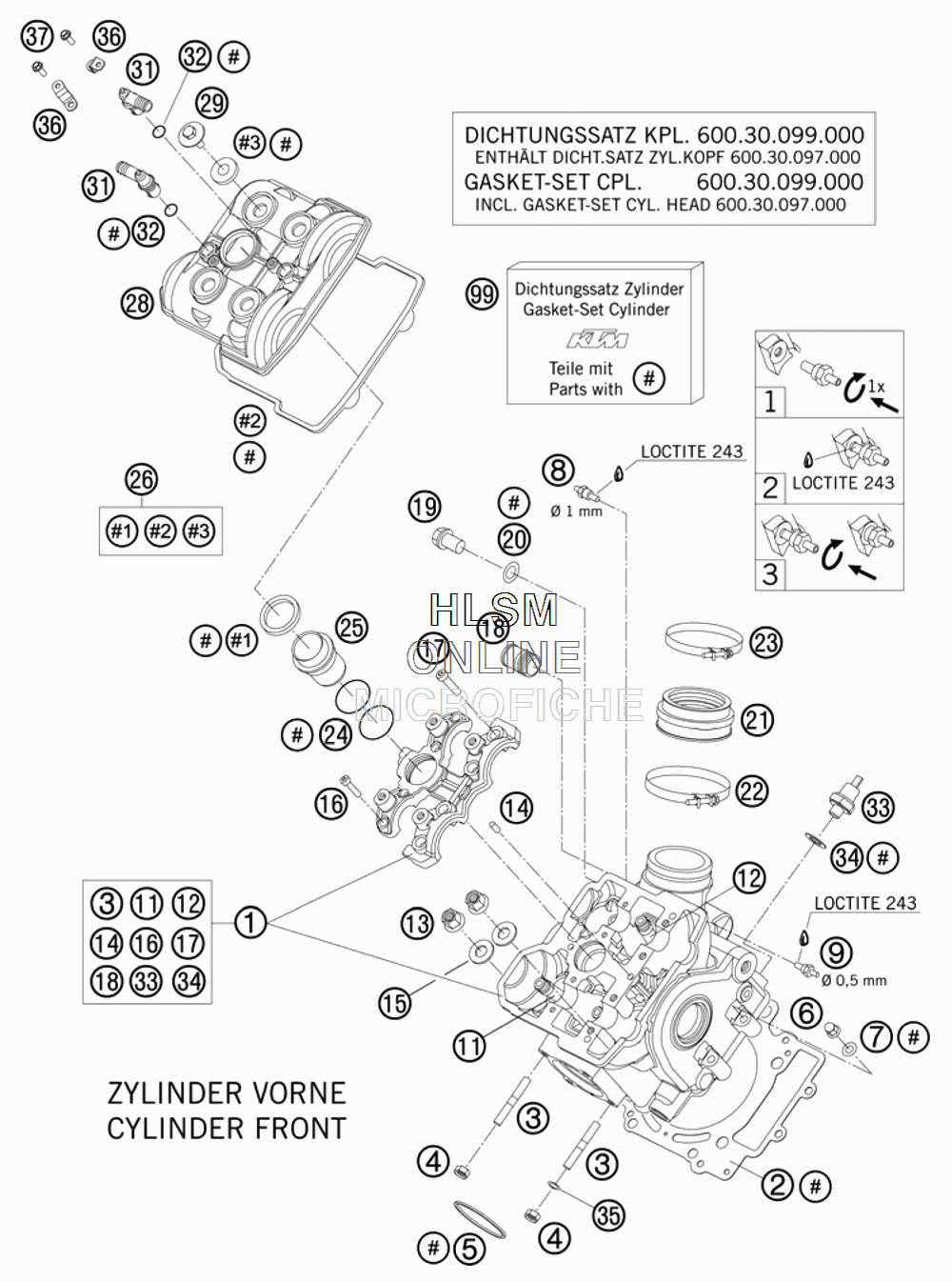

CYLINDER HEAD FRONT для Ktm 990 ADVENTURE STD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    6013602014423 CYLINDER HEAD FRONT CPL.
    CYLINDER HEAD FRONT CPL.
  • 2
    60030036000 CYLINDER HEAD GASKET 0,51MM
    CYLINDER HEAD GASKET 0,51MM
  • 3
    0835080165 STUD M 8X16.9
    STUD M 8X16.9
  • 4
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 5
    61005005000 EXHAUST GASKET
    EXHAUST GASKET
  • 6
    61230045000 CAP NUT M6 STAINLESS STEEL
    CAP NUT M6 STAINLESS STEEL
  • 7
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 8
    61036023100 VACUUM CONECTION
    VACUUM CONECTION
  • 9
    60036023100 VACUUM CONECTION M6/0,5MM
    VACUUM CONECTION M6/0,5MM
  • 11
    60036026101 VALVE GIUDE EXHAUST
    VALVE GIUDE EXHAUST
  • 12
    60036025101 VALVE GIUDE INTAKE
    VALVE GIUDE INTAKE
  • 13
    60036078200 COLLAR NUT M WS=13
    COLLAR NUT M WS=13
  • 14
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 15
    60036078050 SHIM,2X19X1,5MM
    SHIM,2X19X1,5MM
  • 16
    0912060255 AH SCREW DIN0912-M 6X25.9
    AH SCREW DIN0912-M 6X25.9
  • 17
    0984080305 AH SCREW DIN7984-M 8X30.9
    AH SCREW DIN7984-M 8X30.9
  • 18
    58030010200 SCREW IN NOZZLE M20X1,5
    SCREW IN NOZZLE M20X1,5
  • 19
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 20
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 21
    61036044000 RUBBERSLEEVE INTAKE FLANGE
    RUBBERSLEEVE INTAKE FLANGE
  • 22
    61036048000 HOSE CLAMP GEMI 66MM
    HOSE CLAMP GEMI 66MM
  • 23
    61036047000 HOSE CLAMP GEMI 63MM
    HOSE CLAMP GEMI 63MM
  • 24
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 25
    60136075100 INSERT SPARK-PLUG SHAFT
    INSERT SPARK-PLUG SHAFT
  • 26
    60036099000 VALVE COVER GASKET SET FR+RR
    VALVE COVER GASKET SET FR+RR
  • 28
    6003605210023 VALVE COVER FRONT
    VALVE COVER FRONT
  • 29
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 31
    60038082000 ANGLE CONNECTOR LC8
    ANGLE CONNECTOR LC8
  • 32
    0770080020 O-RING 8X2 SILICONE
    O-RING 8X2 SILICONE
  • 33
    60038091100 OIL-PRESSURE SWITCH LC8
    OIL-PRESSURE SWITCH LC8
  • 34
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 35
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 36
    60038082050 %ANGLE CONNECTOR BRACKET PANEL
    %ANGLE CONNECTOR BRACKET PANEL
  • 37
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 99
    60030097000 GASKET SET CYL. HEAD KPL.
    GASKET SET CYL. HEAD KPL.
