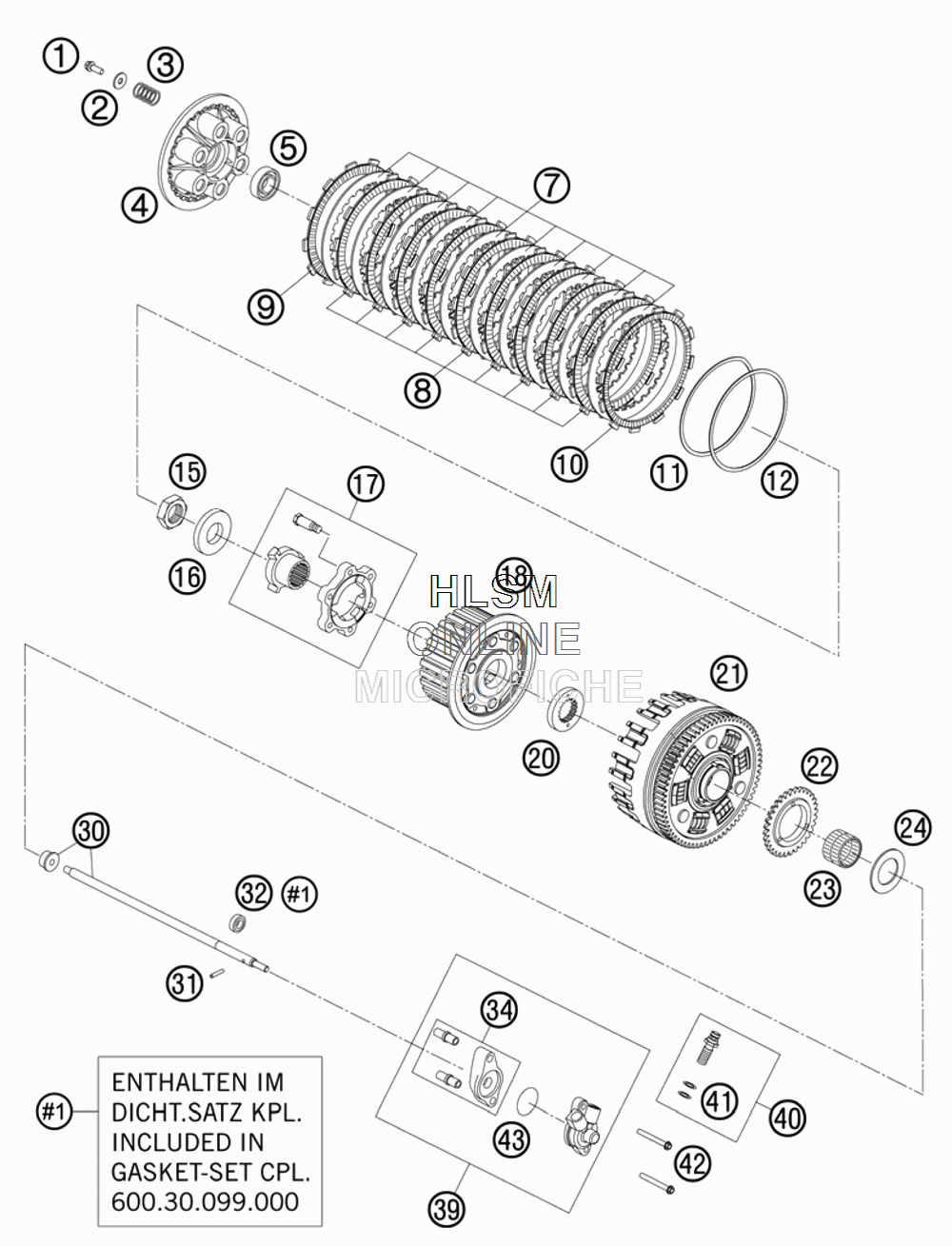

CLUTCH для Ktm 990 ADVENTURE STD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 2
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 3
    60032005000 CLUTCH SPRING LC8
    CLUTCH SPRING LC8
  • 4
    60032003000 PRESSURE CAP LC8
    PRESSURE CAP LC8
  • 5
    0625060032 BALL BEARING 6003 JR2 C4
    BALL BEARING 6003 JR2 C4
  • 7
    60032010000 STEEL DISC 2MM
    STEEL DISC 2MM
  • 8
    60032011000 LINING DISK 2,8MM
    LINING DISK 2,8MM
  • 9
    60032111000 LINING DISK OUTSIDE 2,8MM
    LINING DISK OUTSIDE 2,8MM
  • 9
    60032111000 LINING DISK OUTSIDE 2,8MM
    LINING DISK OUTSIDE 2,8MM
  • 10
    60032012000 LINING DISK TURN OUT 2,8MM
    LINING DISK TURN OUT 2,8MM
  • 11
    60032034000 BELLEVILLE SPRING
    BELLEVILLE SPRING
  • 12
    60032035000 THRUST WASHER
    THRUST WASHER
  • 15
    0936220155 HEXAGON NUT DIN0936-M22X1,5 R.
    HEXAGON NUT DIN0936-M22X1,5 R.
  • 16
    0125220393 PULLEY 22X39X3MM
    PULLEY 22X39X3MM
  • 17
    60032080000 CLUTCH BOOSTER UNIT CPL.
    CLUTCH BOOSTER UNIT CPL.
  • 18
    60032002000 INNER CLUTCH HUB CPL.
    INNER CLUTCH HUB CPL.
  • 20
    60032021000 SECTION WASHER
    SECTION WASHER
  • 21
    60032001144 OUT.CLUTCH HUB CPL. 67-T
    OUT.CLUTCH HUB CPL. 67-T
  • 22
    60038001132 OIL PUMP GEAR WHEEL 32-T
    OIL PUMP GEAR WHEEL 32-T
  • 23
    0618303526 NEEDLE BUSH HK 30X35X26
    NEEDLE BUSH HK 30X35X26
  • 24
    60032020000 STOP DISK 30,2/50/2
    STOP DISK 30,2/50/2
  • 30
    60032054400 PUSH ROD CPL.
    PUSH ROD CPL.
  • 31
    0402031780 NEEDLE ROL.DIN5402 NRB 3X17,8
    NEEDLE ROL.DIN5402 NRB 3X17,8
  • 32
    0760091862 SHAFT SEAL RING 9X18X06 B-NBR
    SHAFT SEAL RING 9X18X06 B-NBR
  • 34
    60032061050 DISTANCE CLUTCH CONTR. CPL.
    DISTANCE CLUTCH CONTR. CPL.
  • 39
    60032061244 CYLINDER CPL. LC8
    CYLINDER CPL. LC8
  • 40
    50332062000 HOLLOW SCREW CPL. MX1
    HOLLOW SCREW CPL. MX1
  • 41
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 42
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
  • 43
    60032065000 O-RING GASKET
    O-RING GASKET
