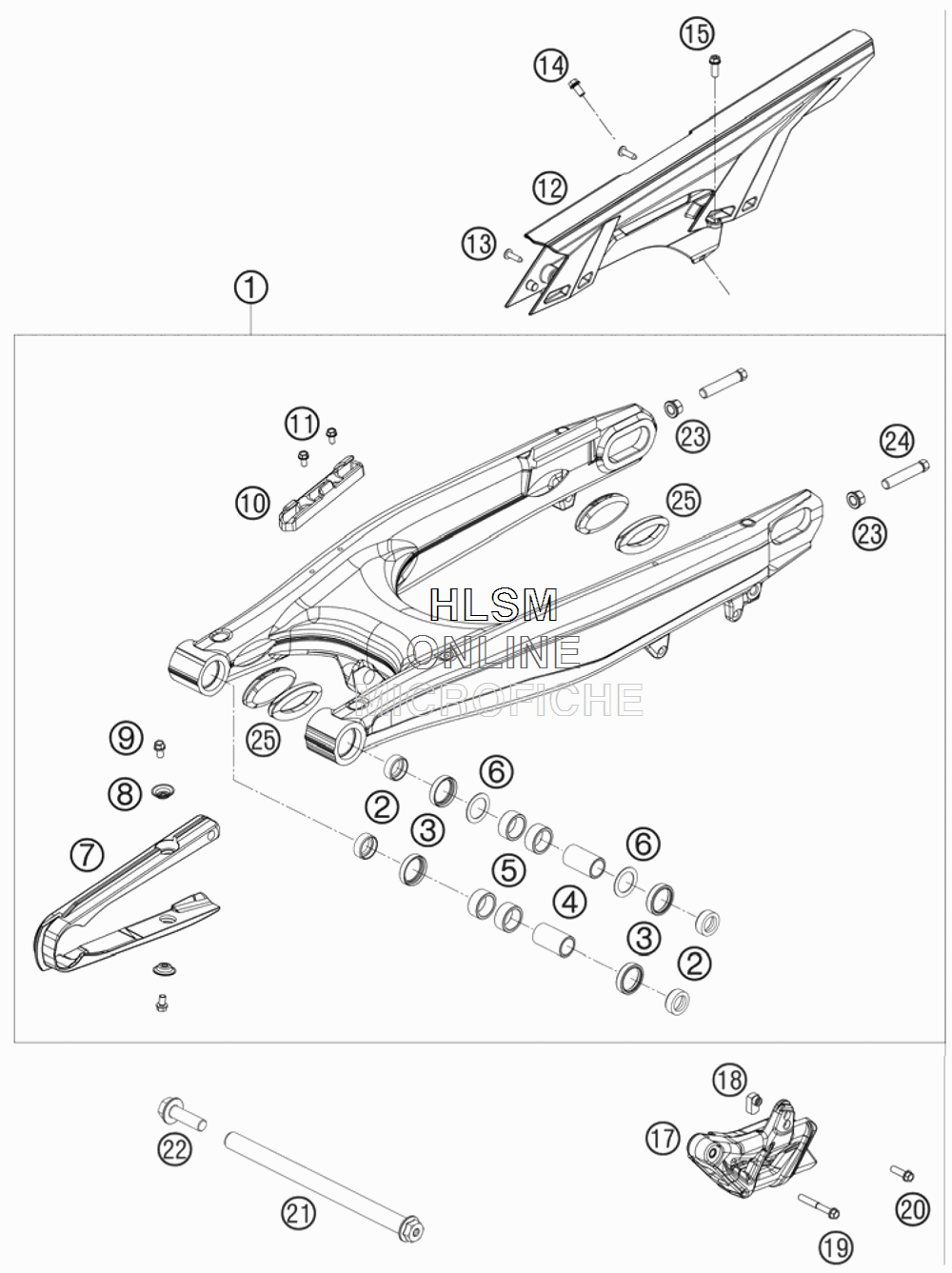

SWING ARM для Ktm 690 ENDURO R - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    76504030044 SWING ARM CPL.
    SWING ARM CPL.
  • 2
    76504034000 BUCKET FOR SHAFT SEAL RING
    BUCKET FOR SHAFT SEAL RING
  • 3
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 4
    59404032000 BEARING SLEEVE 17X22X38,7
    BEARING SLEEVE 17X22X38,7
  • 5
    59004031100 NEEDLE BEARING HK2212V
    NEEDLE BEARING HK2212V
  • 6
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 7
    76504066000 CHAIN SLIDING GUARD
    CHAIN SLIDING GUARD
  • 8
    77304066050 BUSHING F. CHAIN SLIDING PR.
    BUSHING F. CHAIN SLIDING PR.
  • 9
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 10
    76504042000 BRAKE LINE GUIDE
    BRAKE LINE GUIDE
  • 11
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 12
    76504060000 CHAIN GUARD
    CHAIN GUARD
  • 13
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 14
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 15
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 17
    77304070000 CHAIN GUIDE REAR CPL.
    CHAIN GUIDE REAR CPL.
  • 18
    77304070030 INSERTION NUT F. CHAIN GUIDE
    INSERTION NUT F. CHAIN GUIDE
  • 19
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 20
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 21
    75304037044 SWINGARM BOLT L=246 M12X1,5
    SWINGARM BOLT L=246 M12X1,5
  • 22
    76504038000 SPECIAL SCREW M12X40 SW19
    SPECIAL SCREW M12X40 SW19
  • 23
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 24
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 25
    58404041000 CLOSING COVER SWINGARM SM
    CLOSING COVER SWINGARM SM
