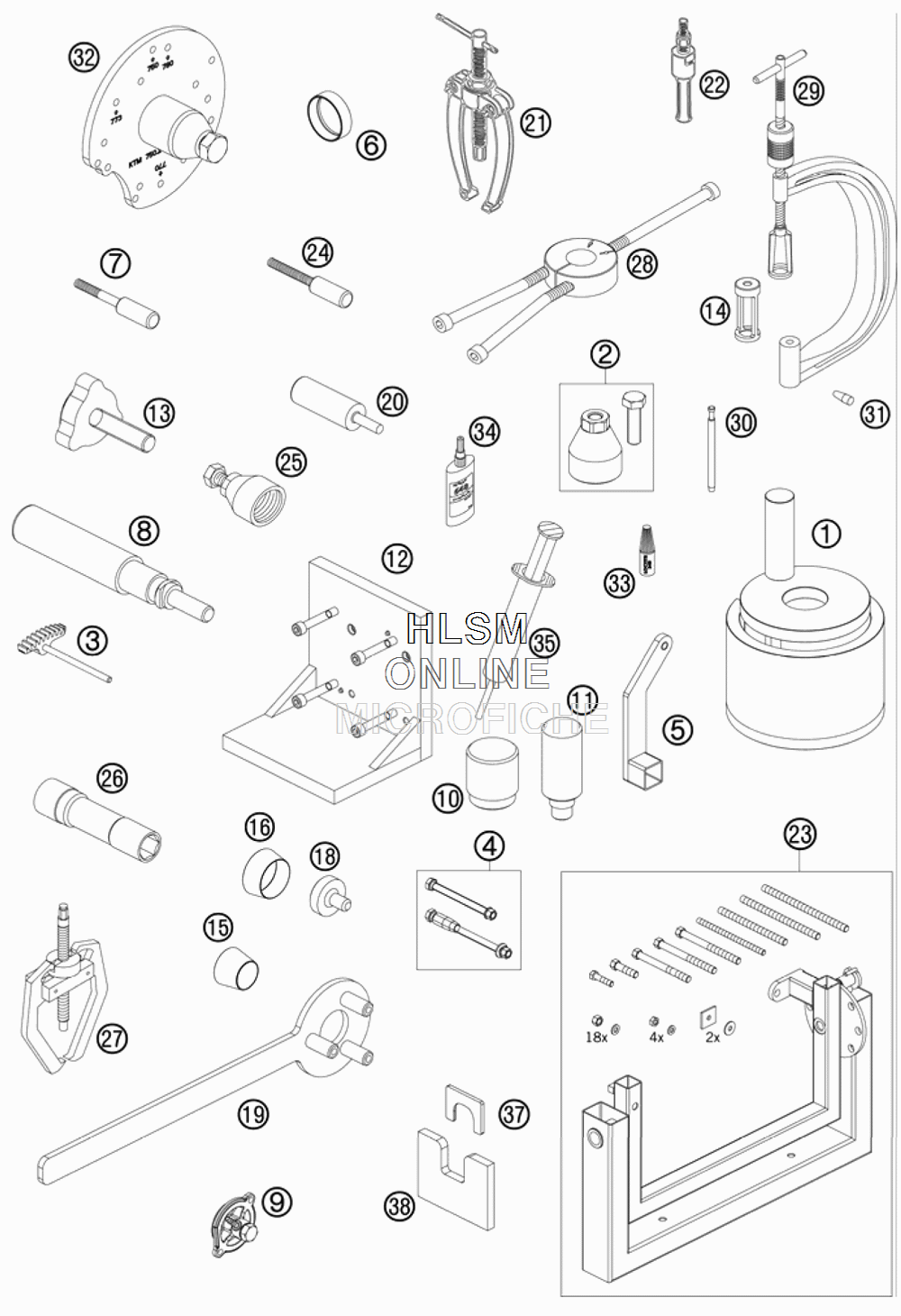

SPECIAL TOOLS - ENGINE для Ktm 690 ENDURO R - 2009 года выпуска`
-
№АртикулНазвание
-
175029047000 PRESS. TOOL F. CRANKS. CPL.PRESS. TOOL F. CRANKS. CPL.
-
275029021000 EXTRACTOR PRIM. CPL.EXTRACTOR PRIM. CPL.
-
375029081000 GEAR SEGMENT CPL.GEAR SEGMENT CPL.
-
475012001060 SUPPORT CPL.SUPPORT CPL.
-
575012001070 RETAIN. ARM F. ENG.WORK STANDRETAIN. ARM F. ENG.WORK STAND
-
675029015102 PISTON R. COMPRESSOR DM=102PISTON R. COMPRESSOR DM=102
-
775029033000 MOUNTING SCREWMOUNTING SCREW
-
875029035000 PLUG IN FUSE PISTON PINPLUG IN FUSE PISTON PIN
-
975029094000 OIL PRESSURE ADAPTEROIL PRESSURE ADAPTER
-
1075029044010 PRESS PUNCH CAMSH. BEAR. LARGEPRESS PUNCH CAMSH. BEAR. LARGE
-
1175029044020 PRESS PUNCH CAMSHAFT BEAR. SM.PRESS PUNCH CAMSHAFT BEAR. SM.
-
1275029050000 ON TENSIONER PL. CYLINDER HEADON TENSIONER PL. CYLINDER HEAD
-
1375029051000 PRESS OUT PUNCH CPL.PRESS OUT PUNCH CPL.
-
1477329060000 INSERT FOR VALVE SPRING LEVERINSERT FOR VALVE SPRING LEVER
-
1575029080000 MOUNT.SLEEVE F. SH.S.RING MSMOUNT.SLEEVE F. SH.S.RING MS
-
1675029080050 MOUNT.SLEEVE F. SH.S.RING KSMOUNT.SLEEVE F. SH.S.RING KS
-
1875029090000 PROTECTOR CAP F.CRANKSHAFT 07PROTECTOR CAP F.CRANKSHAFT 07
-
1975029091000 HOLDING SPANNER FOR FLYWHEELHOLDING SPANNER FOR FLYWHEEL
-
2077329051000 UNLOCK CHAIN TENSIONERUNLOCK CHAIN TENSIONER
-
2115112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
2215112018100 INTERN.BEAR.PULLER 18-23 MMINTERN.BEAR.PULLER 18-23 MM
-
2356012001000 ASSY SUPPORT (WITHOUT HOLDER)ASSY SUPPORT (WITHOUT HOLDER)
-
2477329010000 LOCATING SCREWLOCATING SCREW
-
2558429009000 MAGNETO EXTRACTORMAGNETO EXTRACTOR
-
2675029172000 SPARK PLUG WRENCHSPARK PLUG WRENCH
-
2759029033000 EXTRACTOR FOR TIMING GEAREXTRACTOR FOR TIMING GEAR
-
2858429037043 MOUNTING TOOL F.BEARING NJ 207MOUNTING TOOL F.BEARING NJ 207
-
2959029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
3059029026006 LIMIT PLUG GAUGE F.VALVE GUIDELIMIT PLUG GAUGE F.VALVE GUIDE
-
3158529005000 MOUNT.SLEEVE F. SH.S.RING WAPUMOUNT.SLEEVE F. SH.S.RING WAPU
-
32*75029048100 HOUSING SEPARATING TOOLHOUSING SEPARATING TOOL
-
336899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
3458429059000 LOCTITE 648 GREEN 24MLLOCTITE 648 GREEN 24ML
-
3558429059200 LOCTITE 5910 50MLLOCTITE 5910 50ML
-
3775029047050 PRESS OUT PLATE TOP PARTPRESS OUT PLATE TOP PART
-
3875029047051 PRESS OUT PLATE BOTTOM PARTPRESS OUT PLATE BOTTOM PART
