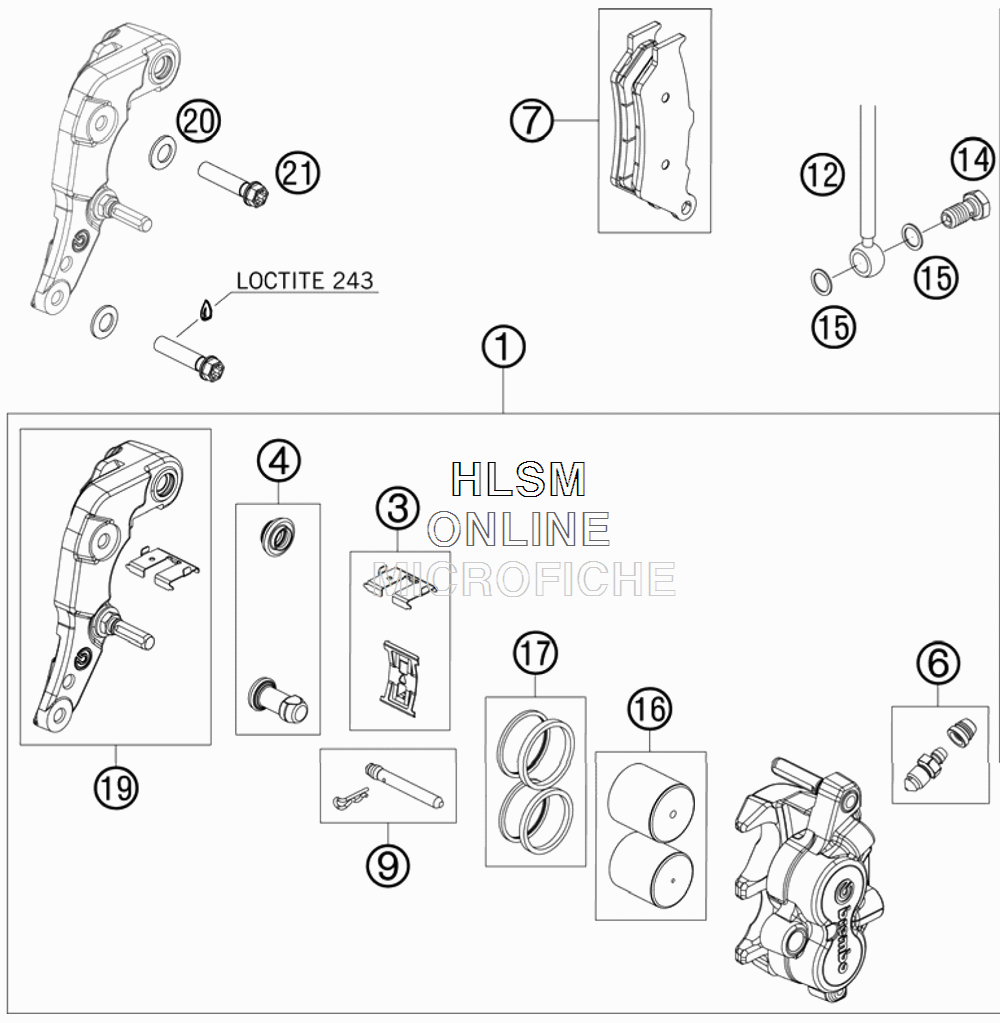

BRAKE CALIPER FRONT для Ktm 690 ENDURO R - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    6011301500101 BRAKE CALIPER FRONT L/S
    BRAKE CALIPER FRONT L/S
  • 3
    60013018000 RETAINING PLATE SET FRONT
    RETAINING PLATE SET FRONT
  • 4
    54613218000 CUP SET SHORT
    CUP SET SHORT
  • 6
    60013020000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 7
    60013030000 BRAKE PADS TOSHIBA TT 2172 HHA
    BRAKE PADS TOSHIBA TT 2172 HHA
  • 9
    60013017000 BOLT SET L/S
    BOLT SET L/S
  • 12
    76513012000 BRAKE HOSE FRONT 1265MM
    BRAKE HOSE FRONT 1265MM
  • 14
    54813020100 HOLLOW SCREW BLACK M10X1X19
    HOLLOW SCREW BLACK M10X1X19
  • 15
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 16
    60013083000 BRAKE PISTONS 30/32MM
    BRAKE PISTONS 30/32MM
  • 17
    60013019000 REP.KIT SEALING RINGS 30/32MM
    REP.KIT SEALING RINGS 30/32MM
  • 19
    60113049100 BRAKE CALIPER SUPPORT FR. L/S
    BRAKE CALIPER SUPPORT FR. L/S
  • 20
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 21
    0025080356S HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
