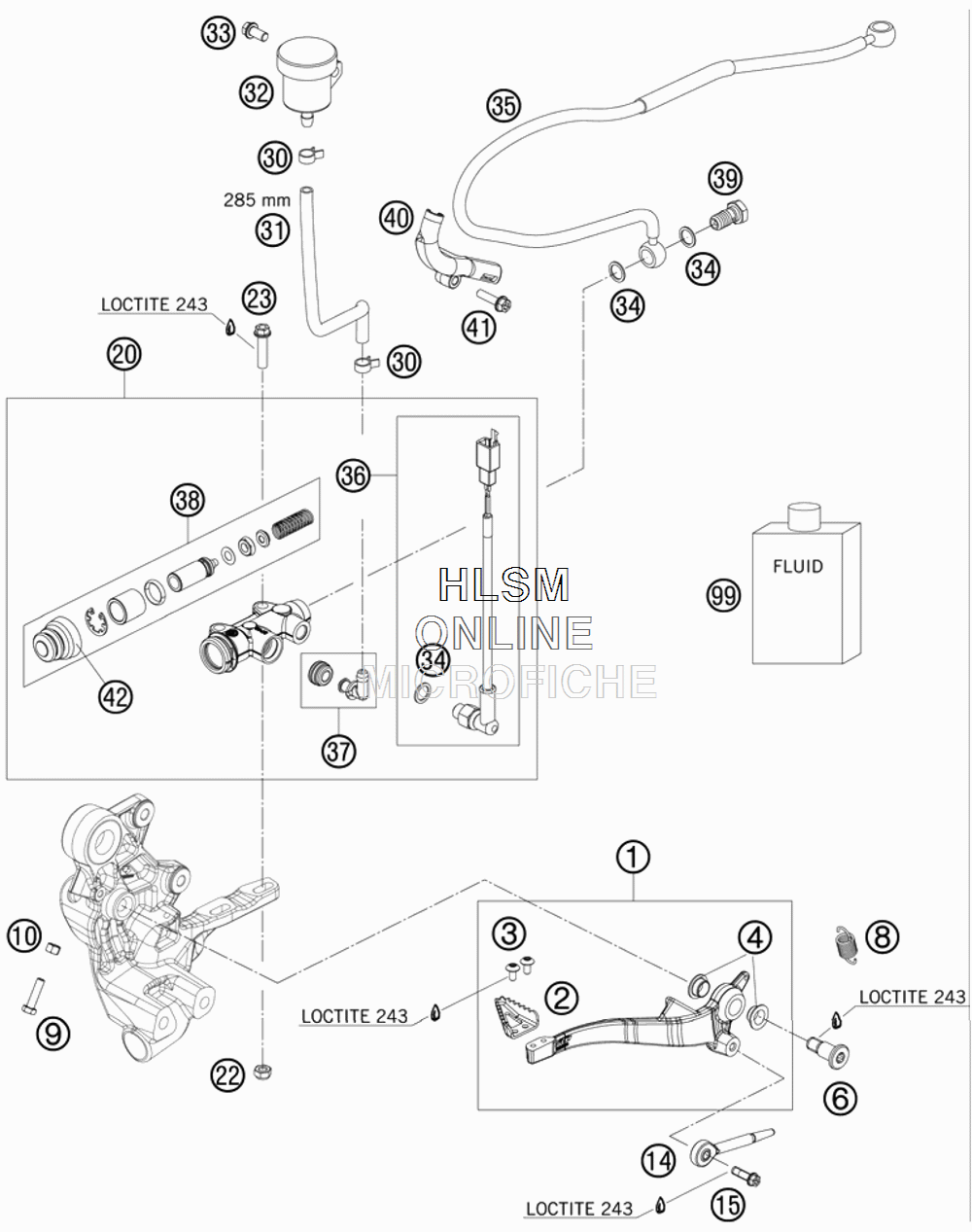

REAR BRAKE CONTROL для Ktm 690 ENDURO R - 2009 года выпуска

  • №
    Артикул
    Название
  • 1*
    76513050144 FOOT BR. LEVER + STEP PLATE 09
    FOOT BR. LEVER + STEP PLATE 09
  • 2
    60013051000 STEP PLATE FOOT BRAKE LEVER 03
    STEP PLATE FOOT BRAKE LEVER 03
  • 3
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 4*
    76513053000 SLIDE BEARING FOOT BRAKE LEVER
    SLIDE BEARING FOOT BRAKE LEVER
  • 6*
    76513057100 SPECIAL SCREW M10 LH PRECOTE
    SPECIAL SCREW M10 LH PRECOTE
  • 8
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 9
    0933050203 HH SCREW DIN933 M5X20
    HH SCREW DIN933 M5X20
  • 10
    0934050003 HEXAGON NUT DIN0934-M 5
    HEXAGON NUT DIN0934-M 5
  • 14
    76513056000 PUSH ROD
    PUSH ROD
  • 15
    0025060206S HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 20
    76513060000 FOOT BRAKE CYLINDER 13MM
    FOOT BRAKE CYLINDER 13MM
  • 22
    0926060000 STOP NUT M6 DIN6926 A2-70
    STOP NUT M6 DIN6926 A2-70
  • 23
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 30
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 31
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 32
    54513030044 BRAKE FLUID RESERVOIR
    BRAKE FLUID RESERVOIR
  • 33
    0024060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
  • 34
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 35
    76513072000 BRAKE HOSE REAR 805MM
    BRAKE HOSE REAR 805MM
  • 36
    76511051000 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 37
    54513155000 ANGLE PIECE
    ANGLE PIECE
  • 38
    76513061000 REPAIR KIT PISTON 13MM
    REPAIR KIT PISTON 13MM
  • 39
    54813020100 HOLLOW SCREW BLACK M10X1X19
    HOLLOW SCREW BLACK M10X1X19
  • 40
    76513047000 BRACKET FOR BRAKE HOSE
    BRACKET FOR BRAKE HOSE
  • 41
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 42
    54513151000 RUBBER SLEEVE
    RUBBER SLEEVE
  • 99
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
